R-DCA-06-25
5010445771088
Define product parameters:
Unit pack
100.00 pcs.0.66 kg
Bulk pack
1000.00 pcs.6.69 kg
Pallet
36000.00 pcs.265.77 kg
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation

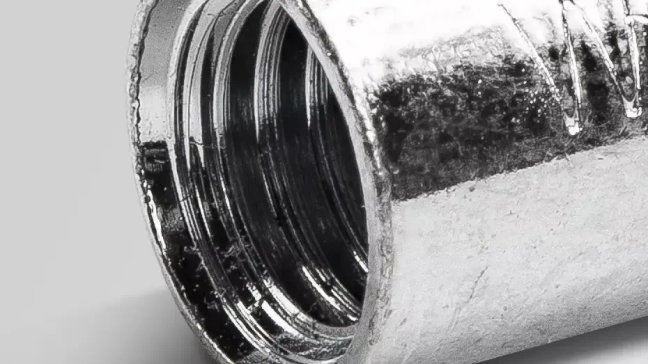

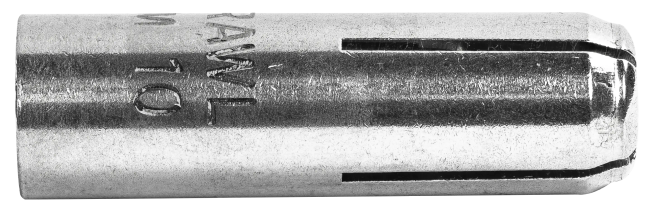

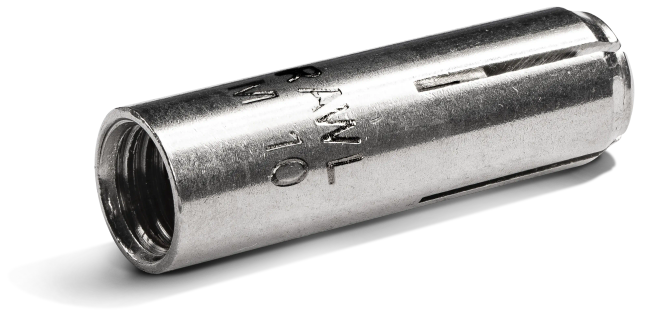

Internally threaded zinc plated wedge anchor
Approved surfaces
Length | Metric diameter | Coating | Type of package | Pieces. per pack. | Index | EAN | Catalog price for pack. net | |
|---|---|---|---|---|---|---|---|---|
| 30 mm | M8 | ZP - galvanized | Cardboard box | 100 | R-DCA-08-30 | 5010445771200 | €0.00 | Contact with us and check out our terms of cooperation |
| 40 mm | M10 | ZP - galvanized | Cardboard box | 50 | R-DCA-10-40 | 5906675151687 | €0.00 | Contact with us and check out our terms of cooperation |
| 50 mm | M12 | ZP - galvanized | Cardboard box | 50 | R-DCA-12-50 | 5906675152004 | €0.00 | Contact with us and check out our terms of cooperation |
| 65 mm | M16 | ZP - galvanized | Cardboard box | 25 | R-DCA-16-65 | 5010445771507 | €0.00 | Contact with us and check out our terms of cooperation |
| 25 mm | M6 | ZP - galvanized | Cardboard box | 100 | R-DCA-06-25 | 5010445771088 | €0.00 | Contact with us and check out our terms of cooperation |
| 80 mm | M20 | ZP - galvanized | Cardboard box | 15 | R-DCA-20-80 | 5010445002298 | €0.00 | Contact with us and check out our terms of cooperation |
| 40 mm | M10 | ZP - galvanized | Plastic bag | 50 | R-DCA-10-40-50B | 5906675439136 | €0.00 | Contact with us and check out our terms of cooperation |
| 25 mm | M6 | ZP - galvanized | Plastic bag | 100 | R-DCA-06-25-100B | 5906675441221 | €0.00 | Contact with us and check out our terms of cooperation |
| 65 mm | M16 | ZP - galvanized | Plastic bag | 1 | R-DCA-16-65-15B | 5906675438115 | €0.00 | Contact with us and check out our terms of cooperation |
| 50 mm | M12 | ZP - galvanized | Plastic bag | 30 | R-DCA-12-50-30B | 5906675438108 | €0.00 | Contact with us and check out our terms of cooperation |

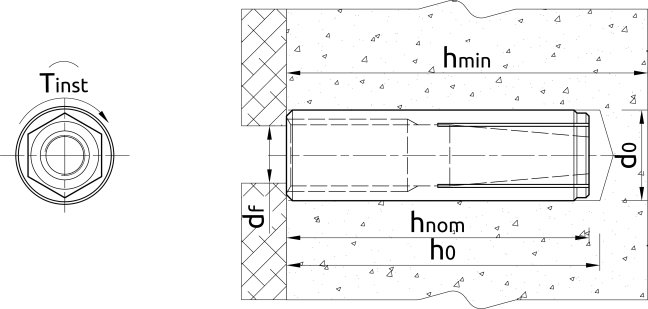

Drill the hole and clean it up.
Blow out dust at least 4 times with a hand pump.
Insert the anchor into the hole and hammer it in until it is flush with the substrate.
By striking the special hammer with the hammer, expand the anchor in the hole.

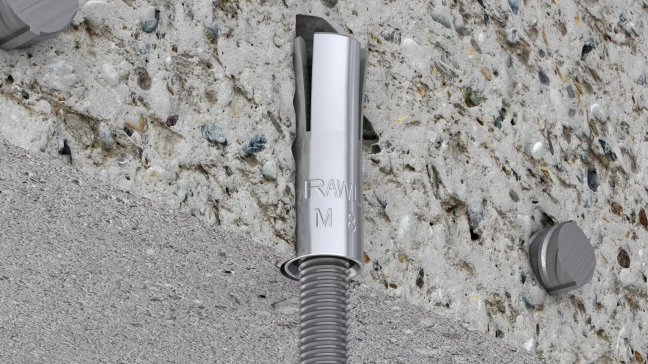

Place the element to be fastened, insert the screw or threaded rod and tighten to the required torque.
