  2. Galvanized wedge anchor with internal thread R-DCA M12 mm - plastic bag - 30 pcs.

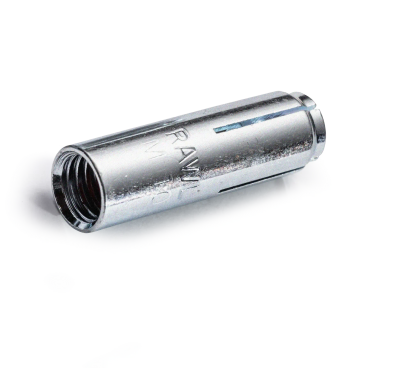

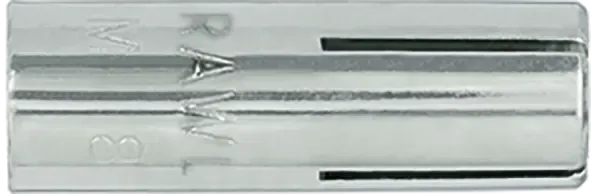

Galvanized wedge anchor with internal thread R-DCA M12 mm - plastic bag - 30 pcs.

Solid walls
OutletNew

R-DCA-12-50-30B

5906675438108

RawlplugRawl

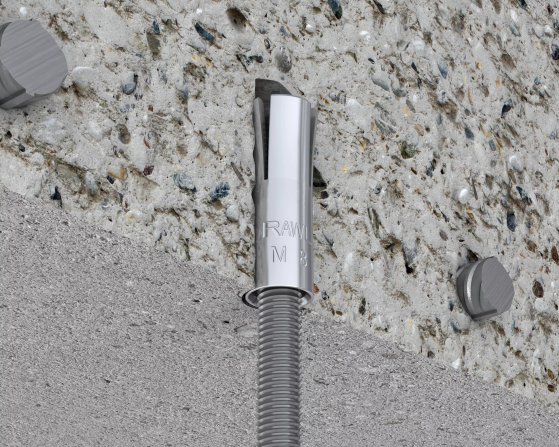

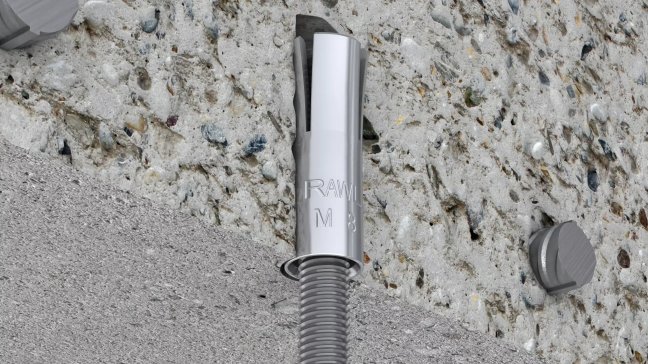

Internally threaded wedge anchor for simple hammer-set installation

Define product parameters:

Length
Metric diameter
Coating
Packaging and quantity

Related products

Pump for blowing drill cuttings - plastic bag - 1 pc.

Manual blow pump for cleaning dust from drilled holes

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

Rebardrill SDS Plus drill bits 15x100x160 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Aggressor SDS Plus drill bits 15x100x160 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, without batteries and RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

Drill bit with a limiter SDS Plus 15x52x160 mm for anchors with M12 internal thread - plastic hanger - 1 pc.

Drill bits SDS plus with collar for anchors with internal thread

Pump for blowing drill cuttings - plastic bag - 1 pc.

Manual blow pump for cleaning dust from drilled holes

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

Rebardrill SDS Plus drill bits 15x100x160 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Aggressor SDS Plus drill bits 15x100x160 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, without batteries and RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

Drill bit with a limiter SDS Plus 15x52x160 mm for anchors with M12 internal thread - plastic hanger - 1 pc.

Drill bits SDS plus with collar for anchors with internal thread

Features

Internally threaded wedge anchor for simple hammer-set installation

  • Product is covered with European Technical Assessment for multi-point non-structural fixings
  • Easy to install by hammer action and manual setting tool
  • Product was tested for construction fixing
  • High performance in cracked and non-cracked concrete confirmed by ETA
  • Product recommended for applications requiring fire resistance

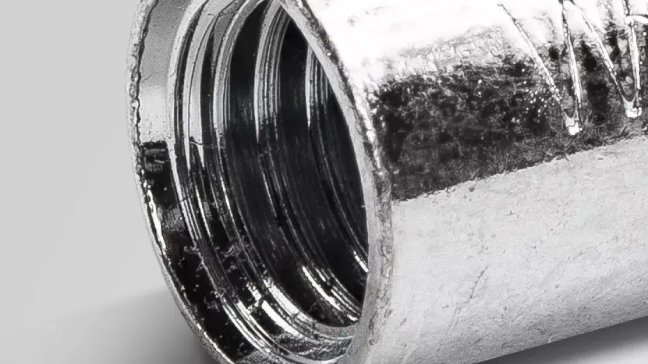

  • Internally threaded to be used with threaded stud or bolt

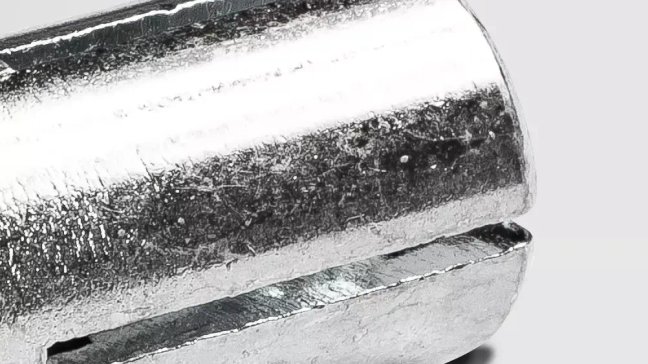

  • Slotted sleeve and internal wedge component together facilitate easy setting and expansion
  • Increased corrosion resistance due to the sealing process

Substrates

Cracked concrete C20/25-C50/60

Cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Unreinforced concrete

Unreinforced concrete

Reinforced concrete

Reinforced concrete

Approved surfaces

Applications

Air conditioning / ventilation

Electrical Installations

Pipelines

Sprinkler installations

Steel structures

Substitutes

Galvanized wedge anchor with internal thread R-DCA M12 mm - cardboard box - 50 pcs.

Internally threaded wedge anchor for simple hammer-set installation

Galvanized wedge anchor with internal thread R-DCA M12 mm - plastic bag - 30 pcs.

Internally threaded wedge anchor for simple hammer-set installation

Galvanized wedge anchor with internal thread and collar R-DCL M12x25 mm - cardboard box - 50 pcs.

Internally threaded wedge anchor with lip for simple hammer-set installation

Galvanized wedge anchor with internal thread R-DCA M12 mm - cardboard box - 50 pcs.

Internally threaded wedge anchor for simple hammer-set installation

Galvanized wedge anchor with internal thread R-DCA M12 mm - plastic bag - 30 pcs.

Internally threaded wedge anchor for simple hammer-set installation

Galvanized wedge anchor with internal thread and collar R-DCL M12x25 mm - cardboard box - 50 pcs.

Internally threaded wedge anchor with lip for simple hammer-set installation

Services

Design Consulting

Design Consulting

Technical Support 2

Technical Support 2

Rawlplug Academy

Rawlplug Academy

E-learning training

E-learning training

Learn more

Installation guide

Installation manual

Installation step by step

1

Drill the hole and clean it up.

2

Blow out dust at least 4 times with a hand pump.

3

Włożyć kotwę do otworu i dobić ją młotkiem aż do zrównania z podłożem

4

Uderzając młotkiem w specjalny pobijak rozprężyć kotwę w otworze

5

Przyłożyć element mocowany, wprowadzić śrubę lub pręt gwintowany i dokręcić z wymaganym momentem obrotowym

Installation data
