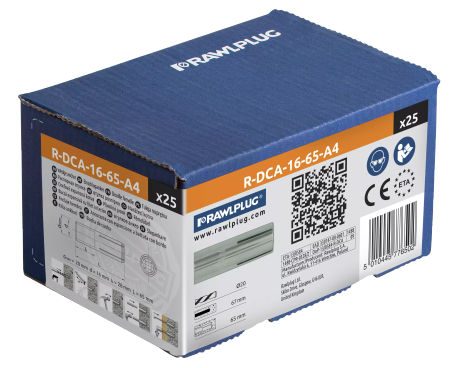

  2. Stainless wedge anchor with internal thread R-DCA-A4 M16 mm - cardboard box - 25 pcs.

Stainless wedge anchor with internal thread R-DCA-A4 M16 mm - cardboard box - 25 pcs.

Solid walls

R-DCA-16-65-A4

5010445776502

RawlplugRawl

Internally threaded stainless steel wedge anchor

Download model Perform the calculations

Define product parameters:

Length
Metric diameter
Coating
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    25.00 pcs.2.70 kg

  • Bulk pack

    200.00 pcs.21.60 kg

  • Pallet

    8400.00 pcs.932.20 kg

Features

Internally threaded stainless steel wedge anchor

  • Product is covered with European Technical Assessment for multi-point non-structural fixings.
  • Stainless steel material for high resistance to corrosion.
  • Easy to install by hammer action and manual setting tool.
  • Product was tested for construction fixing.
  • High performance in cracked and non-cracked concrete confirmed by ETA.
  • Product recommended for applications requiring fire resistance.
  • Slotted sleeve and internal wedge component together facilitate easy setting and expansion.

Substrates

Cracked concrete C20/25-C50/60

Cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Unreinforced concrete

Unreinforced concrete

Reinforced concrete

Reinforced concrete

Approved surfaces

Applications

Air conditioning / ventilation

Electrical Installations

Pipelines

Sprinkler installations

Steel structures

Full list of variations

Substitutes

R-DCL Lipped Drop-In Anchor M16 x 25mm - cardboard box - 25 pcs.

Internally threaded zinc plated lipped wedge anchor

R-DCL Lipped Drop-In Anchor M16 x 25mm - cardboard box - 25 pcs.

Internally threaded zinc plated lipped wedge anchor

Services

Installation guide

Installation manual

Installation step by step

1

Drill the hole and clean it up.

2

Blow out dust at least 4 times with a hand pump.

3

Insert the anchor into the hole and hammer it in until it is flush with the substrate.

4

By striking the special hammer with the hammer, expand the anchor in the hole.

5

Place the element to be fastened, insert the screw or threaded rod and tighten to the required torque.

Installation data

Approvals and publications

Technical library

(8)

Technical assessments(3)

ETA-13/0584

Fasteners for use in concrete for redundant non-structural applications

Download

KOT-2017/0165

ITB-KOT-2017/0165w3

Download

UKTA-22/6371

UKTA-22/6371

Download
Declarations(3)

DoP-13/0584 R-DCA-A4

Download

KDWU-2017-0165-R-DCA

Download

UKTA-DoP-22/6371-R-DCA-A4

Download
Certificates(2)

1488-CPR-0328/Z

CPR

Download

020_UWB_2994_W

020-UWB-2994/W

Download
