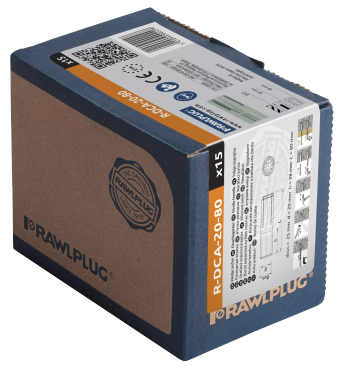

  2. Galvanized wedge anchor with internal thread R-DCA M20 mm - cardboard box - 15 pcs.

Galvanized wedge anchor with internal thread R-DCA M20 mm - cardboard box - 15 pcs.

Solid walls

R-DCA-20-80

5010445002298

RawlplugRawl

Internally threaded wedge anchor for simple hammer-set installation

Define product parameters:

Length
Metric diameter
Coating
Packaging and quantity

Related products

Features

Internally threaded wedge anchor for simple hammer-set installation

  • Product is covered with European Technical Assessment for multi-point non-structural fixings
  • Easy to install by hammer action and manual setting tool
  • Product was tested for construction fixing
  • High performance in cracked and non-cracked concrete confirmed by ETA
  • Product recommended for applications requiring fire resistance
  • Internally threaded to be used with threaded stud or bolt
  • Slotted sleeve and internal wedge component together facilitate easy setting and expansion

Substrates

Cracked concrete C20/25-C50/60

Cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Unreinforced concrete

Unreinforced concrete

Reinforced concrete

Reinforced concrete

Approved surfaces

Applications

Air conditioning / ventilation

Electrical Installations

Pipelines

Sprinkler installations

Steel structures

Services

Design Consulting

Design Consulting

Technical Support 2

Technical Support 2

Rawlplug Academy

Rawlplug Academy

E-learning training

E-learning training

Learn more

Installation guide

Installation manual

Installation step by step

1

Drill the hole and clean it up.

2

Blow out dust at least 4 times with a hand pump.

3

Włożyć kotwę do otworu i dobić ją młotkiem aż do zrównania z podłożem

4

Uderzając młotkiem w specjalny pobijak rozprężyć kotwę w otworze

5

Przyłożyć element mocowany, wprowadzić śrubę lub pręt gwintowany i dokręcić z wymaganym momentem obrotowym

Installation data

Approvals and publications

Technical library and approvals

Choose document:

ETA-13/0584

1488-CPR-0328/Z

DoP-13/0584-R-DCA

KOT-2017/0165

020-UWB-2994/W

KDWU-2017-0165-R-DCA

KDWU-2017-0165-1-R-DCA_OLD

UKTA-22/6371

UKTA-DoP-22/6371-R-DCA

Product card and catalogues

Choose product card:

Product cart

Choose product catalog:

Specification Design Guide

General catalogue - PDF
