  2. Galvanized wedge anchor with internal thread and collar R-DCL M10x40 mm - cardboard box - 50 pcs.

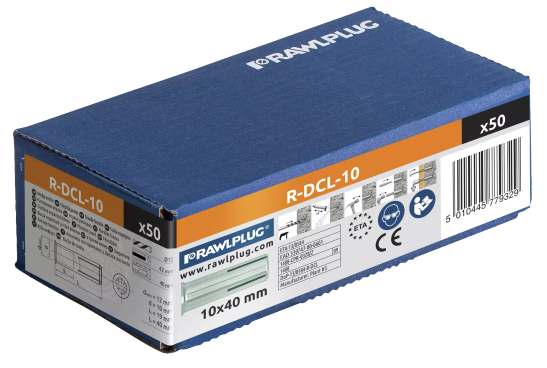

Galvanized wedge anchor with internal thread and collar R-DCL M10x40 mm - cardboard box - 50 pcs.

Solid walls

R-DCL-10

5010445779329

RawlplugRawl

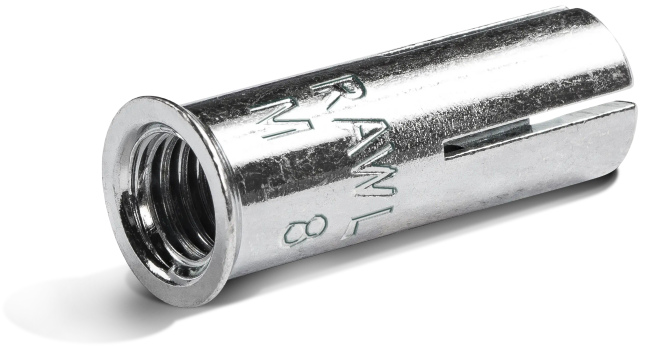

Internally threaded wedge anchor with lip for simple hammer-set installation

Define product parameters:

Length
Metric diameter
Coating
Packaging and quantity
Weight and bulk packaging
  • Unit Pack Quantity

    1.17

  • Bulk Pack Quantity

    14.334

Related products

Features

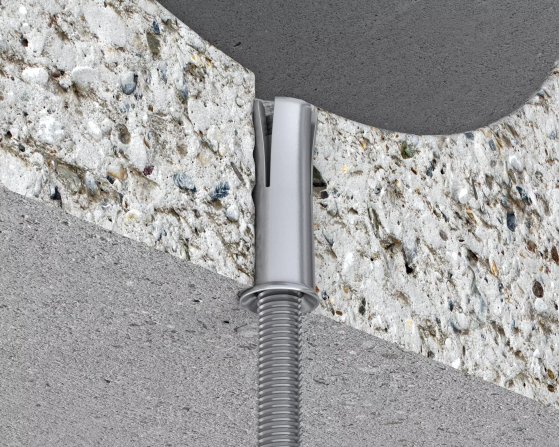

Internally threaded wedge anchor with lip for simple hammer-set installation

  • Product is covered with European Technical Assessment for multi-point non-structural fixings
  • Easy to install by hammer action and manual setting tool
  • High performance in cracked and non-cracked concrete confirmed by ETA
  • Product recommended for applications requiring fire resistance

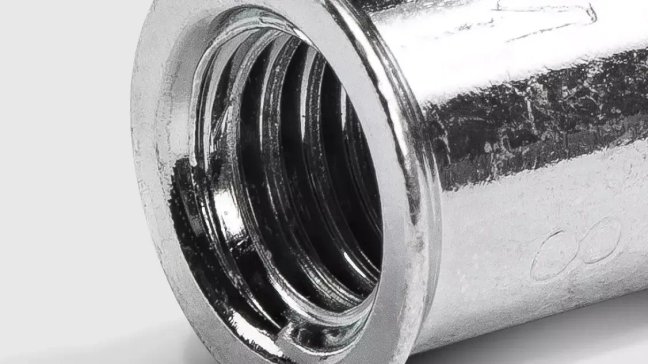

  • Internally threaded to be used with threaded stud or bolt

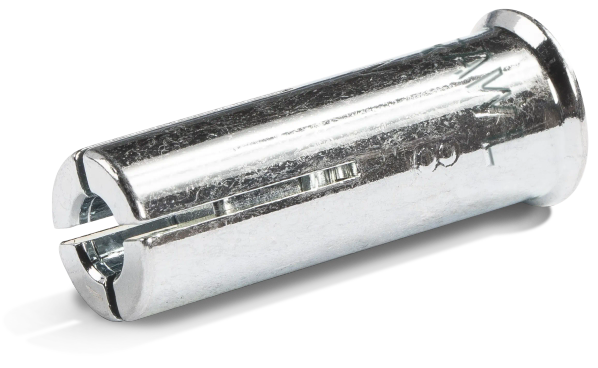

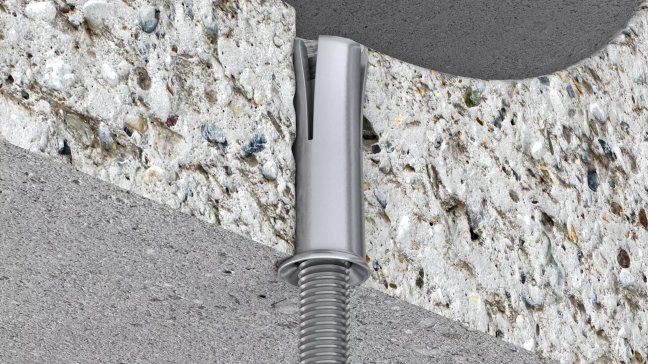

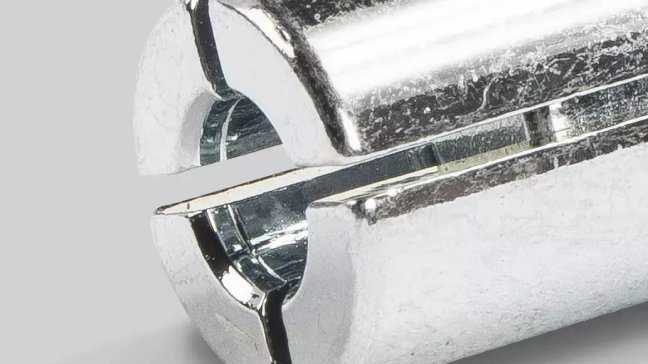

  • Slotted sleeve and internal wedge component together facilitate easy setting and expansion

Substrates

Cracked concrete C20/25-C50/60

Cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Unreinforced concrete

Unreinforced concrete

Reinforced concrete

Reinforced concrete

Approved surfaces

Applications

Air conditioning / ventilation

Electrical Installations

Pipelines

Sprinkler installations

Steel structures

Substitutes

Services

Design Consulting

Design Consulting

E-learning training

E-learning training

Learn more
Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

Designing

Designing

Installation guide

Installation manual

Installation step by step

1

Drill a hole of the required diameter and depth

2

Blow out dust at least 4 times with a hand pump.

3

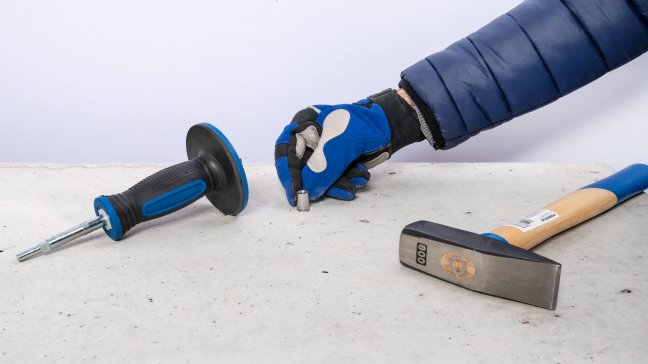

Insert the anchor into the hole and tap it with a hammer until it is flush with the ground

4

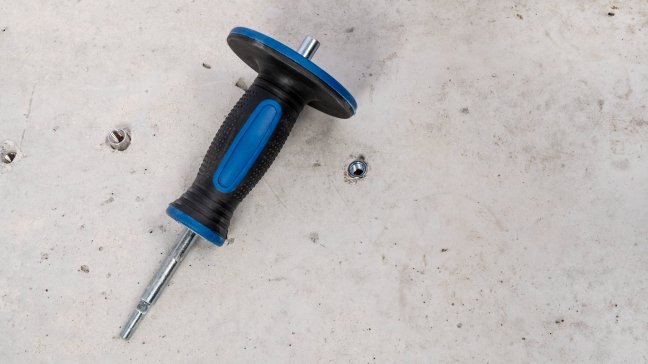

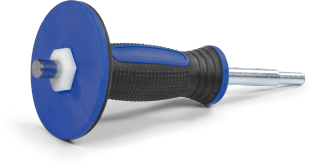

Press the anchor into the hole by hitting a special hammer with a hammer

5

Place the fastened element, insert the screw or threaded rod and tighten with the required torque

Installation data
