  1. Mainpage
  2. Galvanized wedge anchor with internal thread and collar R-DCL M10x25 mm - cardboard box - 50 pcs.

Solid walls
New

R-DCL-10-25

5906675397337

RawlplugRawl

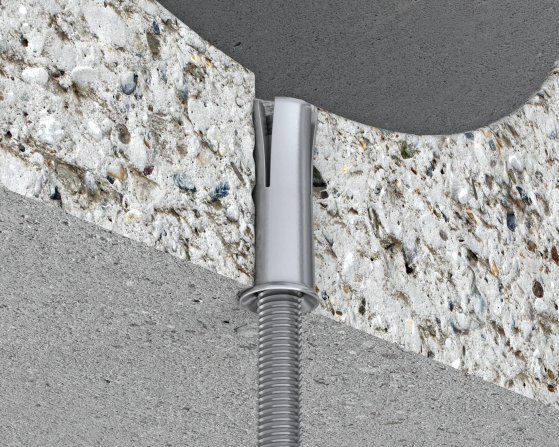

Internally threaded zinc plated lipped wedge anchor

Define product parameters:

Length
Metric diameter
Coating
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    50.00 pcs.0.72 kg

  • Bulk pack

    1000.00 pcs.14.40 kg

  • Pallet

    29000.00 pcs.442.60 kg

Related products

Pump for blowing drill cuttings - plastic bag - 1 pc.

Rawlplug SDS Plus Rebar Drill Bit 12 x 150 x 210mm, PGM Approved - plastic hanger - 1 pc.

Rawlplug SDS Plus Rebar Drill Bit 12 x 100 x 160mm, PGM Approved - plastic hanger - 1 pc.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

Aggressor SDS Plus drill bits 12x100x160 mm - plastic hanger - 1 pc.

Aggressor SDS Plus drill bits 12x150x210 mm - plastic hanger - 1 pc.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, without batteries and RawlCHARGER - plastic case - 1 pc.

Drill bit with a limiter SDS Plus 12x42x130 mm for anchors with M10 internal thread - plastic hanger - 1 pc.

Wedge anchor setting tools - R-DCA-ST-II M10x17 mm, I Generation - label - 1 pc.

Pump for blowing drill cuttings - plastic bag - 1 pc.

Rawlplug SDS Plus Rebar Drill Bit 12 x 150 x 210mm, PGM Approved - plastic hanger - 1 pc.

Rawlplug SDS Plus Rebar Drill Bit 12 x 100 x 160mm, PGM Approved - plastic hanger - 1 pc.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

Aggressor SDS Plus drill bits 12x100x160 mm - plastic hanger - 1 pc.

Aggressor SDS Plus drill bits 12x150x210 mm - plastic hanger - 1 pc.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, without batteries and RawlCHARGER - plastic case - 1 pc.

Drill bit with a limiter SDS Plus 12x42x130 mm for anchors with M10 internal thread - plastic hanger - 1 pc.

Wedge anchor setting tools - R-DCA-ST-II M10x17 mm, I Generation - label - 1 pc.

Features

Internally threaded zinc plated lipped wedge anchor

  • Product is covered with European Technical Assessment for multi-point non-structural fixings.
  • Easy to install by hammer action and manual setting tool.
  • High performance in cracked and non-cracked concrete confirmed by ETA.
  • Product recommended for applications requiring fire resistance.
  • Internally threaded to be used with threaded stud or bolt.
  • Slotted sleeve and internal wedge component together facilitate easy setting and expansion.
  • Increased corrosion resistance due to the sealing process.

Cracked concrete C20/25-C50/60

Cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Unreinforced concrete

Unreinforced concrete

Reinforced concrete

Reinforced concrete

Approved surfaces

Air conditioning / ventilation

Electrical Installations

Pipelines

Sprinkler installations

Steel structures

Length
Metric diameter
Coating
Packaging and quantity
Index
EAN
Catalog price for pack. net

Installation manual

Installation step by step

1

Drill a hole of the required diameter and depth

2

Blow out dust at least 4 times with a hand pump.

3

Insert the anchor into the hole and tap it with a hammer until it is flush with the ground

4

Press the anchor into the hole by hitting a special hammer with a hammer

5

Place the fastened element, insert the screw or threaded rod and tighten with the required torque

Installation data
