  2. R-DCL Lipped Drop-In Anchor M12 x 50mm - cardboard box - 50 pcs.

Solid walls

R-DCL-12

5010445779411

RawlplugRawl

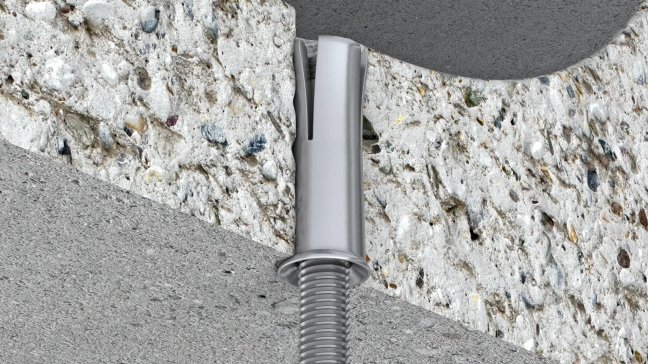

Internally threaded zinc plated lipped wedge anchor

Define product parameters:

Length
Metric diameter
Coating
Packaging and quantity
Weight and bulk packaging

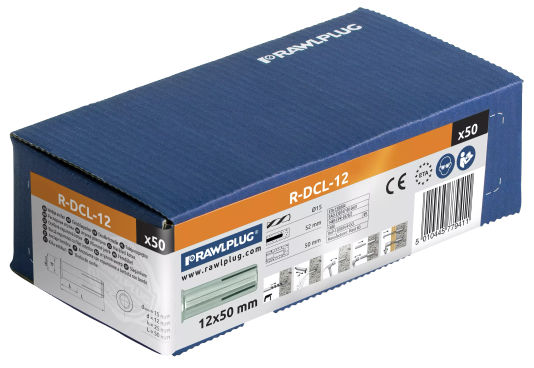

  • Unit pack

    50.00 pcs.2.33 kg

  • Bulk pack

    450.00 pcs.24.03 kg

  • Pallet

    25200.00 pcs.1370.68 kg

Related products

Pump for blowing drill cuttings - plastic bag - 1 pc.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

R-DCA-ST-II Manual Setting Tool For Drop-In Achors With Grip, M12 - label - 1 pc.

Rawlplug SDS Plus Rebar Drill Bit 15 x 100 x 160mm, PGM Approved - plastic hanger - 1 pc.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, without batteries and RawlCHARGER - plastic case - 1 pc.

Drill bit with a limiter SDS Plus 15x52x160 mm for anchors with M12 internal thread - plastic hanger - 1 pc.

Pump for blowing drill cuttings - plastic bag - 1 pc.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

R-DCA-ST-II Manual Setting Tool For Drop-In Achors With Grip, M12 - label - 1 pc.

Rawlplug SDS Plus Rebar Drill Bit 15 x 100 x 160mm, PGM Approved - plastic hanger - 1 pc.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, without batteries and RawlCHARGER - plastic case - 1 pc.

Drill bit with a limiter SDS Plus 15x52x160 mm for anchors with M12 internal thread - plastic hanger - 1 pc.

Features

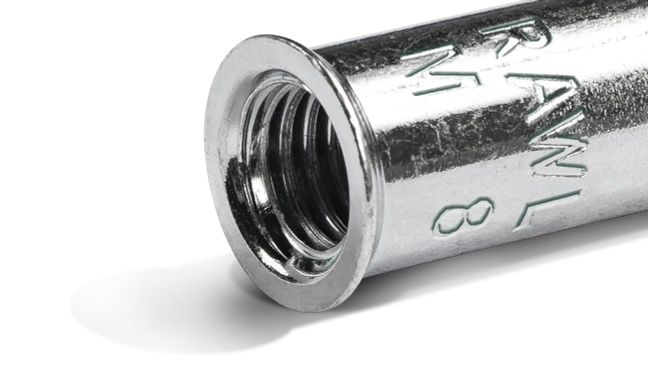

Internally threaded zinc plated lipped wedge anchor

  • Product is covered with European Technical Assessment for multi-point non-structural fixings.
  • Easy to install by hammer action and manual setting tool.
  • High performance in cracked and non-cracked concrete confirmed by ETA.
  • Product recommended for applications requiring fire resistance.
  • Internally threaded to be used with threaded stud or bolt.
  • Slotted sleeve and internal wedge component together facilitate easy setting and expansion.
  • Increased corrosion resistance due to the sealing process.

Cracked concrete C20/25-C50/60

Cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Unreinforced concrete

Unreinforced concrete

Reinforced concrete

Reinforced concrete

Approved surfaces

Air conditioning / ventilation

Electrical Installations

Pipelines

Sprinkler installations

Steel structures

Length
Metric diameter
Coating
Packaging and quantity
Index
EAN
Catalog price for pack. net

R-DCA Drop-In Anchor M12 x 50mm - cardboard box - 50 pcs.

Stainless wedge anchor with internal thread R-DCA-A4 M12 mm - cardboard box - 50 pcs.

R-DCA Drop-In Anchor M12 x 50mm - cardboard box - 50 pcs.

Stainless wedge anchor with internal thread R-DCA-A4 M12 mm - cardboard box - 50 pcs.

Installation manual

Installation step by step

1

Drill a hole of the required diameter and depth

2

Blow out dust at least 4 times with a hand pump.

3

Insert the anchor into the hole and tap it with a hammer until it is flush with the ground

4

Press the anchor into the hole by hitting a special hammer with a hammer

5

Place the fastened element, insert the screw or threaded rod and tighten with the required torque

Installation data

Technical library

(5)

Technical assessments(2)

ETA-13/0584

Download

UKTA-22/6371

Download
Declarations(2)

DoP-13/0584 R-DCL

Download

UKTA-DoP-22/6371-R-DCL

Download
Certificates(1)

1488-CPR-0328/Z

Download

Catalogues and product cards

(4)

Product cards(1)

Product card

Download
Catalogues(3)

Catalogue Offer (overview) - EN

Download

Specification Design Guide

Download

General Catalogue EN 2026/27

Download
