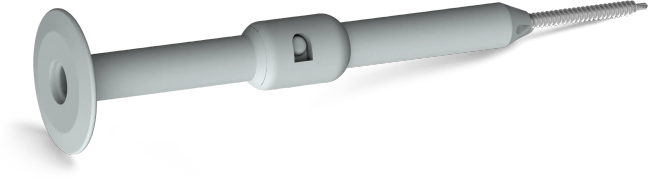

  2. Telescopic sleeve with round plate R-GOK-II 50x625 mm polyamide - cardboard box - 50 pcs.

Universal
New

R-GOK-II-625-N

5906675529820

Telescopic sleeve for flat roof insulation fixings

Download model Perform the calculations

Define product parameters:

Length
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    50.00 pcs.4.66 kg

  • Bulk pack

    50.00 pcs.4.66 kg

  • Pallet

    600.00 pcs.55.92 kg

Related products

R-POK Round Steel Flange, 7.0 x 76mm With Aluminum-Zinc Coating - cardboard box - 100 pcs.

Round steel flange R-POK 40x6.5 mm with aluminum-zinc coating - cardboard box - 100 pcs.

R-POW Oval Steel Flange, 7.0 x 40 x 80mm With Aluminum-Zinc Coating - cardboard box - 100 pcs.

R-WX-T Self-Drilling Screws for Steel, T25 4.8 x 80mm, Zinc Flake - cardboard box - 250 pcs.

Torx25 long bits, 200 mm - blister - 1 pc.

R-WBT Screws for Concrete, 6.1 x 140mm, Zinc Flake, T25 - cardboard box - 100 pcs.

R-WBT Screws for Concrete, 6.1 x 120mm, Zinc Flake, T25 - cardboard box - 100 pcs.

Rebardrill SDS Plus drill bits 5x300x360 mm - plastic hanger - 1 pc.

Torx25 long bits 100 mm - blister - 1 pc.

R-WBT Screws for Concrete, 6.1 x 100mm, Zinc Flake, T25 - cardboard box - 100 pcs.

Torx25 long bits, 150 mm - blister - 1 pc.

Rebardrill SDS Plus drill bits 5x150x210 mm - plastic hanger - 1 pc.

R-POK Round Steel Flange, 7.0 x 76mm With Aluminum-Zinc Coating - cardboard box - 100 pcs.

Round steel flange R-POK 40x6.5 mm with aluminum-zinc coating - cardboard box - 100 pcs.

R-POW Oval Steel Flange, 7.0 x 40 x 80mm With Aluminum-Zinc Coating - cardboard box - 100 pcs.

R-WX-T Self-Drilling Screws for Steel, T25 4.8 x 80mm, Zinc Flake - cardboard box - 250 pcs.

Torx25 long bits, 200 mm - blister - 1 pc.

R-WBT Screws for Concrete, 6.1 x 140mm, Zinc Flake, T25 - cardboard box - 100 pcs.

R-WBT Screws for Concrete, 6.1 x 120mm, Zinc Flake, T25 - cardboard box - 100 pcs.

Rebardrill SDS Plus drill bits 5x300x360 mm - plastic hanger - 1 pc.

Torx25 long bits 100 mm - blister - 1 pc.

R-WBT Screws for Concrete, 6.1 x 100mm, Zinc Flake, T25 - cardboard box - 100 pcs.

Torx25 long bits, 150 mm - blister - 1 pc.

Rebardrill SDS Plus drill bits 5x150x210 mm - plastic hanger - 1 pc.

Features

Telescopic sleeve for flat roof insulation fixings

  • High impact - resistant material used ensures constant mechanical properties over the lifetime of a roof. Also, retains its properties over a wide temperature range.
  • Should be used with combination of any Rawlplug roofing screws: R-WBT to concrete, R-WX/WO to steel sheat, R-WW to wood.

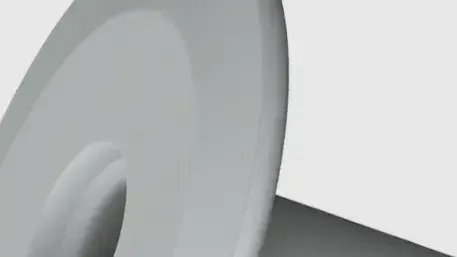

  • The lenticular shape of the plate ensures a firm pressure on the membrane and no possibility of dragging and deforming the plate during assembly.
  • Internal sleeve design allows pre-assembly with any Rawlplug roofing screw, shortening installation.
  • The lower part of the connector telescope has been designed in the shape of a cone with an optimum angle of inclination which significantly affects the speed of its installation.
  • Guarantees the highest load capacity of the roof construction for both static and dynamic loads in accordance with ETAG006.
  • The reduced diameter makes it easier to pierce the membrane and install in dense materials such as PIR / PUR and mineral wool.

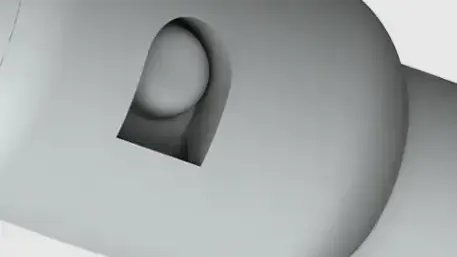

  • Pre-assembled sleeve with a screw shortens the assembly time, additionally it has a security in the form of a locking O-ring, which prevents the screw from slipping out.
  • The engraving on the plate reduces the effect of the notch and crack propagation (spreading of damage in the material subjected to stress).

Krok_po_kroku_jak_zamocowac_izolacje_dachu_plaskiego_za_pomoca_tulei_teleskopowych

Concrete

Concrete

Reinforced concrete

Reinforced concrete

Concrete slab

Concrete slab

Hollow-core slab

Hollow-core slab

Metal sheet & profiles

Metal sheet & profiles

Timber

Timber

Oriented strand board

Oriented strand board

Chipboard

Chipboard

Light wood wool boards

Light wood wool boards

Fiber cement boards

Fiber cement boards

Hollow core roof plate

Hollow core roof plate

Approved surfaces

Flat roofs

Length
Packaging and quantity
Index
EAN
Catalog price for pack. net

Installation manual

Installation step by step

1

Place the plastic sleeve R-GOK-II with the R-WX screw in the insulating material.

2

Using a driver, screw in the R-GOK-II connector with the R-WX screw until the appropriate depth is achieved.

3

Properly mounted sleeve R-GOK-II with R-WX screw.

4

Drill the hole in concrete of required diameter and depth.

5

Place the plastic sleeve R-GOK-II with the R-WBT screw in the insulating material.

6

Using a driver, screw in the R-GOK-II connector with the R-WBT screw until the appropriate depth is achieved.

7

Properly mounted sleeve R-GOK-II with R-WBT screw.

8

Place the plastic sleeve R-GOK-II with the R-WO screw in the insulating material.

9

Using a driver, screw in the R-GOK-II connector with the R-WO screw until the appropriate depth is achieved.

10

Properly mounted sleeve R-GOK-II with R-WO screw.
