Anchor for suspended ceilings R-GS 6x45 mm - cardboard box - 100 pcs.

Solid walls

R-GS-06065

5906675158105

Rawlplug

Ceiling wire hanger for lightweight ceilings and suspended ceilings to solid building materials

Define product parameters:

Diameter
Length
Packaging and quantity

Related products

Features

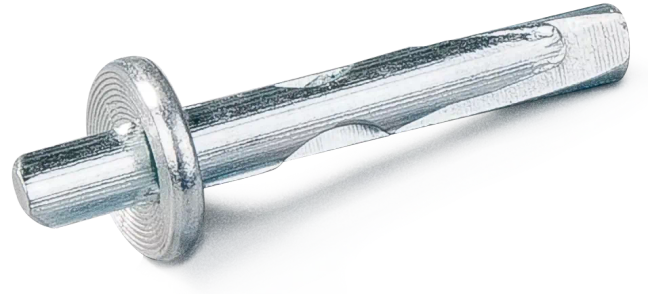

Ceiling wire hanger for lightweight ceilings and suspended ceilings to solid building materials

  • Reliable setting thanks to the simple visual check
  • Fire resistance class A1
  • Impact expansion by hammer, no setting tool is needed
  • During installation, when the nail is flush with the head, it signifies the complete expansion of the anchor
  • Approved for installation in cracked and non-cracket concrete.
  • Steel body and pin ensure positive expansion and high safety in use

Substrates

Cracked concrete C20/25-C50/60

Cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Approved surfaces

Applications

Air conditioning / ventilation

Pitched roofs

Plasterboard systems

Plinths and finishing profiles

Sanitary and gas installations

Suspended Ceilings

Substitutes

Services

Design Consulting

Design Consulting

E-learning training

E-learning training

Learn more
Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

Technical Support 2

Technical Support 2

Installation guide

Installation manual

Installation step by step

1

Drill a hole of required diameter and depth.

2

Insert anchor through fixture into the hole until fixing depth is reached.

3

Hammer - in the nail until flush with head.

4

GS anchor is correctly installed.

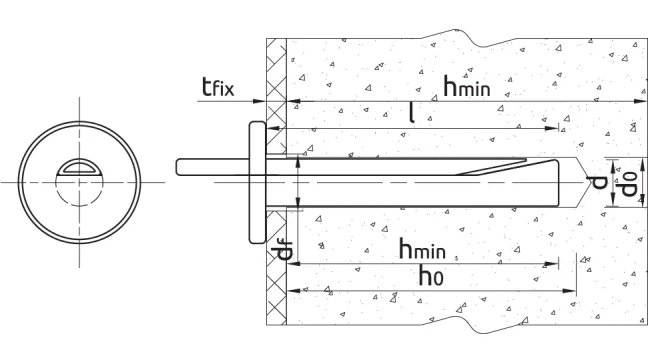

Installation data

Approvals and publications

Technical library and approvals

Choose document:

ETA-11/0268

1488-CPR-0468/Z

DoP-11/0268-R-GS

UKTA-22/6289

UKTA-DoP-22/6289-R-GS

Product card and catalogues

Choose product card:

Product card

Choose product catalog:

Specification Design Guide

General catalogue - PDF
