Hammer-In vinylester anchor in an ampoule R-HAC-V M16mm - cardboard box - 10 pcs.
Solid walls
Outlet
R-HAC-V-16
5906675379937
Define product parameters:
Metric diameter
Packaging and quantity
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation
Related products
Features

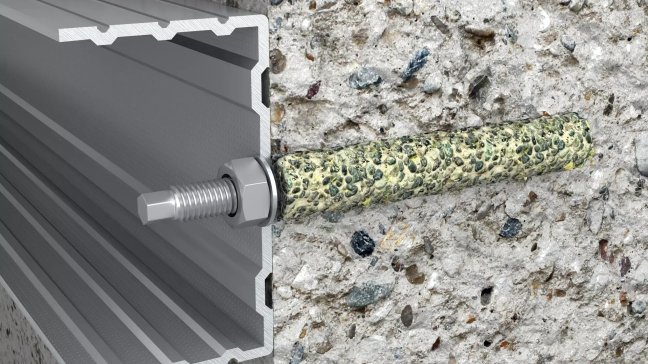

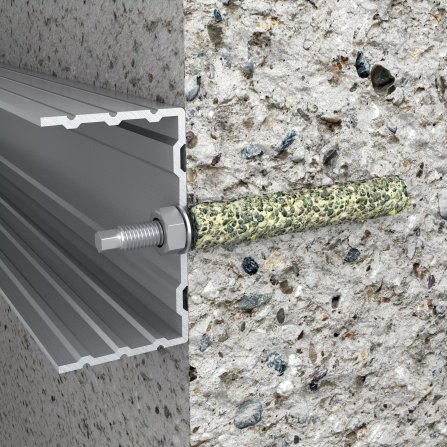

Bonded hammer-in anchor based on vinylester resin in an ampoule for concrete, set
- Styrene free - virtually odourless
- The system relies on the adhesion between the concrete and resin, which is free from expansion forces. This makes it an ideal choice where close edge and spacing distances are required
- Capsule contains precise amounts of ingredients making it a very consistent product
- High performance anchor, for use in safety critical applications
- Suitable for dry or wet non-cracked concrete
- Ideal for starter bar applications
- Approved for use with threaded rods in non-cracked concrete (ETAG001 Option 7)
- Approved for use with rebar in non-cracked concrete (ETAG001 Option 7)
- Low cost tooling required for installation, quick and easy to install
- Adhesive bond strength is not affected by unpolluted water
Product video
Rawlplug R-HAC-V Hammer-In Vinylester Capsule Resin
Substrates
Approved surfaces
Applications
Services
Design Consulting
EasyFix
Technical Support 2
Training at the Rawlplug Academy center
Installation guide
Installation manual
Installation step by step
1
Drill a hole to the required diameter and depth for rebar size being used.
2
Clean drilled hole 4 times.
3
Remove drill cuttings from the hole using the hand pump four times. These are necessary pre-installation steps.
4
Clean drilled hole 4 times.
5

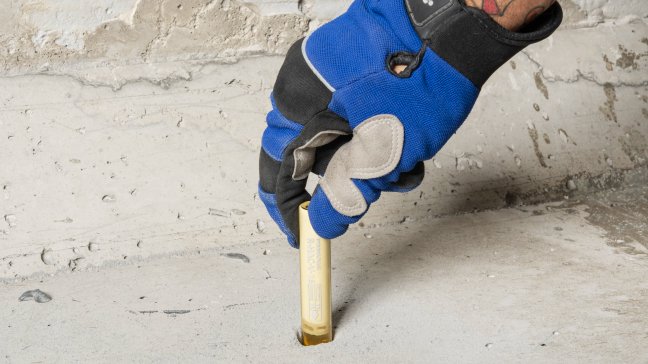

Insert capsule into the hole.
6
Contact the rebar with the ampoule, then hammer in the bar with a hammer.
7
Leave the anchor undisturbed unitl the curing time elapses.
8
Chemical anchor with rebar properly installed.
