  2. Zinc plated internally threaded M8/M10 concrete screw anchor R-HLX-I-ZP 6x55 mm - cardboard box - 100 pcs.

Zinc plated internally threaded M8/M10 concrete screw anchor R-HLX-I-ZP 6x55 mm - cardboard box - 100 pcs.

Solid walls
New

R-HLX-06X55-I8/10Z

5906675557236

Hardened induction concrete screw with internal threaded head

Define product parameters:

Diameter
Length
Coating
Thread
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    100.00 pcs.3.16 kg

  • Bulk pack

    100.00 pcs.3.16 kg

  • Pallet

    25600.00 pcs.808.96 kg

Features

Hardened induction concrete screw with internal threaded head

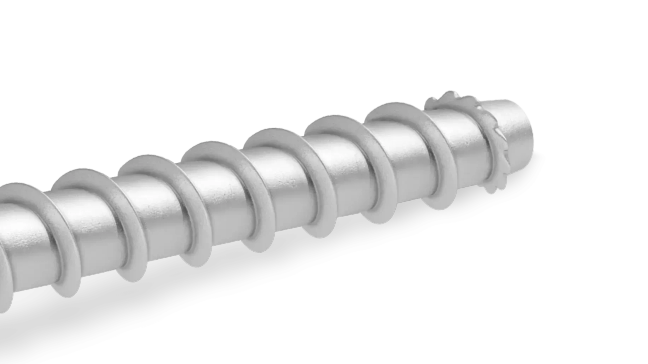

  • The new thread geometry with additional cutting teeth ensures quick and easy installation, also in reinforced concrete C20/25 - C50/60.
  • Fire resistance R30-R120.
  • R-HLX concrete screws can be used in earthquake-prone zones - seismic category C1 and C2.

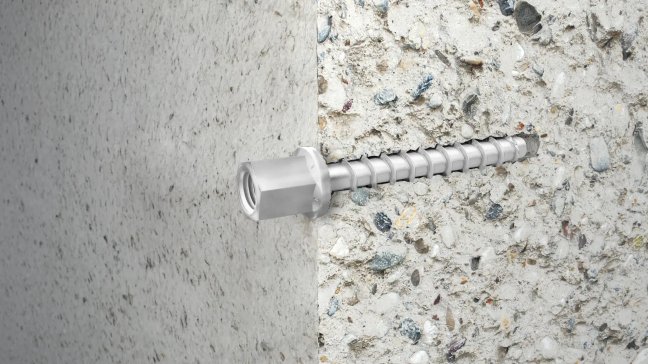

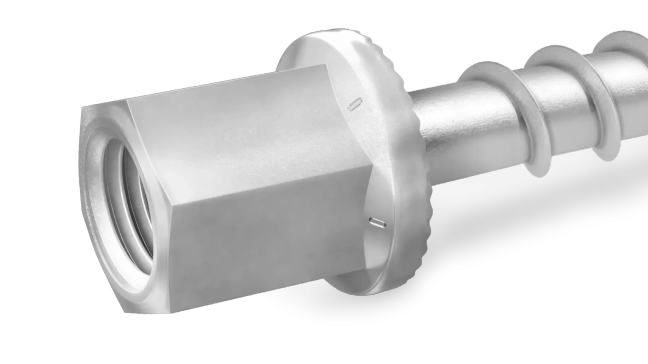

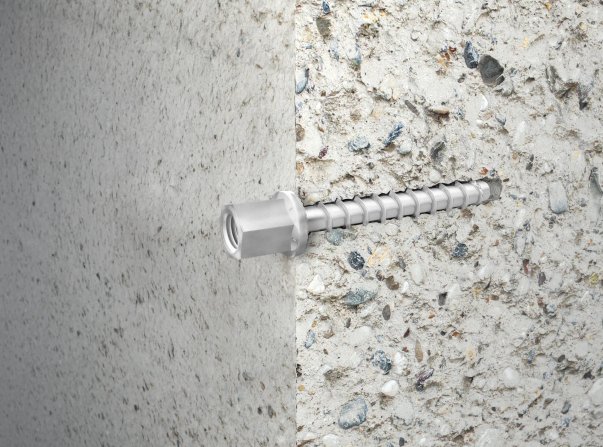

  • The internal thread allows for the use of standard metric screws or threaded rods, and for surface flush removal and reuse of the fixing point. This provides great flexibility.
  • Possibility of installation near the edge of concrete and at short distances from adjacent screws.
  • Polish production guarantees the highest precision of workmanship and its repeatability.
  • Possibility of disassembly and repeated use after verifying thread wear with a tester.
  • The highest parameters in cracked and uncracked concrete C20/25 - C50/60 confirmed in the ETA.
  • Induction hardening ensures high surface hardness and high core impact strength.

Product video

R-HLX High performed screwbolt

Innowacyjny_wkret_do_betonu_hartowany_indukcyjnie_RHLX_Rawlplug_KROTKI

Rawlplug Academy: czym jest i jak działa kotwa mechaniczna?

Substrates

Cracked concrete C20/25-C50/60

Cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Unreinforced concrete

Unreinforced concrete

Reinforced concrete

Reinforced concrete

Hollow-core slab C30/37-C50/60

Hollow-core slab C30/37-C50/60

High-density natural stone

High-density natural stone

Approved surfaces

Applications

Balustrades

Formwork

Gates

Scaffolding

Seats in public facilities

Storage racks

Temporary fixings

Full list of variations

Diameter
Length
Coating
Thread
Packaging and quantity
Index
EAN
Catalog price for pack. net

Substitutes

Zinc plated internally threaded M8/M10 concrete screw anchor R-HLX-I-ZP 6x35 mm - cardboard box - 100 pcs.

Hardened induction concrete screw with internal threaded head

Zinc plated internally threaded M8 concrete screw anchor R-HLX-I-ZP 6x40 mm - cardboard box - 100 pcs.

Hardened induction concrete screw with internal threaded head

Zinc plated internally threaded M10 concrete screw anchor R-HLX-I-ZP 6x40 mm - cardboard box - 100 pcs.

Hardened induction concrete screw with internal threaded head

Zinc plated internally threaded M8 concrete screw anchor R-HLX-I-ZP 6x55 mm - cardboard box - 100 pcs.

Hardened induction concrete screw with internal threaded head

Zinc plated internally threaded M10 concrete screw anchor R-LX-I-ZP 6x55 mm - cardboard box - 100 pcs.

Hardened induction concrete screw with internal threaded head

Zinc plated internally threaded M8/M10 concrete screw anchor R-HLX-I-ZP 6x35 mm - cardboard box - 100 pcs.

Hardened induction concrete screw with internal threaded head

Zinc plated internally threaded M8 concrete screw anchor R-HLX-I-ZP 6x40 mm - cardboard box - 100 pcs.

Hardened induction concrete screw with internal threaded head

Zinc plated internally threaded M10 concrete screw anchor R-HLX-I-ZP 6x40 mm - cardboard box - 100 pcs.

Hardened induction concrete screw with internal threaded head

Zinc plated internally threaded M8 concrete screw anchor R-HLX-I-ZP 6x55 mm - cardboard box - 100 pcs.

Hardened induction concrete screw with internal threaded head

Zinc plated internally threaded M10 concrete screw anchor R-LX-I-ZP 6x55 mm - cardboard box - 100 pcs.

Hardened induction concrete screw with internal threaded head

Services

Installation guide

Installation manual

Installation step by step

1

Drill the hole with a hammer drill (1a) ) to the required depth according to the table

2

Clean the hole (blow dust at least 4 times with the hand pump). When using a dust-free drill bit (1b), it is not necessary to clean the hole..

3

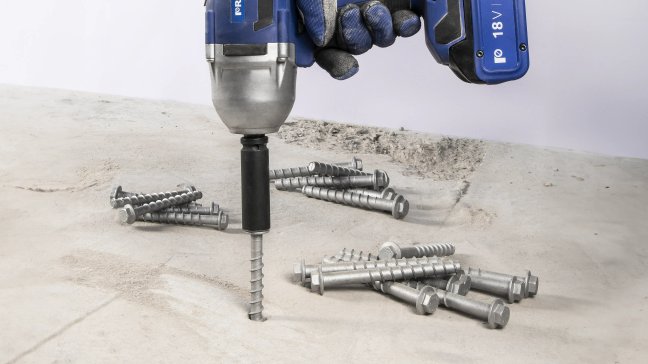

Screw the concrete screw into the hole using an impact wrench and the appropriate impact socket.

Installation data

Approvals and publications

Technical library

(8)

Technical assessments(2)

ETA-23/0707 (2025-01-24) - Cracked and uncracked concrete

R-HLX - Concrete screw for use in cracked and uncracked concrete

Download

ETA-24/1104 (2025-06-03) - Non-structural systems

Concrete screw for use in concrete for redundant non-structural systems

Download
Declarations(2)

DoP-23/0707 R-HLX (ETA-23/0707)

DoP-23/0707 R-HLX (ETA-23/0707 - 2025-01-24) - Concrete screw for use in cracked and uncracked concrete

Download

DoP-24/1104-R-HLX (ETA-24/1104 - Non-structural systems)

R-HLX - Cpncrete screw for use in concrete for redundant non-structural systems.

Download
Certificates(3)

1488-CPR-1100/W (ETA-23/0707)

CPR (ETA-23/0707 - 2025-01-24) - Concrete screw for use in cracked and uncracked concrete

Download

1488-CPR-0745/Z (ETA-24/1104 - Non-structural systems)

CPR - ETA-24/1104 (2025-06-03) - Non-structural systems

Download

EPD-R-HLX (2025-11-27)

Type III Environmental Declaration Certificate

Download
Documents(1)

VDS CEA 4001 (2025-03-05)

Pipe hanger components for automatic sprinkler systems

Download
