  2. Stainless steel A4 throughbolt R-HPTIIA4 12x125 mm - cardboard box - 50 pcs.

Solid walls
Outlet

R-HPTIIA4-12125/30

5906675046563

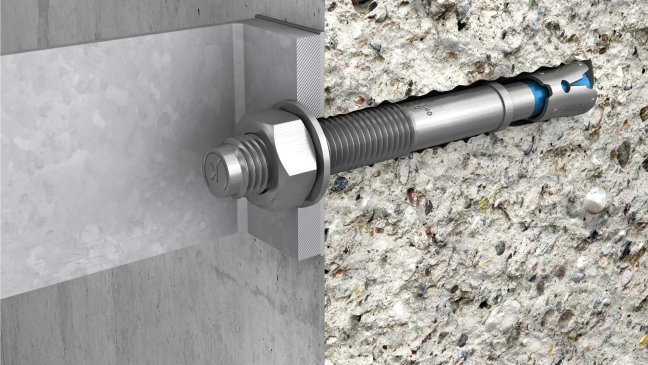

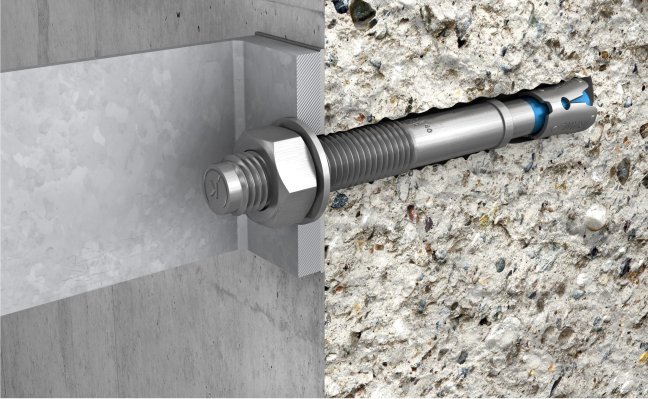

Stainless steel throughbolt anchor for cracked and non-cracked concrete

Download model Perform the calculations

Define product parameters:

Diameter
Length
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    50.00 pcs.5.77 kg

  • Bulk pack

    50.00 pcs.5.77 kg

  • Pallet

    6000.00 pcs.691.92 kg

Features

Stainless steel throughbolt anchor for cracked and non-cracked concrete

  • Stainless steel anchor for the highest corrosion resistance.
  • High performance in cracked and non-cracked concrete confirmed by ETA Option 1.
  • Highest quality ensures maximum load capability.
  • For applications requiring fire resistance up to 120 minutes.
  • Suitable for reduced embedment to avoid contact with reinforcement.
  • Embedment depth markings help to ensure precise installation of the anchor.
  • Design of R-HPTII allows drilling and installing directly through the fixture and helps to reduce installation time.
  • Suitable for installation in corrosive environments category C1, C2, C3,C4 and C5.
  • Anchors can be used in earthquake risk zones - seismic category C1 and C2.

rawlplug_rhptiia4_stai

mechanical_anchoring_i

Rawlplug Academy: czym jest i jak działa kotwa mechaniczna?

Cracked concrete C20/25-C50/60

Cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Reinforced concrete

Reinforced concrete

Unreinforced concrete

Unreinforced concrete

High-density natural stone

High-density natural stone

Approved surfaces

Elevators and escalators

Gates

Handrails

Seats in public facilities

Steel structures

Storage racks

Ventilated facades

Diameter
Length
Packaging and quantity
Index
EAN
Catalog price for pack. net

R-HPTIIIA4 Throughbolt M12 x 125mm, A4 Stainless Steel - cardboard box - 50 pcs.

R-HPTIIIA4 Throughbolt M12 x 150mm, A4 Stainless Steel - cardboard box - 50 pcs.

R-HPTIIIA4 Throughbolt M12 x 125mm, A4 Stainless Steel - cardboard box - 50 pcs.

R-HPTIIIA4 Throughbolt M12 x 150mm, A4 Stainless Steel - cardboard box - 50 pcs.

Installation manual

Installation step by step

1

Drill a hole to the required diameter and depth for rebar size being used.

2

Blow out the dust at least 4 times with the hand pump.

3

Lightly tap the throughbolt through the fixture into hole with a hammer, until fixing depth is reached.

4

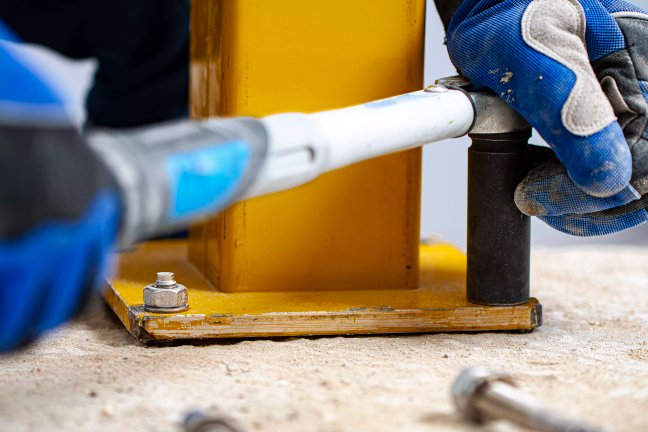

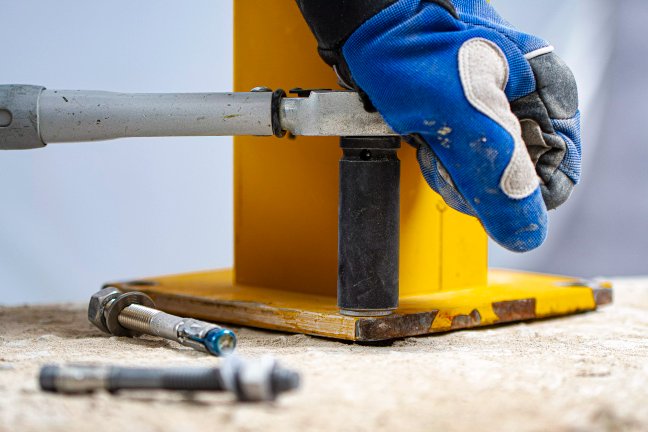

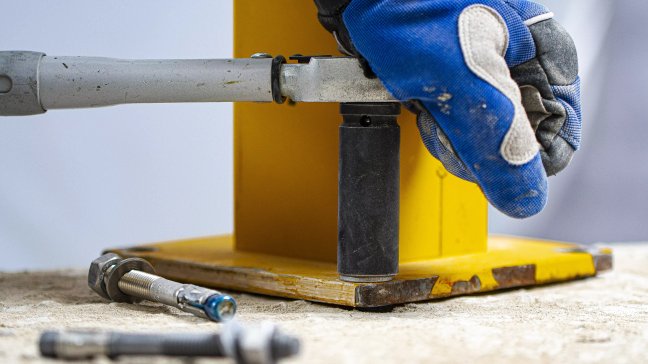

Using a torque wrench, tighten the nut to the required torque.

5

The anchor is correctly fixed.

Installation data

Technical library

(6)

Technical assessments(2)

ETA-17/0185 (2021-12-16)

Download

UKTA-0836-22/6203 (2022-11-22)

Download
Declarations(2)

DoP-17/0185-R-HPTII-A4 - ETA 17/0185 (2021-12-16)

Download

UKTA-DoP-22/6203-R-HPTII-A4 - UKTA-0836-22/6203 (2022-11-22)

Download
Certificates(2)

1488-CPR-0628/W - ETA 17/0185 (2021-12-16)

Download

UK-0836-CPR-23/P6742 - UKTA-0836-22/6203 (2022-11-22)

Download
