  2. Zinc plated throughbolt R-HPTIIIZP 8x75 mm - cardboard box - 100 pcs.

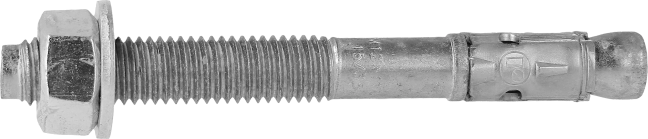

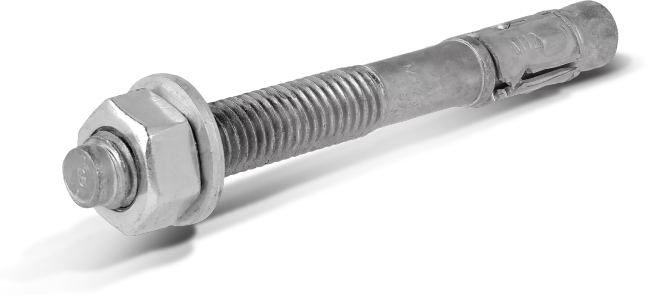

Zinc plated throughbolt R-HPTIIIZP 8x75 mm - cardboard box - 100 pcs.

Solid walls
New

R-HPTIIIZP08075/25

5906675525631

Rawlplug

Stainless steel throughbolt anchor for cracked and non-cracked concrete

Define product parameters:

Diameter
Length
Coating
Packaging and quantity

Related products

Pump for blowing drill cuttings - plastic bag - 1 pc.

Manual blow pump for cleaning dust from drilled holes

Rebardrill SDS Plus drill bits 8x150x210 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Rebardrill SDS Plus drill bits 8x100x160 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Aggressor SDS Plus drill bits 8x150x210 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

SDS plus RawlHAMMER 850 W 2.5J 26 mm Rotary hammer drill - plastic case - 1 pc.

SDS plus Rotary hammer 850W 2,5J 26 mm RAWLCASE

13mm 1/2" Cr-Mo Impact Socket 78mm L - plastic hanger - 1 pc.

Extended impact socket

Aggressor SDS Plus drill bits 8x100x160 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Protective gloves with special cushions to reduce vibration when working with power tools

R-HTW-20-100 Torque spanner 20-100 Nm 1/2" - plastic box - 1 pc.

1/2 "torque wrench for tightening with preset torque in the range of 20-100 Nm

150mm fi 18.6mm tool for mechanical anchors, SDS plus - plastic hanger - 1 pc.

Setting tool for R-HPT and R-XPT M8, M10, M12 and M16 mechanical anchors

Locksmith's hammer 0.8 kg - label - 1 pc.

Locksmiths' hammers with a round wedge and a rubber cover for the handle

Pump for blowing drill cuttings - plastic bag - 1 pc.

Manual blow pump for cleaning dust from drilled holes

Rebardrill SDS Plus drill bits 8x150x210 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Rebardrill SDS Plus drill bits 8x100x160 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Aggressor SDS Plus drill bits 8x150x210 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

SDS plus RawlHAMMER 850 W 2.5J 26 mm Rotary hammer drill - plastic case - 1 pc.

SDS plus Rotary hammer 850W 2,5J 26 mm RAWLCASE

13mm 1/2" Cr-Mo Impact Socket 78mm L - plastic hanger - 1 pc.

Extended impact socket

Aggressor SDS Plus drill bits 8x100x160 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Protective gloves with special cushions to reduce vibration when working with power tools

R-HTW-20-100 Torque spanner 20-100 Nm 1/2" - plastic box - 1 pc.

1/2 "torque wrench for tightening with preset torque in the range of 20-100 Nm

150mm fi 18.6mm tool for mechanical anchors, SDS plus - plastic hanger - 1 pc.

Setting tool for R-HPT and R-XPT M8, M10, M12 and M16 mechanical anchors

Locksmith's hammer 0.8 kg - label - 1 pc.

Locksmiths' hammers with a round wedge and a rubber cover for the handle

Features

Stainless steel throughbolt anchor for cracked and non-cracked concrete

  • Optimized cone shape, increasing the rake angle floor straps
  • Identification mark of anchor length, facilitating control after installation
  • Two kinds washers DIN 125, DIN 9021
  • Depth marker facilitating the installation anchors in the hole
  • High performance in cracked and non-cracked concrete confirmed by ETA Option 1
  • Steel expansion band with optimized design, providing secure anchoring
  • Thickness of fastened elements can be increased thanks to high carrying capacity and shallow depth anchoring
  • Can be used for fastening steel/ aluminum and wooden elements
  • Software support for designing fasteners EasyFix anchoring
  • Application specification in accordance with EAD 330232-01-0601 and included in ETA-21/1082

Substrates

Cracked concrete C20/25-C50/60

Cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Unreinforced concrete

Unreinforced concrete

Reinforced concrete

Reinforced concrete

Approved surfaces

Applications

Balustrades

Barriers

Elevators and escalators

Handrails

Seats in public facilities

Steel structures

Storage racks

Ventilated facades

Substitutes

Stainless steel A4 throughbolt R-HPTIIA4 8x75 mm - cardboard box - 100 pcs.

Stainless steel throughbolt anchor for cracked and non-cracked concrete

Stainless steel throughbolt with large washer R-HPTII-A4 8x75 mm - cardboard box - 100 pcs.

Stainless steel throughbolt anchor for cracked and non-cracked concrete witj large washer

Zinc flake throughbolt R-HPTII-ZF 8x80 mm - cardboard box - 100 pcs.

Throughbolt anchor with corrosion-resistant coating for cracked and non-cracked concrete

Zinc flake throughbolt with large washer R-HPTII-ZF 8x80 mm - cardboard box - 100 pcs.

Throughbolt anchor with corrosion-resistant coating for cracked and non-cracked concrete with large washer

R-HTW-20-100 Torque spanner 20-100 Nm 1/2" - plastic box - 1 pc.

1/2 "torque wrench for tightening with preset torque in the range of 20-100 Nm

Zinc Flake coated countersunk concrete screw anchor R-LX-CS-ZF 8x75 mm - cardboard box - 100 pcs.

Self-tapping concrete screwbolt

Zinc plated coated countersunk concrete screw anchor R-LX-CS-ZP 8x75 mm - cardboard box - 100 pcs.

Self-tapping concrete screwbolt

Zinc flake coated hex with flange concrete screw anchor, R-LX-HF-ZF 8x75 mm - cardboard box - 100 pcs.

Self-tapping concrete screwbolt

Zinc plated coated hex with flange concrete screw anchor R-LX-HF-ZP 8x75 mm - cardboard box - 100 pcs.

Self-tapping concrete screwbolt

SDS plus RawlHAMMER 850 W 2.5J 26 mm Rotary hammer drill - plastic case - 1 pc.

SDS plus Rotary hammer 850W 2,5J 26 mm RAWLCASE

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

Locksmith's hammer 0.5kg - label - 1 pc.

Locksmiths' hammers with a round wedge and a rubber cover for the handle

Locksmith's hammer 0.8 kg - label - 1 pc.

Locksmiths' hammers with a round wedge and a rubber cover for the handle

10mm HEX Holder 1/4" Impact Socket Cr-Mo 65mm L - plastic box - 3 pcs.

Driven impact sockets

Aggressor SDS Plus drill bits 10x200x260 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Aggressor SDS Plus drill bits 12x200x260 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Aggressor SDS Plus drill bits 8x150x210 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Aggressor SDS Plus drill bits 8x200x260 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Aggressor SDS Plus drill bits 8x250x310 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Rebardrill SDS Plus drill bits 10x200x260 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Rebardrill SDS Plus drill bits 12x200x260 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Rebardrill SDS Plus drill bits 8x200x260 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Stainless steel A4 throughbolt R-HPTIIA4 8x75 mm - cardboard box - 100 pcs.

Stainless steel throughbolt anchor for cracked and non-cracked concrete

Stainless steel throughbolt with large washer R-HPTII-A4 8x75 mm - cardboard box - 100 pcs.

Stainless steel throughbolt anchor for cracked and non-cracked concrete witj large washer

Zinc flake throughbolt R-HPTII-ZF 8x80 mm - cardboard box - 100 pcs.

Throughbolt anchor with corrosion-resistant coating for cracked and non-cracked concrete

Zinc flake throughbolt with large washer R-HPTII-ZF 8x80 mm - cardboard box - 100 pcs.

Throughbolt anchor with corrosion-resistant coating for cracked and non-cracked concrete with large washer

R-HTW-20-100 Torque spanner 20-100 Nm 1/2" - plastic box - 1 pc.

1/2 "torque wrench for tightening with preset torque in the range of 20-100 Nm

Zinc Flake coated countersunk concrete screw anchor R-LX-CS-ZF 8x75 mm - cardboard box - 100 pcs.

Self-tapping concrete screwbolt

Zinc plated coated countersunk concrete screw anchor R-LX-CS-ZP 8x75 mm - cardboard box - 100 pcs.

Self-tapping concrete screwbolt

Zinc flake coated hex with flange concrete screw anchor, R-LX-HF-ZF 8x75 mm - cardboard box - 100 pcs.

Self-tapping concrete screwbolt

Zinc plated coated hex with flange concrete screw anchor R-LX-HF-ZP 8x75 mm - cardboard box - 100 pcs.

Self-tapping concrete screwbolt

SDS plus RawlHAMMER 850 W 2.5J 26 mm Rotary hammer drill - plastic case - 1 pc.

SDS plus Rotary hammer 850W 2,5J 26 mm RAWLCASE

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

Locksmith's hammer 0.5kg - label - 1 pc.

Locksmiths' hammers with a round wedge and a rubber cover for the handle

Locksmith's hammer 0.8 kg - label - 1 pc.

Locksmiths' hammers with a round wedge and a rubber cover for the handle

10mm HEX Holder 1/4" Impact Socket Cr-Mo 65mm L - plastic box - 3 pcs.

Driven impact sockets

Aggressor SDS Plus drill bits 10x200x260 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Aggressor SDS Plus drill bits 12x200x260 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Aggressor SDS Plus drill bits 8x150x210 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Aggressor SDS Plus drill bits 8x200x260 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Aggressor SDS Plus drill bits 8x250x310 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Rebardrill SDS Plus drill bits 10x200x260 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Rebardrill SDS Plus drill bits 12x200x260 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Rebardrill SDS Plus drill bits 8x200x260 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Services

Design Consulting

Design Consulting

E-learning training

E-learning training

Learn more
Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

EasyFix

EasyFix

Installation guide

Installation manual

Installation step by step

1

Drill a hole to the required diameter and depth for rebar size being used.

2

Blow out the dust at least 4 times with the hand pump.

3

Lightly tap the throughbolt through the fixture into hole with a hammer, until fixing depth is reached.

4

Using a torque wrench, tighten the nut to the required torque.

5

The anchor is correctly fixed.
