  1. Mainpage

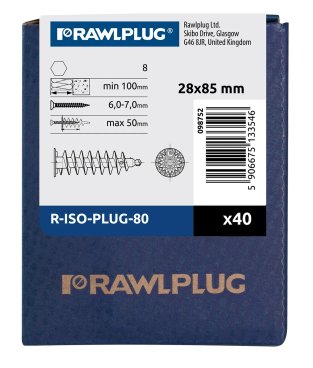

  2. R-ISO-PLUG Spiral Fixings for EPS, 80mm - cardboard box - 40 pcs.

Universal

R-ISO-PLUG-80

5906675133546

Spiral fixing for EPS

Define product parameters:

Length
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    40.00 pcs.0.40 kg

  • Bulk pack

    320.00 pcs.3.55 kg

  • Pallet

    7680.00 pcs.85.13 kg

Related products

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

Torsion Hex8 bits 25 mm - plastic box - 20 pcs.

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

Torsion Hex8 bits 25 mm - plastic box - 20 pcs.

Features

Spiral fixing for EPS

  • Unique construction of screw thread section provides support for wide variety of diameters, without limitation of screws’ length.
  • Unique self-drilling point allow precise installation through any type of façade plaster, preventing from breaking its surface.
  • No loss of thermal transmittance at the anchoring point.
  • Ribs on the internal surface of plate provide locking in surface during driving screws in and out and even surface of plug with substrate after fixing.
  • Proper shape of TX/HEX socket provides stabilization during the process of driving in by providing necessary grip for the bit.
  • Surface of the plate allows hiding installation hole and perfectly matches the surface of plaster layer, not deformating it.
  • Can be installed with commercial drill/drive tool.

iso_plug_xl

rawlplug_isoplug_insul

Mineral wool boards

Mineral wool boards

Polystyrene (EPS) boards

Polystyrene (EPS) boards

Approved surfaces

Air conditioning / ventilation

Electrical Installations

Facades - thermal insulation systems

Ventilated facades

Length
Packaging and quantity
Index
EAN
Catalog price for pack. net

R-ISO-PLUG Spiral Fixings for EPS, 50mm - cardboard box - 50 pcs.

R-ISO-PLUG Spiral Fixings for EPS, 50mm - cardboard box - 50 pcs.

Installation manual

Installation step by step

1

Drive ISO-PLUG into the insulation material (manually, or with an electric screwdriver) until installation depth reached.

2

Fixtures are fixed with a proper screw diameter. R-ISO-PLUG-50 with diameter of the screw between 4-5mm and R-ISO-PLUG-80 with screw diameter 6-7mm.

3

Insert screw of required diameter into plug through fixture and tighten.

4

Correctly installed ISO-PLUG with screw.
