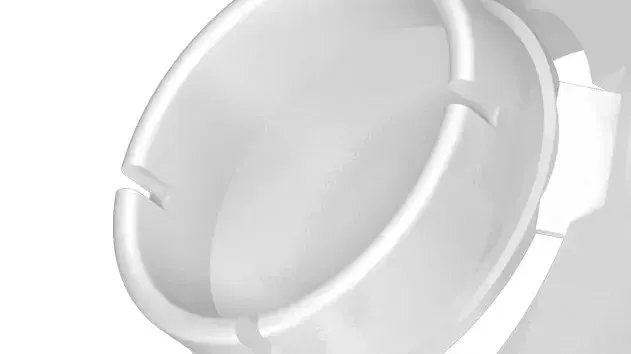

Insulation flange with masking cap KC 60 mm - cardboard box - 200 pcs.

Universal

R-KC

5906675262567

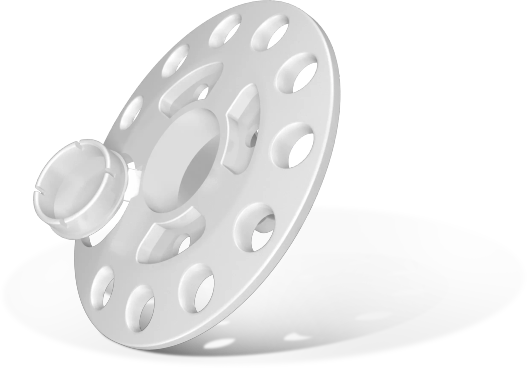

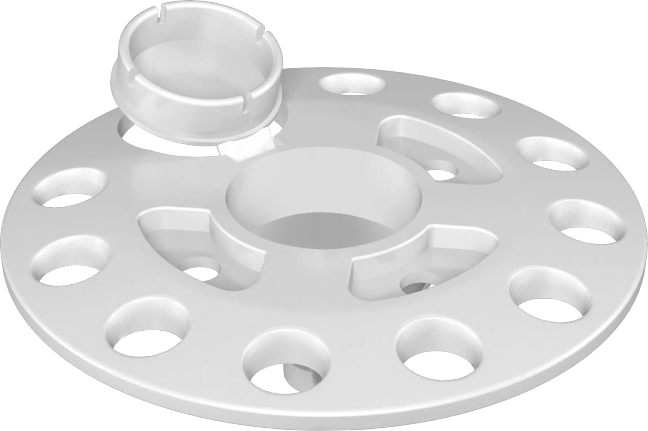

Insulation washer with integral cap suitable for attachment of insulation layers to wooden and sheet metal substrates.

Define product parameters:

Packaging and quantity
Weight and bulk packaging
  • Unit pack

    200.00 pcs.1.39 kg

  • Bulk pack

    200.00 pcs.1.39 kg

  • Pallet

    11200.00 pcs.77.56 kg

Features

Insulation washer with integral cap suitable for attachment of insulation layers to wooden and sheet metal substrates.

  • Special design of integral fastener cap allows reduction of thermal bridges.
  • Can be used with additional KWL insulation holding plate, available in 90, 110 and 140 mm flange sizes (recommended for soft insulation materials such as mineral wool).
  • Consistent and reliable holding force.

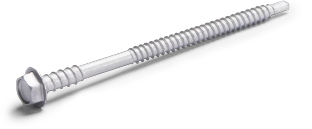

  • Recommended for the attachment of ETICS to wooden substrates using UC screws, or to sheet metal using WB and R-WX screws or concrete using R-WBT.
  • Quick, simple and clean installation.

Product video

Krok_po_kroku_jak_montowac_talerze_dociskowe

Substrates

Metal sheet & profiles

Metal sheet & profiles

Wood

Wood

Timber

Timber

Fiber cement boards

Fiber cement boards

Concrete

Concrete

Approved surfaces

Applications

Facades - thermal insulation systems

Full list of variations

Substitutes

Services

Installation guide

Installation manual

Installation step by step

1

Lightly insert KC washer into surface of insulation material. Drive the required screw through the washer and insulation material into the substrate, until fixing depth is reached.

2

Close the KC wascher flange cap.

3

Correctly installed KC washer with screw.

Design data
Type of fixingR-UC 5.0R-UC 6.0R-WO-T 4.8R-WX-T 4.8R-WX-T 6.0R-WB 4.8R-WBT 6.1
Thread diameterd[mm]
5,06,04,84,86,04,86,1
Min. edge distancecmin[mm]
100100100100100100100
Min. spacingsmin[mm]
100100100100100100100
Wrench size-[mm]
PZ2PZ3T25T25T25SW8T25
CONCRETE SUBSTRATES
Min. substrate thickness - Steel sheethmin[mm]
------100
Hole diameter in substrated0[mm]
------5,0
Min. hole depth in substrateh0[mm]
------25
Installation depthhnom[mm]
------20
STEEL DECKS
Min. substrate thickness - Steel sheethmin = t[mm]
--0,500,630,630,75-
Max. drilling capacitytI + tII[mm]
--1,01,51,52,0-
TIMBER AND WOODEN BASED STRUCTURES
Min. substrate thickness - Timber structureshmin[mm]
202524----
Min. substrate thickness - Wooden based structureshmin[mm]
--18----
SKUfixing_plate_diameter_D_mmfixing_diameter_d_mmfixing_length_small_l_mm606,115
Type of fixingR-UC 5.0R-UC 6.0R-WO-T 4.8R-WX-T 4.8R-WX-T 6.0R-WB 4.8R-WBT 6.1
TENSION LOAD
CONCRETE class ≥ C20/25 acc. to EN 206
Characteristic resistanceNRk[kN]
------1,25
Partial safety factorγM[-]
------2,0
STEEL DECK S280GD
Thickness of steel substructure tII = 0,50mmNRk[kN]
--0,89----
Thickness of steel substructure tII = 0,63mmNRk[kN]
--0,890,890,89--
Thickness of steel substructure tII = 0,75mmNRk[kN]
--0,890,890,890,81-
Thickness of steel substructure tII = 0,88mmNRk[kN]
--0,890,890,890,81-
Thickness of steel substructure tII = 1,00mmNRk[kN]
--0,890,890,890,81-
Thickness of steel substructure tII = 1,50mmNRk[kN]
---0,890,890,81-
Thickness of steel substructure tII = 2,00mmNRk[kN]
-----0,81-
Partial safety factorγM[-]
--2,02,02,02,0-
TIMBER STRUCTURES - WOOD class ≥ C24 acc. to EN 14081-1
Embedment depthhef[mm]
202525----
Characteristic resistanceNRk[kN]
0,730,910,89----
Partial safety factorγM[-]
2,02,02,0----
WOOD WOOL PANELS MEB GREEN SUPREMA GB 600 acc. to EN 13168, density ≥ 600kg/m3
Embedment depthhef[mm]
--25----
Characteristic resistanceNRk[kN]
--0,35----
Partial safety factorγM[-]
--2,0----
WOOD WOOL PANELS MEB GREEN SUPREMA GB 1050 acc. to EN 13168, density ≥ 1050kg/m3
Embedment depthhef[mm]
--18----
Characteristic resistanceNRk[kN]
--0,89----
Partial safety factorγM[-]
--2,0----
WOOD-BASED PANELS MIAMI ECO BOARD acc. to EN 13986, density ≥ 1300kg/m3
Embedment depthhef[mm]
--20----
Characteristic resistanceNRk[kN]
--0,89----
Partial safety factorγM[-]
--2,0----
OSB SHEETS acc. to EN 300, density ≥ 650kg/m3
Embedment depthhef[mm]
--18----
Characteristic resistanceNRk[kN]
--0,88----
Partial safety factorγM[-]
--2,0----
Type of fixingR-UC 5.0R-UC 6.0R-WO-T 4.8R-WX-T 4.8R-WX-T 6.0R-WB 4.8R-WBT 6.1
Insulation thickness 100mmχ[W/K]
0,0010,0010,0020,0020,0020,0020,002
Type of fixingR-KC
Diameter of the anchor platedf[mm]
60
Plate resistance-[kN]
1,30
Plate stiffness-[kN/mm]
0,40
