R-KI-160N
5906675261430

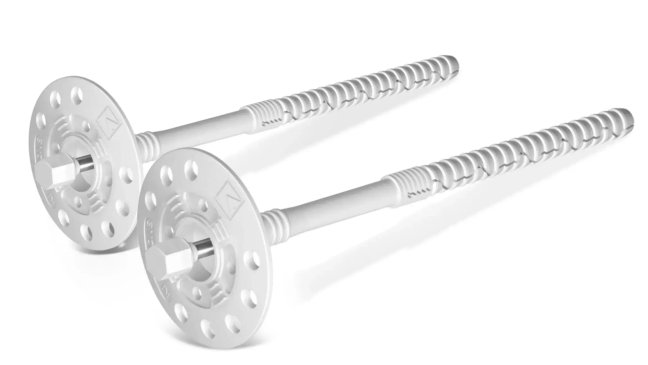

Hammer-in facade fixing long expansion zone 60 mm for high performance in masonry, as well as lightweight and aerated concrete
Define product parameters:
Unit pack
250.00 pcs.9.49 kg
Bulk pack
250.00 pcs.9.49 kg
Pallet
4000.00 pcs.
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation
Hammer-in facade fixing long expansion zone 60 mm for high performance in masonry, as well as lightweight and aerated concrete
Approved surfaces
Length | Packaging and quantity | Index | EAN | Catalog price for pack. net |
|---|
Drill hole to the required diameter and depth for stud size being used. Drilling depth of min 60 mm in concrete and 80 mm in other approved materials.
Blow out dust at least 4 times with a hand pump.
Lightly tap the plastic sleeve through the insulation material into hole with a hammer, until fixing depth is reached.
Lightly tap the plastic nail into the plastic sleeve until fixing is secure and flush with insulation material. Embedment depth of min 60 mm in approved materials.
In soft insulation panels the fixing should be combined with insulation retaining plates KWL 90, 110, 140 mm.
