  2. R-LX Concrete Screw Anchor M6 / 7.5 x 50mm, Pan Head, Zinc Plated - cardboard box - 100 pcs.

R-LX Concrete Screw Anchor M6 / 7.5 x 50mm, Pan Head, Zinc Plated - cardboard box - 100 pcs.

Solid walls
New

R-LX-06X050-PX-ZP

5906675451060

Zinc Plated Concrete Screw Anchor with enlarged head

Define product parameters:

Diameter
Length
Coating
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    100.00 pcs.1.61 kg

  • Bulk pack

    100.00 pcs.1.61 kg

  • Pallet

    25600.00 pcs.411.14 kg

Related products

Rawlplug SDS Plus Rebar Drill Bit 6.0 x 100 x 160mm, PGM Approved - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Pump for blowing drill cuttings - plastic bag - 1 pc.

Manual blow pump for cleaning dust from drilled holes

Rawlplug SDS Plus Rebar Drill Bit 6.0 x 50 x 110mm, PGM Approved - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

SDS plus RawlHAMMER 850 W 2.5J 26 mm Rotary hammer drill - plastic case - 1 pc.

SDS plus Rotary hammer 850W 2,5J 26 mm RAWLCASE

Aggressor SDS Plus drill bits 6x100x160 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Impact bits Torx T30, 25 mm - plastic box - 20 pcs.

Impact bits

Aggressor SDS Plus drill bits 6x50x110 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

RT-IS Impact Socket CR-MO -13 x 18mm - plastic hanger - 1 pc.

Extended impact socket

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

18V Impact driver with 210 Nm torque equipped with universal handle - inner 1/4" and external 1/2" - allows you to work with bits and caps.

13mm HEX Holder 1/4" Impact Socket Cr-Mo 65mm L - plastic box - 3 pcs.

Driven impact sockets

Universal drill bit Multidrill 6x100 mm for concrete, metal and wood - plastic box - 1 pc.

Multidrill universal drill bit

Rawlplug SDS Plus Rebar Drill Bit 6.0 x 100 x 160mm, PGM Approved - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Pump for blowing drill cuttings - plastic bag - 1 pc.

Manual blow pump for cleaning dust from drilled holes

Rawlplug SDS Plus Rebar Drill Bit 6.0 x 50 x 110mm, PGM Approved - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

SDS plus RawlHAMMER 850 W 2.5J 26 mm Rotary hammer drill - plastic case - 1 pc.

SDS plus Rotary hammer 850W 2,5J 26 mm RAWLCASE

Aggressor SDS Plus drill bits 6x100x160 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Impact bits Torx T30, 25 mm - plastic box - 20 pcs.

Impact bits

Aggressor SDS Plus drill bits 6x50x110 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

RT-IS Impact Socket CR-MO -13 x 18mm - plastic hanger - 1 pc.

Extended impact socket

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

18V Impact driver with 210 Nm torque equipped with universal handle - inner 1/4" and external 1/2" - allows you to work with bits and caps.

13mm HEX Holder 1/4" Impact Socket Cr-Mo 65mm L - plastic box - 3 pcs.

Driven impact sockets

Universal drill bit Multidrill 6x100 mm for concrete, metal and wood - plastic box - 1 pc.

Multidrill universal drill bit

Features

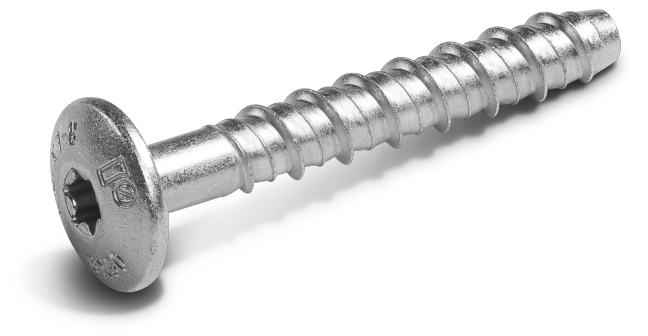

Zinc Plated Concrete Screw Anchor with enlarged head

  • Non-expansion functioning ensures low risk of damage to base material and makes R-LX ideal for installation near edges and adjacent anchors.
  • Completely removable with possibility of reuse.
  • Suitable for standard and reduced embedment depth.
  • High performance in both uncracked and cracked concrete.
  • Time-efficient through-fixing installation with streamlined procedure - simply drill and drive.

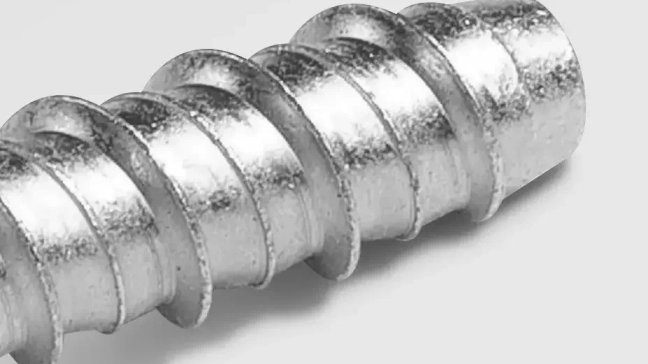

  • Unique design with patented threadform ensures high performance for relatively small hole diameter.
  • Excellent product for temporary fixing.

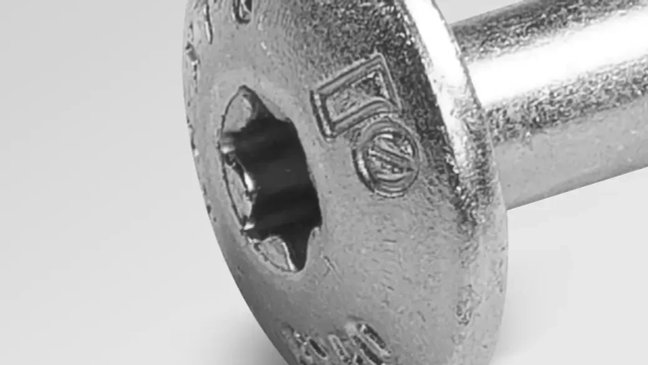

  • Oversize head for fixtures with elongated holes.
  • Different head types for any application.

Product video

Kotwa mechaniczna wkręcana do betonu Rawlplug R-LX - tutorial i zasada działania

Mechanical concrete screw anchor – Rawlplug's instruction

Substrates

Cracked concrete C20/25-C50/60

Cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Unreinforced concrete

Unreinforced concrete

Reinforced concrete

Reinforced concrete

Hollow-core slab C30/37-C50/60

Hollow-core slab C30/37-C50/60

High-density natural stone

High-density natural stone

Concrete

Concrete

Approved surfaces

Applications

Balustrades

Concrete structures

Formwork

Gates

Scaffolding

Seats in public facilities

Storage racks

Temporary fixings

Full list of variations

Diameter
Length
Coating
Type of package
Pieces. per pack.
Index
EAN
Catalog price for pack. net

Substitutes

Zinc flake coated induction hardened pan-head magnified anchor R-HLX-PX-ZF 6x60 mm - cardboard box - 100 pcs.

Self-tapping concrete screw

Zinc flake coated induction hardened pan-head magnified anchor R-HLX-PX-ZF 6x60 mm - cardboard box - 100 pcs.

Self-tapping concrete screw

Expert advice

New seat and launch of Rawlplug Academy Romania

See more

New seat and launch of Rawlplug Academy Romania

See more

Installation guide

Installation manual

Installation step by step

1

Drill a hole to the required diameter and depth for rebar size being used.

2

Blow out the dust at least 4 times with the hand pump.

3

Tighten to specified installation torque.

4

After installation a further turning of the screw must not be possible. The head of the screw must be in contact with the substrate and is not damaged.

Installation data

Approvals and publications

Technical library

(4)

Technical assessments(3)

ETA 17/0783

ETA 17/0783

Download

ETA-17/0806

ETA-17/0806

Download

UKTA-22/6346

UKTA-22/6346

Download
Declarations(1)

DoP-17/0783 R-LX

Download

Catalogues and product cards

(1)

Product cards(1)

Product cart

Download
