  2. Zinc plated screw for concrete with a head with internal thread, R-LX-I-ZP 6x55 mm - cardboard box - 100 pcs.

Zinc plated screw for concrete with a head with internal thread, R-LX-I-ZP 6x55 mm - cardboard box - 100 pcs.

Solid walls

R-LX-06X055-I08-ZP

5906675416083

Self-tapping concrete screwbolt

Define product parameters:

Diameter
Length
Coating
Thread
Packaging and quantity

Related products

Pump for blowing drill cuttings - plastic bag - 1 pc.

Manual blow pump for cleaning dust from drilled holes

Rebardrill SDS Plus drill bits 6x100x160 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Rebardrill SDS Plus drill bits 6x150x210 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Aggressor SDS Plus drill bits 6x100x160 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Aggressor SDS Plus drill bits 6x150x210 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

SDS plus RawlHAMMER 850 W 2.5J 26 mm Rotary hammer drill - plastic case - 1 pc.

SDS plus Rotary hammer 850W 2,5J 26 mm RAWLCASE

13mm HEX Holder 1/4" Impact Socket Cr-Mo 65mm L - plastic box - 3 pcs.

Driven impact sockets

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

18V Impact driver with 210 Nm torque equipped with universal handle - inner 1/4" and external 1/2" - allows you to work with bits and caps.

13mm 1/2" Cr-Mo Impact Socket 78mm L - plastic hanger - 1 pc.

Extended impact socket

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Protective gloves with special cushions to reduce vibration when working with power tools

Pump for blowing drill cuttings - plastic bag - 1 pc.

Manual blow pump for cleaning dust from drilled holes

Rebardrill SDS Plus drill bits 6x100x160 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Rebardrill SDS Plus drill bits 6x150x210 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Aggressor SDS Plus drill bits 6x100x160 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Aggressor SDS Plus drill bits 6x150x210 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

SDS plus RawlHAMMER 850 W 2.5J 26 mm Rotary hammer drill - plastic case - 1 pc.

SDS plus Rotary hammer 850W 2,5J 26 mm RAWLCASE

13mm HEX Holder 1/4" Impact Socket Cr-Mo 65mm L - plastic box - 3 pcs.

Driven impact sockets

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

18V Impact driver with 210 Nm torque equipped with universal handle - inner 1/4" and external 1/2" - allows you to work with bits and caps.

13mm 1/2" Cr-Mo Impact Socket 78mm L - plastic hanger - 1 pc.

Extended impact socket

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Protective gloves with special cushions to reduce vibration when working with power tools

Features

Self-tapping concrete screwbolt

  • Non-expansion functioning ensures low risk of damage to base material and makes R-LX ideal for installation near edges and adjacent anchors
  • Suitable for standard and reduced embedment depth
  • Time-efficient installation through streamlined procedure - simply drill and drive
  • Unique design with patented threadform ensures high performance for relatively small hole diameter
  • High performance in non-cracked concrete
  • Excellent product for temporary fixing
  • Completely removable
  • Oversize head for fixtures with elongated holes
  • Different head types for any application

Product video

Rawlplug R-LX mechanical concrete screw anchor - tutorial and principle of operation

Mechanical concrete screw anchor – Rawlplug's instruction

Substrates

Cracked concrete C20/25-C50/60

Cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Unreinforced concrete

Unreinforced concrete

Reinforced concrete

Reinforced concrete

Hollow-core slab C30/37-C50/60

Hollow-core slab C30/37-C50/60

High-density natural stone

High-density natural stone

Cracked concrete C20/25-C50/60

Cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Unreinforced concrete

Unreinforced concrete

Reinforced concrete

Reinforced concrete

Approved surfaces

Applications

Balustrades

Concrete structures

Formwork

Gates

Scaffolding

Seats in public facilities

Storage racks

Temporary fixings

Substitutes

ON Self-drilling screws for metal sheets 5.5x32 mm with washer T14 RAL 3011 - cardboard box - 100 pcs.

The special drill bit shape designed to provide quick and trouble-free installation in metal constructions made from hot rolled sections

Zinc plated screw for concrete with a head with internal thread, R-LX-I-ZP 6x55 mm - cardboard box - 100 pcs.

Self-tapping concrete screwbolt

ON Self-drilling screws for metal sheets 5.5x32 mm with washer T14 RAL 3011 - cardboard box - 100 pcs.

The special drill bit shape designed to provide quick and trouble-free installation in metal constructions made from hot rolled sections

Zinc plated screw for concrete with a head with internal thread, R-LX-I-ZP 6x55 mm - cardboard box - 100 pcs.

Self-tapping concrete screwbolt

Services

Design Consulting

Design Consulting

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

EasyFix

EasyFix

Technical library

Technical library

Installation guide

Installation manual

Installation step by step

1

Drill a hole to the required diameter and depth for rebar size being used.

2

R_LX_I_2_hollow

3

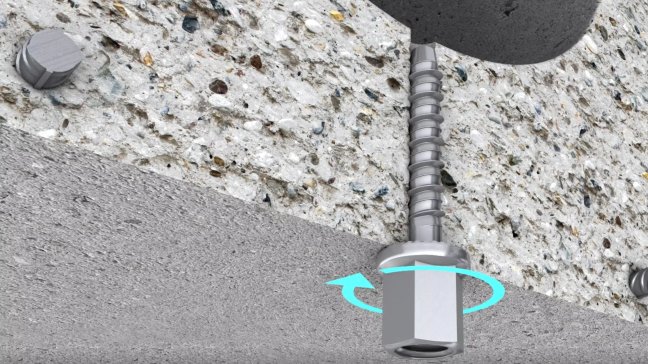

Tighten the anchor into the ground to the required torque.

4

Install the fixture.

5

The anchor is properly fixed in the concrete base.

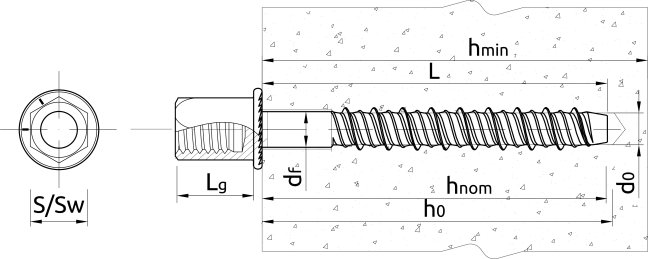

Installation data

Approvals and publications

Technical library and approvals

Choose document:

ETA 17/0783

DoP-17/0783 R-LX

ETA-17/0806

UKTA-22/6346

Product card and catalogues

Choose product card:

Product card

Choose product catalog:

Specification Design Guide

General catalogue - PDF
