Self-tapping concrete screwbolt

Non-expansion functioning ensures low risk of damage to base material and makes R-LX ideal for installation near edges and adjacent anchors.
Suitable for standard and reduced embedment depth.
Time-efficient installation through streamlined procedure - simply drill and drive.

Highest performance in both cracked and non-cracked concrete.
Unique design with patented threadform ensures high performance for relatively small hole diameter and low torque level during installation even in high strength concrete.
Special zinc flake coating for increased corrosion resistance.

Kotwa mechaniczna wkręcana do betonu Rawlplug R-LX - tutorial i zasada działania

Mechanical concrete screw anchor – Rawlplug's instruction

Cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Unreinforced concrete

Reinforced concrete

Approved surfaces

Balustrades

Concrete structures

Formwork

Gates

Scaffolding

Seats in public facilities

Storage racks

Temporary fixings

Coating

Diameter

Length

Diameter	Length	Coating	Type of package	Pieces. per pack.	Index	EAN

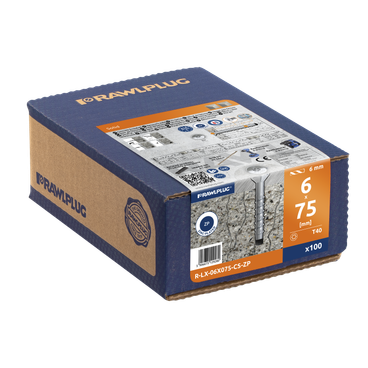

6 mm	75 mm	ZP - galvanized	Cardboard box	100	R-LX-06X075-CS-ZP	5906675129280	Contact with us and check out our terms of cooperation
6 mm	60 mm	ZF - flake zinc	Cardboard box	100	R-LX-06X075-CS-ZF	5906675130248	Contact with us and check out our terms of cooperation
6 mm	100 mm	ZF - flake zinc	Cardboard box	100	R-LX-06X100-CS-ZF	5906675130255	Contact with us and check out our terms of cooperation
5 mm	50 mm	ZF - flake zinc	Cardboard box	100	R-LX-05X050-CS-ZF	5906675130217	Contact with us and check out our terms of cooperation
5 mm	50 mm	ZP - galvanized	Cardboard box	100	R-LX-05X050-CS-ZP	5906675127859	Contact with us and check out our terms of cooperation
6 mm	50 mm	ZP - galvanized	Cardboard box	100	R-LX-06X050-CS-ZP	5906675128801	Contact with us and check out our terms of cooperation
6 mm	100 mm	ZP - galvanized	Cardboard box	100	R-LX-06X100-CS-ZP	5906675129297	Contact with us and check out our terms of cooperation
8 mm	100 mm	ZF - flake zinc	Cardboard box	100	R-LX-08X100-CS-ZF	5906675130415	Contact with us and check out our terms of cooperation
8 mm	100 mm	ZP - galvanized	Cardboard box	100	R-LX-08X100-CS-ZP	5906675129358	Contact with us and check out our terms of cooperation
5 mm	75 mm	ZP - galvanized	Cardboard box	100	R-LX-05X075-CS-ZP	5906675128054	Contact with us and check out our terms of cooperation
