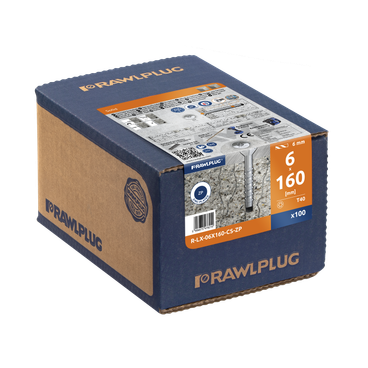

Zinc plated coated countersunk concrete screw anchor R-LX-CS-ZP 6x160 mm - cardboard box - 100 pcs.

Solid walls
New

R-LX-06X160-CS-ZP

5906675478210

Self-tapping concrete screwbolt

Define product parameters:

Diameter
Length
Coating
Packaging and quantity

Related products

Features

Self-tapping concrete screwbolt

  • Non-expansion functioning ensures low risk of damage to base material and makes R-LX ideal for installation near edges and adjacent anchors
  • Suitable for standard and reduced embedment depth
  • Time-efficient installation through streamlined procedure - simply drill and drive
  • Highest performance in both cracked and non-cracked concrete
  • Unique design with patented threadform ensures high performance for relatively small hole diameter and low torque level during installation even in high strength concrete
  • Special zinc flake coating for increased corrosion resistance
  • Possibility of multiple use in high-strength concrete
  • Allround product for any application
  • Completely removable

Product video

Rawlplug R-LX mechanical concrete screw anchor - tutorial and principle of operation

Mechanical concrete screw anchor – Rawlplug's instruction

Substrates

Cracked concrete C20/25-C50/60

Cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Unreinforced concrete

Unreinforced concrete

Reinforced concrete

Reinforced concrete

Approved surfaces

Applications

Balustrades

Concrete structures

Formwork

Gates

Scaffolding

Seats in public facilities

Storage racks

Temporary fixings

Substitutes

Services

Design Consulting

Design Consulting

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

EasyFix

EasyFix

Technical library

Technical library

Installation guide

Installation manual

Installation step by step

1

Drill a hole to the required diameter and depth for rebar size being used.

2

Blow out the dust at least 4 times with the hand pump.

3

Can be unscrewed and screwed back in.

4

Tighten to the recommended torque.

5

The anchor is properly fixed in the concrete base.

Installation data

Approvals and publications

Technical library and approvals

Choose document:

ETA 17/0783

DoP-17/0783 R-LX

UKTA-22/6346

VDS_CEA_4001

Product card and catalogues

Choose product card:

Product card

Product card

Choose product catalog:

Specification Design Guide

General catalogue - PDF
