  2. Zinc plated coated hex concrete screw anchor, R-LX-HF-ZP 8x150 mm - cardboard box - 50 pcs.

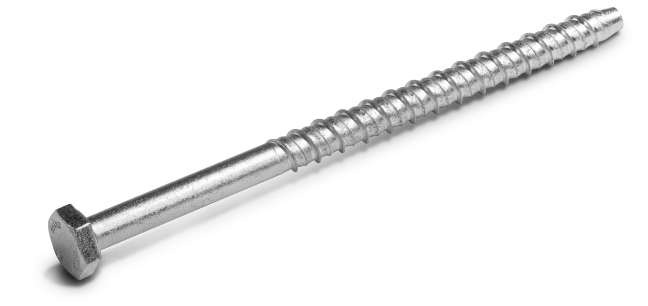

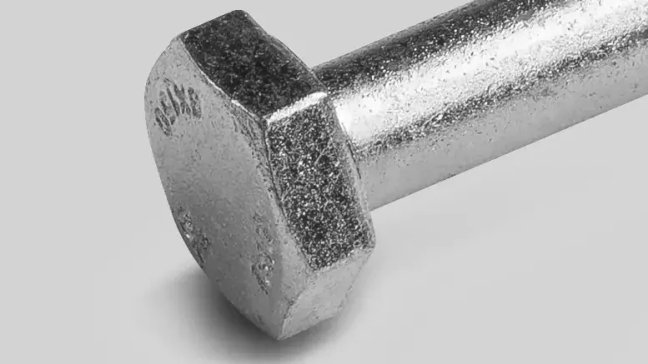

Zinc plated coated hex concrete screw anchor, R-LX-HF-ZP 8x150 mm - cardboard box - 50 pcs.

Solid walls

R-LX-08X150-H-ZP

5906675121192

Zinc Plated Concrete Screw Anchor

Define product parameters:

Diameter
Length
Coating
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    50.00 pcs.3.28 kg

  • Bulk pack

    50.00 pcs.3.28 kg

  • Pallet

    12800.00 pcs.839.68 kg

Related products

Pump for blowing drill cuttings - plastic bag - 1 pc.

Manual blow pump for cleaning dust from drilled holes

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 150 x 210mm, PGM Approved - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

SDS plus RawlHAMMER 850 W 2.5J 26 mm Rotary hammer drill - plastic case - 1 pc.

SDS plus Rotary hammer 850W 2,5J 26 mm RAWLCASE

Aggressor SDS Plus drill bits 8x150x210 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Aggressor SDS Plus drill bits 8x200x260 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

RT-IS Impact Socket CR-MO -15 x 78mm - plastic hanger - 1 pc.

Extended impact socket

18 V RawlWRENCH 1000 Nm Impact wrench , 2 batteries 5.0 Ah, 6.5 A RawlCHARGER, RawlCASE - plastic case - 1 pc.

18V impact wrench with 1000 Nm torque and 1/2" square tool holder allows for quick and reliable installation of fixings in concrete.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Protective gloves with special cushions to reduce vibration when working with power tools

Pump for blowing drill cuttings - plastic bag - 1 pc.

Manual blow pump for cleaning dust from drilled holes

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 150 x 210mm, PGM Approved - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

SDS plus RawlHAMMER 850 W 2.5J 26 mm Rotary hammer drill - plastic case - 1 pc.

SDS plus Rotary hammer 850W 2,5J 26 mm RAWLCASE

Aggressor SDS Plus drill bits 8x150x210 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Aggressor SDS Plus drill bits 8x200x260 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

RT-IS Impact Socket CR-MO -15 x 78mm - plastic hanger - 1 pc.

Extended impact socket

18 V RawlWRENCH 1000 Nm Impact wrench , 2 batteries 5.0 Ah, 6.5 A RawlCHARGER, RawlCASE - plastic case - 1 pc.

18V impact wrench with 1000 Nm torque and 1/2" square tool holder allows for quick and reliable installation of fixings in concrete.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Protective gloves with special cushions to reduce vibration when working with power tools

Features

Zinc Plated Concrete Screw Anchor

  • Non-expansion functioning ensures low risk of damage to base material and makes R-LX ideal for installation near edges and adjacent anchors.
  • Suitable for standard and reduced embedment depth.
  • High performance in both uncracked and cracked concrete.
  • Time-efficient through-fixing installation with streamlined procedure - simply drill and drive.
  • Unique design with patented threadform ensures high performance for relatively small hole diameter.
  • Special zinc flake corrosion-resistant coating.
  • Excellent product for temporary fixing.
  • Can be completely disassembled.

Product video

Rawlplug R-LX mechanical concrete screw anchor - tutorial and principle of operation

Mechanical concrete screw anchor – Rawlplug's instruction

Substrates

Cracked concrete

Cracked concrete

Non-cracked concrete

Non-cracked concrete

Reinforced concrete

Reinforced concrete

Unreinforced concrete

Unreinforced concrete

High-density natural stone

High-density natural stone

Approved surfaces

Applications

Balustrades

Concrete structures

Formwork

Gates

Scaffolding

Seats in public facilities

Storage racks

Temporary fixings

Substitutes

Concrete screw in zinc flake with hexagonal head, induction hardened R-HLX-HF-ZF 8/10.4x150 mm - cardboard box - 50 pcs.

Induction hardened concrete screw anchor with hex head

R-LX Concrete Screw Anchor M8 / 10 x 150mm, Countersunk Head, Zinc Plated - cardboard box - 50 pcs.

Self-tapping concrete screwbolt

Zinc flake coated hex with flange concrete screw anchor, R-LX-HF-ZF 8x150 mm - cardboard box - 50 pcs.

Self-tapping concrete screwbolt

R-LX Concrete Screw Anchor M8 / 10 x 150mm, Hex Flange, Zinc Plated - cardboard box - 50 pcs.

Self-tapping concrete screwbolt

Concrete screw in zinc flake with hexagonal head, induction hardened R-HLX-HF-ZF 8/10.4x150 mm - cardboard box - 50 pcs.

Induction hardened concrete screw anchor with hex head

R-LX Concrete Screw Anchor M8 / 10 x 150mm, Countersunk Head, Zinc Plated - cardboard box - 50 pcs.

Self-tapping concrete screwbolt

Zinc flake coated hex with flange concrete screw anchor, R-LX-HF-ZF 8x150 mm - cardboard box - 50 pcs.

Self-tapping concrete screwbolt

R-LX Concrete Screw Anchor M8 / 10 x 150mm, Hex Flange, Zinc Plated - cardboard box - 50 pcs.

Self-tapping concrete screwbolt

Services

Design Consulting

Design Consulting

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

EasyFix

EasyFix

Technical library

Technical library

Installation guide

Installation manual

Installation step by step

1

Drill a hole to the required diameter and depth for rebar size being used.

2

Blow out the dust at least 4 times with the hand pump.

3

Can be unscrewed and screwed back in.

4

Tighten to the recommended torque.

5

The anchor is properly fixed in the concrete base.

Installation data

Approvals and publications

Product card and catalogues

Choose product card:

Product cart

Product cart

Choose product catalog:

Specification Design Guide

General catalogue - PDF
