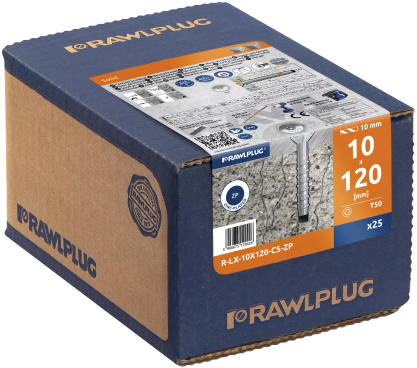

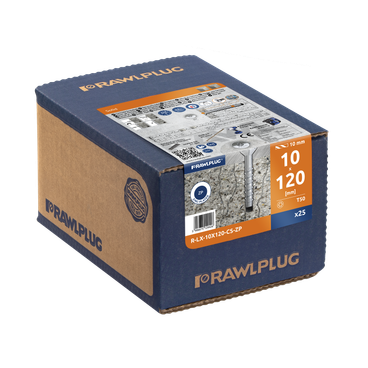

Zinc plated coated countersunk concrete screw anchor R-LX-CS-ZP 10x120 mm - cardboard box - 25 pcs.

Solid walls
Outlet

R-LX-10X120-CS-ZP

5906675129426

Self-tapping concrete screwbolt

Define product parameters:

Diameter
Length
Coating
Packaging and quantity

We will prepare this product for you after you add it to your cart and place your order. The estimated lead time is 84 days

Related products

Pump for blowing drill cuttings - plastic bag - 1 pc.

Manual blow pump for cleaning dust from drilled holes

Rebardrill SDS Plus drill bits 10x150x210 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Rebardrill SDS Plus drill bits 10x200x260 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Aggressor SDS Plus drill bits 10x150x210 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Aggressor SDS Plus drill bits 10x200x260 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

SDS plus RawlHAMMER 850 W 2.5J 26 mm Rotary hammer drill - plastic case - 1 pc.

SDS plus Rotary hammer 850W 2,5J 26 mm RAWLCASE

Magnetic impact adapter 58 mm - plastic box - 1 pc.

Impact adapter designed for use with impact bits, for screwing screws and other fastening applications

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Protective gloves with special cushions to reduce vibration when working with power tools

18 V RawlWRENCH 1000 Nm Impact wrench , 2 batteries 5.0 Ah, 6.5 A RawlCHARGER, RawlCASE - plastic case - 1 pc.

18V impact wrench with 1000 Nm torque and 1/2" square tool holder allows for quick and reliable installation of fixings in concrete.

Features

Self-tapping concrete screwbolt

  • Non-expansion functioning ensures low risk of damage to base material and makes R-LX ideal for installation near edges and adjacent anchors
  • Suitable for standard and reduced embedment depth
  • Time-efficient installation through streamlined procedure - simply drill and drive
  • Highest performance in both cracked and non-cracked concrete
  • Unique design with patented threadform ensures high performance for relatively small hole diameter and low torque level during installation even in high strength concrete
  • Special zinc flake coating for increased corrosion resistance
  • Possibility of multiple use in high-strength concrete
  • Allround product for any application
  • Completely removable

Product video

Rawlplug R-LX mechanical concrete screw anchor - tutorial and principle of operation

Mechanical concrete screw anchor – Rawlplug's instruction

Substrates

Cracked concrete C20/25-C50/60

Cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Unreinforced concrete

Unreinforced concrete

Reinforced concrete

Reinforced concrete

Approved surfaces

Applications

Balustrades

Concrete structures

Formwork

Gates

Scaffolding

Seats in public facilities

Storage racks

Temporary fixings

Substitutes

Services

Design Consulting

Design Consulting

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

EasyFix

EasyFix

Technical library

Technical library

Installation guide

Installation manual

Installation step by step

1

Drill a hole to the required diameter and depth for rebar size being used.

2

Blow out the dust at least 4 times with the hand pump.

3

Can be unscrewed and screwed back in.

4

Tighten to the recommended torque.

5

The anchor is properly fixed in the concrete base.
