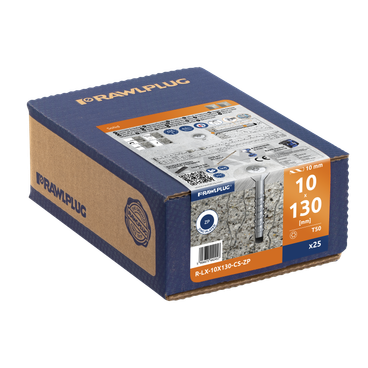

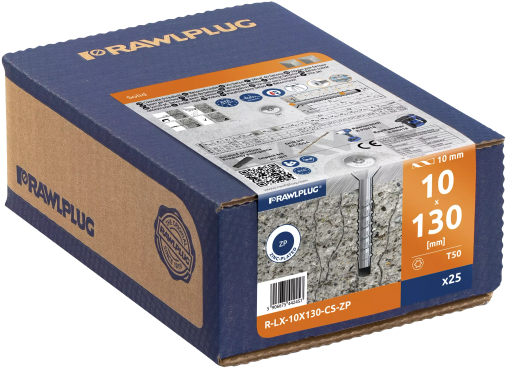

  2. Zinc plated coated countersunk concrete screw anchor R-LX-CS-ZP 10x130 mm - cardboard box - 25 pcs.

Zinc plated coated countersunk concrete screw anchor R-LX-CS-ZP 10x130 mm - cardboard box - 25 pcs.

Solid walls
Outlet

R-LX-10X130-CS-ZP

5906675442457

Self-tapping concrete screwbolt

Define product parameters:

Diameter
Length
Coating
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    25.00 pcs.2.12 kg

  • Bulk pack

    25.00 pcs.2.12 kg

  • Pallet

    9600.00 pcs.812.16 kg

Related products

Rebardrill SDS Plus drill bits 10x150x210 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Pump for blowing drill cuttings - plastic bag - 1 pc.

Manual blow pump for cleaning dust from drilled holes

Rawlplug SDS Plus Rebar Drill Bit 10 x 200 x 260mm, PGM Approved - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

SDS plus RawlHAMMER 850 W 2.5J 26 mm Rotary hammer drill - plastic case - 1 pc.

SDS plus Rotary hammer 850W 2,5J 26 mm RAWLCASE

Aggressor SDS Plus drill bits 10x200x260 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Aggressor SDS Plus drill bits 10x150x210 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

18 V RawlWRENCH 1000 Nm Impact wrench , 2 batteries 5.0 Ah, 6.5 A RawlCHARGER, RawlCASE - plastic case - 1 pc.

18V impact wrench with 1000 Nm torque and 1/2" square tool holder allows for quick and reliable installation of fixings in concrete.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Protective gloves with special cushions to reduce vibration when working with power tools

Torx50 bits 25 mm - blister - 3 pcs.

Long Torsion bits

Torsion Torx50 T50 bits, 25 mm - plastic box - 20 pcs.

Long Torsion bits

Rebardrill SDS Plus drill bits 10x150x210 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Pump for blowing drill cuttings - plastic bag - 1 pc.

Manual blow pump for cleaning dust from drilled holes

Rawlplug SDS Plus Rebar Drill Bit 10 x 200 x 260mm, PGM Approved - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

SDS plus RawlHAMMER 850 W 2.5J 26 mm Rotary hammer drill - plastic case - 1 pc.

SDS plus Rotary hammer 850W 2,5J 26 mm RAWLCASE

Aggressor SDS Plus drill bits 10x200x260 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Aggressor SDS Plus drill bits 10x150x210 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

18 V RawlWRENCH 1000 Nm Impact wrench , 2 batteries 5.0 Ah, 6.5 A RawlCHARGER, RawlCASE - plastic case - 1 pc.

18V impact wrench with 1000 Nm torque and 1/2" square tool holder allows for quick and reliable installation of fixings in concrete.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Protective gloves with special cushions to reduce vibration when working with power tools

Torx50 bits 25 mm - blister - 3 pcs.

Long Torsion bits

Torsion Torx50 T50 bits, 25 mm - plastic box - 20 pcs.

Long Torsion bits

Features

Self-tapping concrete screwbolt

  • Non-expansion functioning ensures low risk of damage to base material and makes R-LX ideal for installation near edges and adjacent anchors.
  • Suitable for standard and reduced embedment depth.
  • Time-efficient installation through streamlined procedure - simply drill and drive.
  • Highest performance in both cracked and non-cracked concrete.
  • Unique design with patented threadform ensures high performance for relatively small hole diameter and low torque level during installation even in high strength concrete.
  • Special zinc flake coating for increased corrosion resistance.
  • Possibility of multiple use in high-strength concrete.
  • Allround product for any application.
  • Can be completely disassembled.

Product video

Kotwa mechaniczna wkręcana do betonu Rawlplug R-LX - tutorial i zasada działania

Mechanical concrete screw anchor – Rawlplug's instruction

Substrates

Cracked concrete C20/25-C50/60

Cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Unreinforced concrete

Unreinforced concrete

Reinforced concrete

Reinforced concrete

Approved surfaces

Applications

Balustrades

Concrete structures

Formwork

Gates

Scaffolding

Seats in public facilities

Storage racks

Temporary fixings

Full list of variations

Coating
Diameter
Length
Diameter
Length
Coating
Type of package
Pieces. per pack.
Index
EAN
6 mm75 mmZP - galvanized

Cardboard box

100R-LX-06X075-CS-ZP5906675129280

Contact with us and check out our terms of cooperation

6 mm60 mmZF - flake zinc

Cardboard box

100R-LX-06X075-CS-ZF5906675130248

Contact with us and check out our terms of cooperation

6 mm100 mmZF - flake zinc

Cardboard box

100R-LX-06X100-CS-ZF5906675130255

Contact with us and check out our terms of cooperation

5 mm50 mmZF - flake zinc

Cardboard box

100R-LX-05X050-CS-ZF5906675130217

Contact with us and check out our terms of cooperation

5 mm50 mmZP - galvanized

Cardboard box

100R-LX-05X050-CS-ZP5906675127859

Contact with us and check out our terms of cooperation

6 mm50 mmZP - galvanized

Cardboard box

100R-LX-06X050-CS-ZP5906675128801

Contact with us and check out our terms of cooperation

6 mm100 mmZP - galvanized

Cardboard box

100R-LX-06X100-CS-ZP5906675129297

Contact with us and check out our terms of cooperation

8 mm100 mmZF - flake zinc

Cardboard box

100R-LX-08X100-CS-ZF5906675130415

Contact with us and check out our terms of cooperation

8 mm100 mmZP - galvanized

Cardboard box

100R-LX-08X100-CS-ZP5906675129358

Contact with us and check out our terms of cooperation

5 mm75 mmZP - galvanized

Cardboard box

100R-LX-05X075-CS-ZP5906675128054

Contact with us and check out our terms of cooperation

Substitutes

R-HLX Concrete Screw Anchor M10 / 12.4 x 140mm, Countersunk Head, Zinc Flake, ETA-23/0707 - cardboard box - 25 pcs.

Induction hardened concrete screw anchor with countersunk head

R-HLX Concrete Screw Anchor M10 / 12.4 x 140mm, Hex Flange, Zinc Flake, ETA-23/0707 - cardboard box - 25 pcs.

Induction hardened concrete screw anchor with hex head

R-HPTIIIA4 Throughbolt M10 x 130mm, Option 1, A4 Stainless Steel - cardboard box - 50 pcs.

Zinc Plated - cardboard throughbolt anchor for cracked and non-cracked concrete

R-HPTIIZF Throughbolt M10 x 130mm, Option 1, Zinc Flake - cardboard box - 50 pcs.

Throughbolt anchor with corrosion-resistant coating for cracked and non-cracked concrete

Zinc Flake coated countersunk concrete screw anchor R-LX-CS-ZF 10x140 mm - cardboard box - 25 pcs.

Self-tapping concrete screwbolt

R-LX Concrete Screw Anchor M10 / 12.5 x 140mm, Countersunk Head, Zinc Plated - cardboard box - 25 pcs.

Self-tapping concrete screwbolt

Zinc plated coated hex concrete screw anchor, R-LX-H-ZP 10x140 mm - cardboard box - 25 pcs.

Zinc Plated Concrete Screw Anchor

R-LX Concrete Screw Anchor M10 / 12.5 x 140mm, Hex Flange, Zinc Plated - cardboard box - 25 pcs.

Self-tapping concrete screwbolt

R-HLX Concrete Screw Anchor M10 / 12.4 x 140mm, Countersunk Head, Zinc Flake, ETA-23/0707 - cardboard box - 25 pcs.

Induction hardened concrete screw anchor with countersunk head

R-HLX Concrete Screw Anchor M10 / 12.4 x 140mm, Hex Flange, Zinc Flake, ETA-23/0707 - cardboard box - 25 pcs.

Induction hardened concrete screw anchor with hex head

R-HPTIIIA4 Throughbolt M10 x 130mm, Option 1, A4 Stainless Steel - cardboard box - 50 pcs.

Zinc Plated - cardboard throughbolt anchor for cracked and non-cracked concrete

R-HPTIIZF Throughbolt M10 x 130mm, Option 1, Zinc Flake - cardboard box - 50 pcs.

Throughbolt anchor with corrosion-resistant coating for cracked and non-cracked concrete

Zinc Flake coated countersunk concrete screw anchor R-LX-CS-ZF 10x140 mm - cardboard box - 25 pcs.

Self-tapping concrete screwbolt

R-LX Concrete Screw Anchor M10 / 12.5 x 140mm, Countersunk Head, Zinc Plated - cardboard box - 25 pcs.

Self-tapping concrete screwbolt

Zinc plated coated hex concrete screw anchor, R-LX-H-ZP 10x140 mm - cardboard box - 25 pcs.

Zinc Plated Concrete Screw Anchor

R-LX Concrete Screw Anchor M10 / 12.5 x 140mm, Hex Flange, Zinc Plated - cardboard box - 25 pcs.

Self-tapping concrete screwbolt

Services

Design Consulting

Design Consulting

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

EasyFix

EasyFix

Technical library

Technical library

Installation guide

Installation manual

Installation step by step

1

Drill a hole to the required diameter and depth for rebar size being used.

2

Blow out the dust at least 4 times with the hand pump.

3

Can be unscrewed and screwed back in.

4

Tighten to the recommended torque.

5

The anchor is properly fixed in the concrete base.

Installation data

Approvals and publications

Technical library

(5)

Technical assessments(3)

ETA 17/0783

Download

ETA-17/0806

Download

UKTA-22/6346

Download
Declarations(1)

DoP-17/0783 R-LX

Download
Documents(1)

1488_CPR_0515_Z_PL_1_

Download

Catalogues and product cards

(2)

Product cards(2)

Product card

Download

Product card

Download
