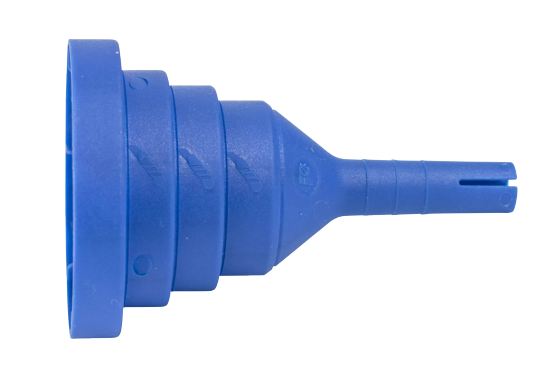

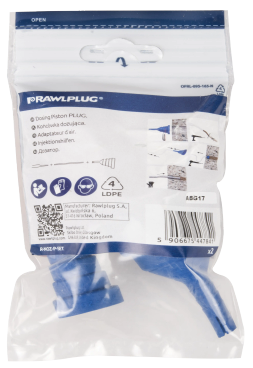

  2. R-NOZ dosing piston plug set M16-M50mm - plastic bag - 1 pc.

Universal
New

R-NOZ-P-SET

5906675447841

Resin dispensing tip in deep holes, set M16-M26+M28-M50

Define product parameters:

Packaging and quantity
Weight and bulk packaging

  • Unit pack

    1.00 set0.01 kg

  • Bulk pack

    25.00 set0.59 kg

  • Pallet

    1600.00 set38.08 kg

Features

Resin dispensing tip in deep holes, set M16-M26+M28-M50

  • Absence of air bubbles in the hole.
  • Dispensing of the appropriate volume of the resin.
  • Uniform resin injection into the hole.
  • Full control over the degree to which the hole is filled with resin.

Jakprawid_owowykona_g__bokiewklejaniepr_t_wzbrojeniowych_

Rawlplug Deep Anchorage and post-installed rebar accessories system

Concrete C12/15-C50/60

Concrete C12/15-C50/60

Approved surfaces

Anchoring glued in with reinforcing bars

Anchoring glued in with threaded rods

Concrete structures

Drilling

Reinforcement of a large slab

Packaging and quantity
Index
EAN
Catalog price for set. net

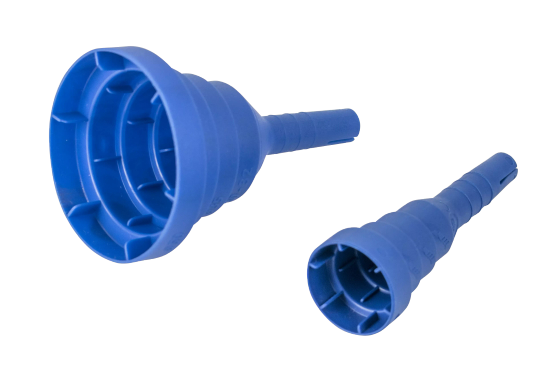

R-NOZ dosing piston plug M16-M26mm - plastic bag - 1 pc.

R-NOZ dosing piston plug M28-M50mm - plastic bag - 1 pc.

R-NOZ dosing piston plug M16-M26mm - plastic bag - 1 pc.

R-NOZ dosing piston plug M28-M50mm - plastic bag - 1 pc.

Installation manual

Installation step by step

1

Cut off about 10 cm of unmixed resin, then connect the other end of the hose to the resin mixer.

2

Cut the PISTON PLUG with the required hole diameter.

3

Connect the Piston PLUG tip to the Dosing PLUG tip.

4

Start dispensing the resin: the resin being injected will now be pushing the plug out of the hole (like a piston).

5

Prepare the resin for application. Unscrew the safety plug.

6

Cut the PISTON PLUG with the required hole diameter.
