R-OCF Stainless steel self-drilling screws for sheet metal 6.0x25 mm with washer S16 - RAL 7016 - cardboard box - 250 pcs.

Steel

R-OCF-60025S16

5906675497051

Rawlplug

Stainless steel self drilling screw with reduced drilling point guarantees optimum tightness of the fastening

Define product parameters:

Diameter
Washer
Length
Packaging and quantity
Weight and bulk packaging
  • Unit pack

    250.00 pcs.1.83 kg

  • Bulk pack

    250.00 pcs.1.83 kg

  • Pallet

    96000.00 pcs.701.95 kg

Related products

Features

Stainless steel self drilling screw with reduced drilling point guarantees optimum tightness of the fastening

  • Stainless steel self-drilling screw – manufactured using bimetal technology, combining high corrosion resistance with increased hardness of the drilling tip.
  • The thread is surface-hardened (while the shank retains its flexibility). It is protected against corrosion with a Ruspert coating (1000 hours).

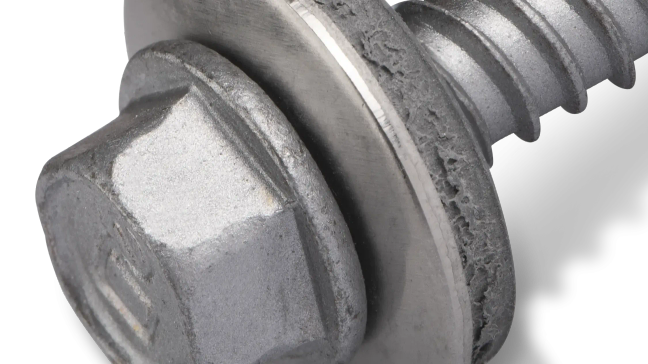

  • Stainless steel sealing washer with vulcanized EPDM – resistant to temperature fluctuations and UV radiation. The special shape of the washer ensures proper positioning of the sealing material on the outer layer of the mounted material, guaranteeing full tightness of the connection.
  • The full length thread design prevents twisting and allows application without a washer. Furthermore the specific shape and type of thread allow metal sheets to be connected together.
  • Special drilling tip geometry – reduces screw slipping during installation and ensures drilling with a reduced amount of chips.

Substrates

Metal sheet & profiles

Metal sheet & profiles

Approved surfaces

Applications

Steel structures

Profiled and cover sheets

Full list of variations

Diameter
Washer
Length
Packaging and quantity
Index
EAN
Catalog price for pack. net

Installation guide

Installation manual

Installation step by step

1

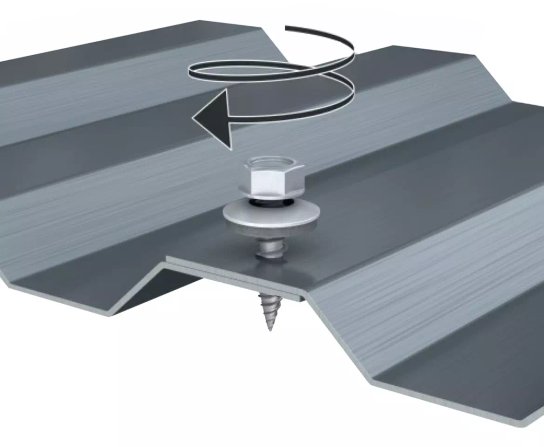

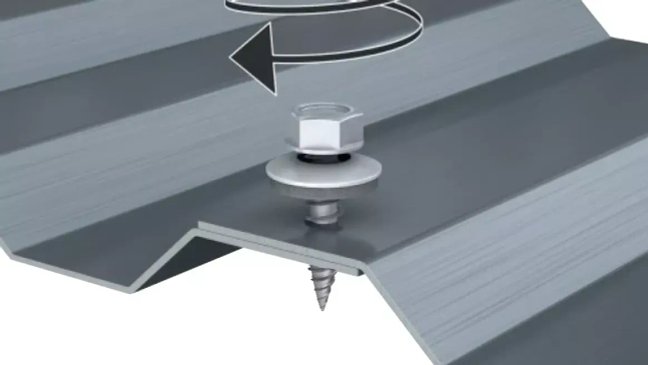

Using the magnetic attachment, tighten the screw with washer using a screwdriver with adjustable torque.

2

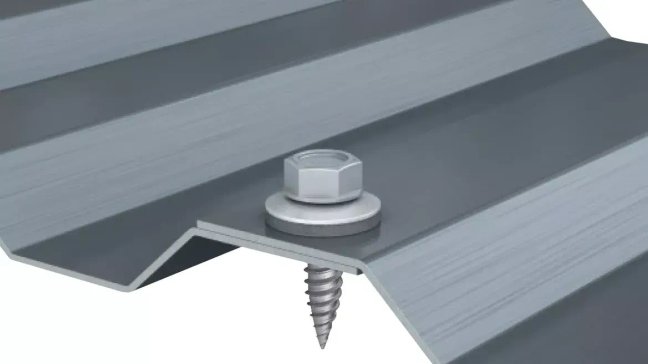

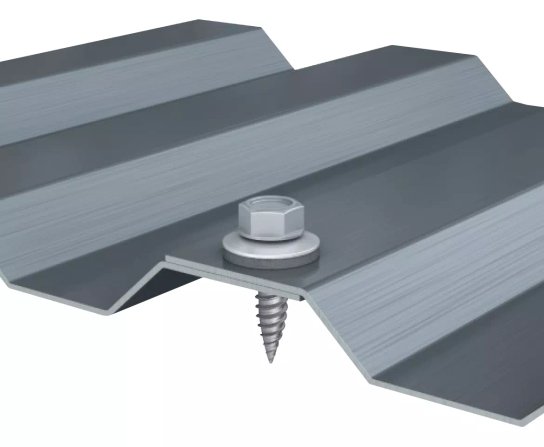

Screw properly tightened.

Approvals and publications

Technical library

(7)

Technical assessments(3)

ETA-24/0237 (2024-12-20) - Fastening screws for metal members and sheeting

Fastening screws for metal members and sheeting

ETA-13/0203

ETA-13/0203

UKTA-22/6370

UKTA-22/6370

Declarations(2)

DoP-24/0237 OCF (ETA-24/0237 - Self-drilling screws)

OCF - Fastening screws for metal members

DoP-13/0203-OCF

Certificates(2)

1488-CPR-0752/Z (ETA-24/0237 - Self-drilling screws)

CPR - ETA-24/0237 (2024-12-20) - Fastening screws for metal members and sheeting

1488-CPR-0530/Z

CPR

Catalogues and product cards

(3)

Product cards(1)

PIM_R_OCF_card

Catalogues(2)

Specification Design Guide

General Catalogue EN - PDF
