Universal
R-POR-UNO-MIX
5906675091167
Define product parameters:
Packaging and quantity
Weight and bulk packaging
Unit pack
9.00 set4.04 kg
Bulk pack
9.00 set4.04 kg
Pallet
720.00 set323.20 kg
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation
Related products
Features

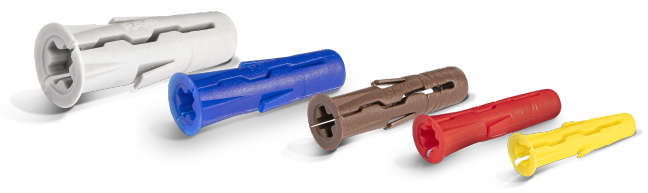

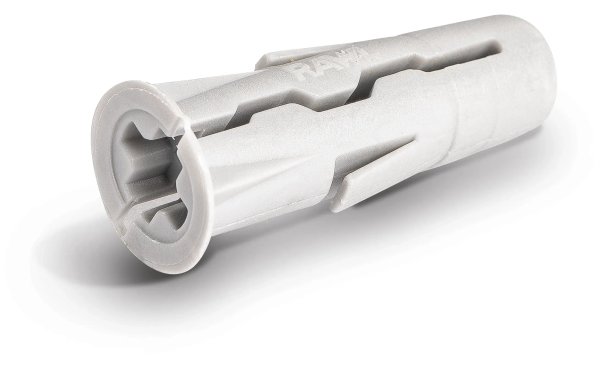

Truly universal plug which fixes into any base material, solid or hollow.
- Recommended for unknown substrates and exploited holes.
- Short length enables successful use in thin walls.
- Unique geometry guarantees maximum expansion and grip.
- 100% assurance of proper anchoring derived from unique split design of the plug in it's top part.
- Anti-rotation features prevent spinning in the hole.
- Lip prevents plug slipping into over-sized holes.
ekspert_rawlplug_acade
rawlplug_uno_universal
Approved surfaces
Packaging and quantity | Index | EAN | Catalog price for set. net |
|---|
Installation manual
Installation step by step
1

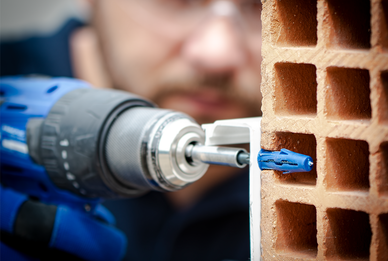

Drill a hole to the required diameter and depth for rebar size being used.
2
Clean the hole with the brush (x4).
3
Insert UNO plug into hole and tap home.
4
Insert screw of required diameter into the plug through fixture and tighten.
5
Properly fixed pin in the masonry.
