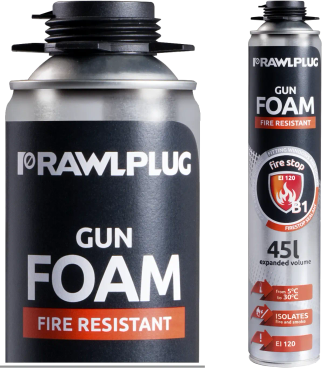

Fireproof gun and hand held foam, EN label - metal can - 500 ml

Universal

R-RPU-B1-500

5906675557724

Rawlplug

B1 – Fire resistant , low-pressure, one-component polyurethane foam with gun applicator and included hose applicator

Define product parameters:

Packaging and quantity

We will prepare this product for you after you add it to your cart and place your order. The estimated lead time is 28 days

Related products

Features

B1 – Fire resistant , low-pressure, one-component polyurethane foam with gun applicator and included hose applicator

  • Excellent adhesion to most materials and substrates used in construction.
  • Can be painted or plastered when cured
  • Ideal for mounting, sealing and soundproofing.
  • Insulates against fire, smoke and gas
  • Resistant to mould and fungi.
  • Yield up to 45 l
  • Fire-resistant - EI 240 fire resistance, providing technical approval criteria are fulfilled
  • Self-extinguishing.

Substrates

Structural steel

Structural steel

Concrete

Concrete

Wood

Wood

Stainless steel

Stainless steel

Solid concrete block

Solid concrete block

Masonry

Masonry

Aerated concrete

Aerated concrete

Aluminium

Aluminium

PVC Profile

PVC Profile

Concrete slab

Concrete slab

High-density natural stone

High-density natural stone

Solid sand-lime brick

Solid sand-lime brick

Silicate blocks

Silicate blocks

Hollow brick

Hollow brick

Vertically-perforated clay block

Vertically-perforated clay block

Hollow sand-lime brick

Hollow sand-lime brick

Ceramic hollow block

Ceramic hollow block

Hollow lightweight concrete block

Hollow lightweight concrete block

Lightweight concrete block

Lightweight concrete block

Approved surfaces

Applications

Flat roofs

Pitched roofs

Fire seals

Substitutes

Services

Design Consulting

Design Consulting

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

Designing

Designing

E-learning training

E-learning training

Learn more

Installation guide

Installation manual

Installation step by step

1

Put on protective gloves and thoroughly clean the working surface to remove dust, dirt, and grease. Remove any frost from the working substrate. Before use, ensure that the can is at a positive temperature. The optimum can temperature is +20°C.

2

Application temperature from +5°C to +30°C.

3

Shake the can vigorously for approximately 30 seconds to ensure thorough mixing of the ingredients.

4

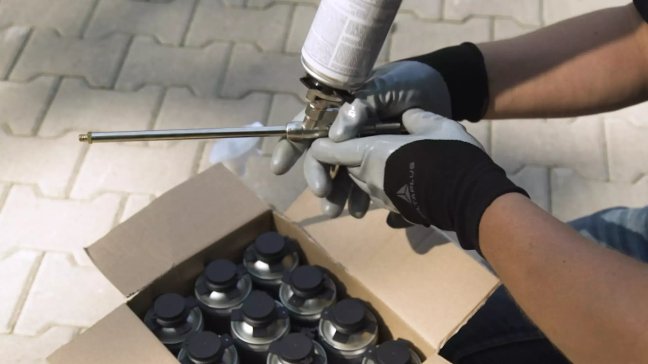

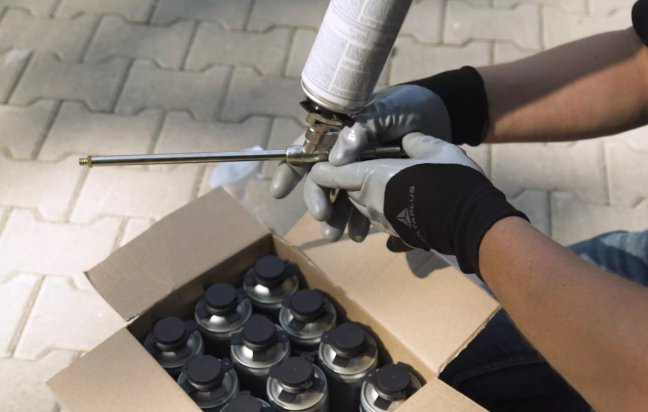

Attach the gun to the can. The working position should be "upside down".

5

Moisten the surfaces to be applied with water.

6

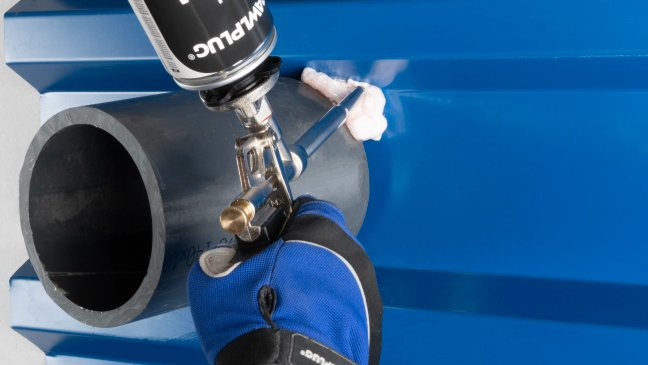

Fill the gaps from bottom to top in a zigzag pattern, alternating from one side to the other. Fill the gaps up to 60% of their depth, but not more than 3-4 cm per layer. Gaps wider than 3-4 cm should be filled in layers, after each preceding layer has hardened. After the foam has fully cured, use a knife to cut off any excess and protect it from UV rays by covering it with plaster, paint, acrylic, or silicone. If there is a pause longer than five minutes, clean the applicator nozzle with a foam cleaner. When removing the gun from the can, clean both the nozzle and the gun (both externally and internally) with a cleaner.

Approvals and publications

Technical library and approvals

Choose document:

ETA-24/0017

1488-CPR-1104/W R-RPP B1

DoP-24-0017-B1

MSDS-R-RPP-B1

Product card and catalogues

Choose product card:

Product card

Choose product catalog:

Specification Design Guide

General catalogue - PDF
