  2. Self drilling screws OC 4,8x16 mm with washer T14 - plastic bag - 100 pcs.

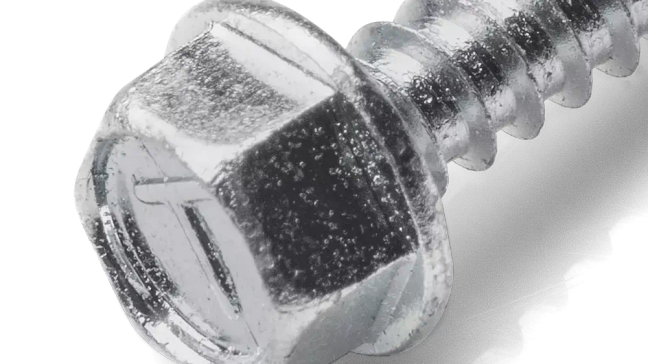

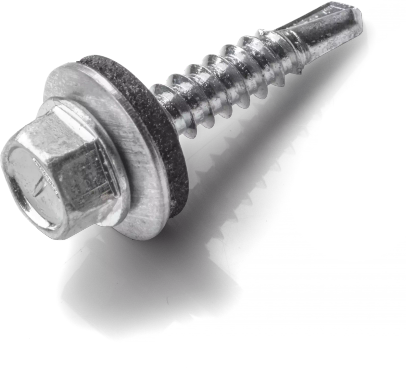

Self drilling screws OC 4,8x16 mm with washer T14 - plastic bag - 100 pcs.

Steel

R-S1-OC-48016T

5906675063645

Rawlplug

The special drill bit shape designed to provide quick and trouble-free installation in metal constructions made from cold formed sections

Define product parameters:

Diameter
Washer
Length
Packaging and quantity
Weight and bulk packaging
  • Unit pack

    5.00 pack2.16 kg

  • Bulk pack

    15.00 pack0.66 kg

  • Pallet

    1320.00 pack57.90 kg

Related products

Features

The special drill bit shape designed to provide quick and trouble-free installation in metal constructions made from cold formed sections

  • Screws available with a coloured polyester coating (RAL) provide additional corrosion protection and ensure aesthetic matching with roofing or façade cladding. UV stabilisers guarantee long-term colour durability and resistance to fading throughout the service life.
  • The case-hardened thread ensures high cutting performance and secure anchorage in the substrate, while maintaining a ductile core. This increases resistance to dynamic loads and reduces the risk of screw fracture.

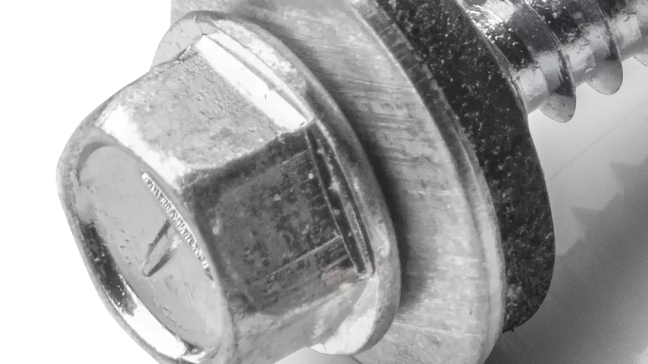

  • The self-vulcanizing EPDM sealing washer is resistant to UV radiation, ageing, and temperature fluctuations. It guarantees long-term watertightness and protects the joint against water ingress.
  • The optimised drill point geometry enables efficient drilling in steel, reducing installation time and increasing assembly efficiency

Substrates

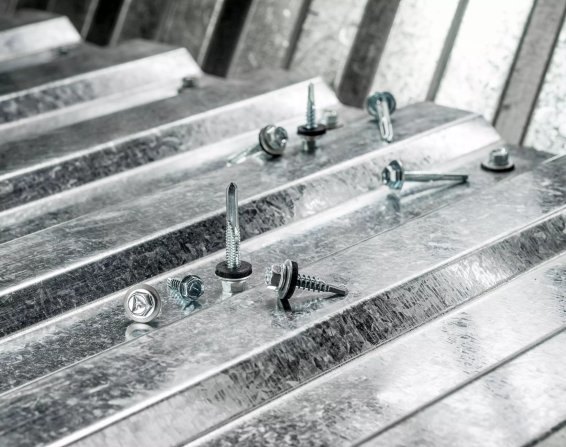

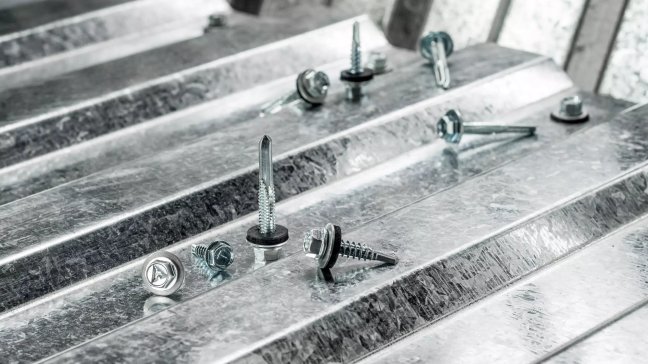

Metal sheet & profiles

Metal sheet & profiles

Structural steel

Structural steel

Approved surfaces

Applications

Drilling and screwing

Profiled and cover sheets

Full list of variations

Diameter
Washer
Length
Packaging and quantity
Index
EAN
Catalog price for pack. net

Substitutes

Installation guide

Installation manual

Installation step by step

1

Using the magnetic attachment, tighten the screw with washer using a screwdriver with adjustable torque.

2

Screw properly tightened.

Approvals and publications

Technical library

(8)

Technical assessments(3)

ETA-24/0237 (2024-12-20) - Fastening screws for metal members and sheeting

Fastening screws for metal members and sheeting

KOT-0159/2018

KOT-0159_2018_edition 2

UKTA-22/6370

UKTA-22/6370

Declarations(3)

DoP-24/0237 OC (ETA-24/0237 - Self-drilling screws)

OC - Fastening screws for metal members

KDWU-2018/0159-2

KDWU

UKTA-DoP-22/6370-OC

Certificates(2)

1488-CPR-0752/Z (ETA-24/0237 - Self-drilling screws)

CPR - ETA-24/0237 (2024-12-20) - Fastening screws for metal members and sheeting

020_UWB_0850_Z

UWB

Catalogues and product cards

(4)

Product cards(1)

PIM_R_OC_card

Catalogues(3)

Catalogue Offer (overview) - EN

Specification Design Guide

General Catalogue EN - PDF
