Universal

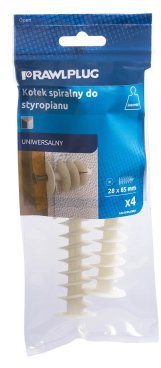

R-S3-ISOPLUG80/4
5906675249292
Define product parameters:
Length
Packaging and quantity
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation
Features

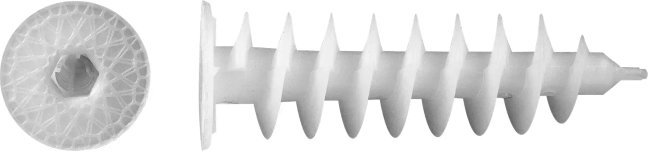

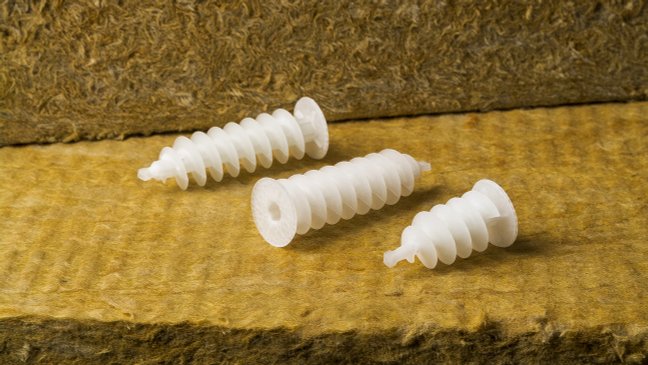

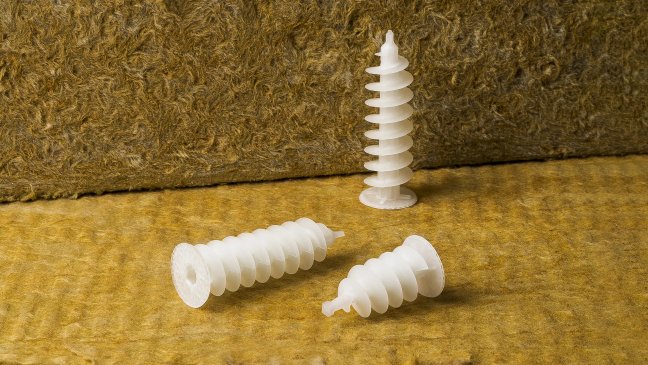

Spiral fixing for EPS
- Unique construction of screw thread section provides support for wide variety of diameters, without limitation of screws’ length.
- Unique self-drilling point allow precise installation through any type of façade plaster, preventing from breaking its surface.
- No loss of thermal transmittance at the anchoring point.
- Ribs on the internal surface of plate provide locking in surface during driving screws in and out and even surface of plug with substrate after fixing.
- Proper shape of TX/HEX socket provides stabilization during the process of driving in by providing necessary grip for the bit.
- Surface of the plate allows hiding installation hole and perfectly matches the surface of plaster layer, not deformating it.
- Can be installed with commercial drill/drive tool.
iso_plug_xl
rawlplug_isoplug_insul
Approved surfaces
Length | Packaging and quantity | Index | EAN | Catalog price for pack. net |
|---|
Installation manual
Installation step by step
1
Drive ISO-PLUG into the insulation material (manually, or with an electric screwdriver) until installation depth reached.
2
Fixtures are fixed with a proper screw diameter. R-ISO-PLUG-50 with diameter of the screw between 4-5mm and R-ISO-PLUG-80 with screw diameter 6-7mm.
3
Insert screw of required diameter into plug through fixture and tighten.
4

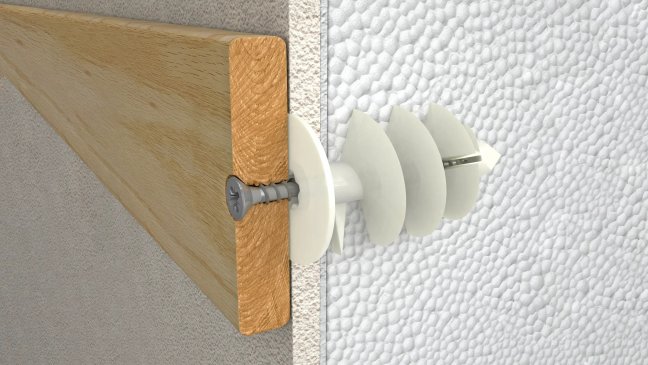

Correctly installed ISO-PLUG with screw.
Installation data
