Solid walls
R-S3-XPT08095/4
5906675260051
Define product parameters:
Diameter
Length
Packaging and quantity
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation
Related products
Features

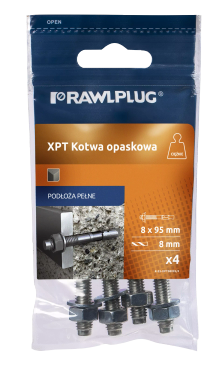

Throughbolt for non-cracked concrete
- Optimized expander design with six grip features allows for a high load-bearing capacity.
- High quality with cost effectiveness.
- Design allows drilling and installing directly through the fixture and helps to reduce installation effort.
- Embedment depth markings help to ensure precise installation of the anchor.
- Cold formed body ensures consistent dimensional accuracy.
- Simple through-installation (drilling and installation through fixed material).
- Suitable for reduced embedment to avoid contact with reinforcement.
rawlplug_rxpt_throughb
Rawlplug Academy: czym jest i jak działa kotwa mechaniczna?
Approved surfaces
Diameter | Length | Packaging and quantity | Index | EAN | Catalog price for pack. net |
|---|
Installation manual
Installation step by step
1
Drill a hole to the required diameter and depth for rebar size being used.
2
Blow out the dust at least 4 times with the hand pump.
3
Lightly tap the throughbolt through the fixture into hole with a hammer, until fixing depth is reached.
4
Tighten to the recommended torque.
5
The anchor is properly fixed in the concrete base.
Installation data
