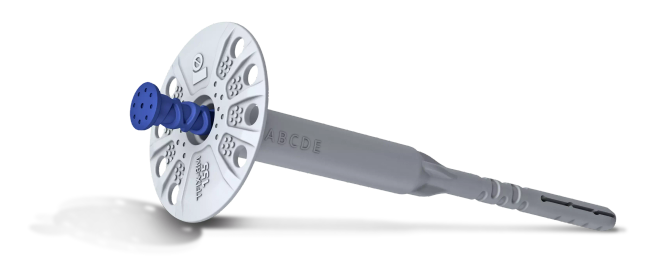

R-TFIX-8M Universal Hammer-In Façade Fixing with Plastic Overmoulded Nail 8 x 215mm - cardboard box - 100 pcs.

Universal
Bestseller

R-TFIX-8M-215

5906675269474

Versatile hammer-in facade fixing with steel nail recommended for ETICS

Define product parameters:

Length
Packaging and quantity
Weight and bulk packaging
  • Unit pack

    100.00 pcs.4.25 kg

  • Bulk pack

    100.00 pcs.4.25 kg

  • Pallet

    4000.00 pcs.170.00 kg

Features

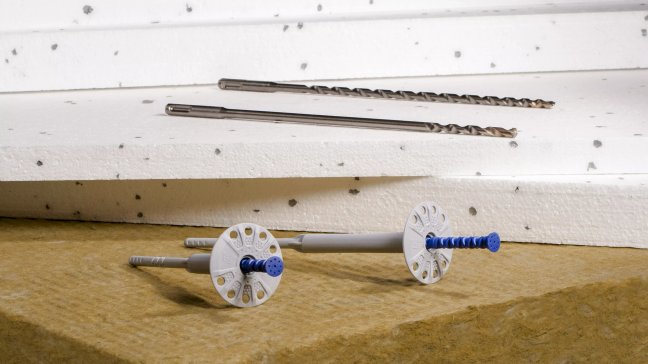

Versatile hammer-in facade fixing with steel nail recommended for ETICS

  • Quick and easy installation in all substrates (categories A, B, C, D, E).
  • Unique sleeve compression zone for precision installations.
  • Reduced point thermal transmittance to 0.001 W/K for sizes 135-295 mm and to 0.002 W/K for sizes 95-115 mm.
  • Pre-assembled components of the fixing allow you to save time.

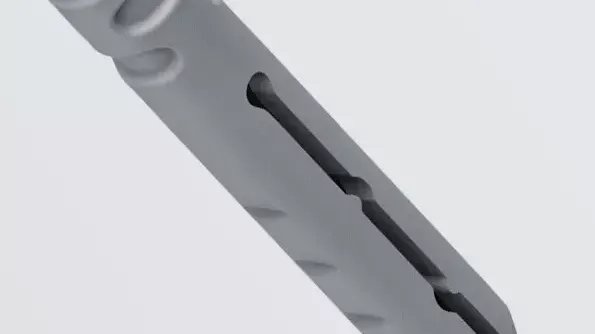

  • Highest loads with anchoring zone reduced in length to 25 mm.
  • Excellent plate stiffness (value 1.0 kN/mm) ensures smooth elevation surface and stable insulation system.

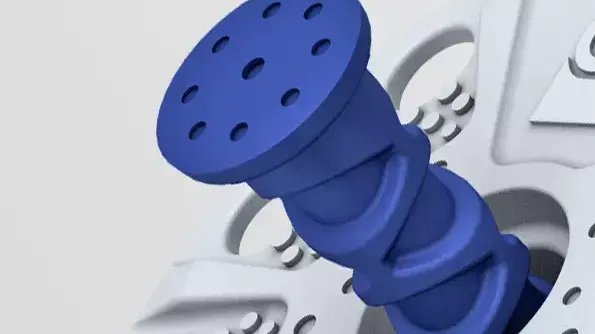

  • Increased head diameter enabling centric hammer driving for improvedinstallation comfort.

Product video

R_TFIX_8M_countersunkinstallationinEPS_R_KFS_63_10_

R_TFIX_8M_monta_powierzchniowywwe_niemineralnej

R_TFIX_8M_monta_powierzchniowywstyropianie

R_TFIX_8M_countersunkinstallationinEPS_R_KFS_63_

montaz_wbijanego_kolka

rtfix8m_hammerin_facad

Rawlplug_Academy_jaki_lacznik_fasadowy_wybrac

Krok_po_kroku_jak_montowac_kolki_fasadowe_z_trzpieniem_wbijanym

Substrates

Concrete C12/15-C50/60 (A)

Concrete C12/15-C50/60 (A)

External wall panel of concrete C16/20 – C50/60 (A)

External wall panel of concrete C16/20 – C50/60 (A)

Solid brick (B)

Solid brick (B)

Solid sand-lime brick (B)

Solid sand-lime brick (B)

Hollow brick (C)

Hollow brick (C)

Hollow sand-lime brick (C)

Hollow sand-lime brick (C)

Lightweight concrete block (C)

Lightweight concrete block (C)

Hollow lightweight concrete block (D)

Hollow lightweight concrete block (D)

Autoclaved aerated concrete (E)

Autoclaved aerated concrete (E)

Vertically-perforated clay block (C)

Vertically-perforated clay block (C)

Approved surfaces

Applications

Facades - thermal insulation systems

Full list of variations

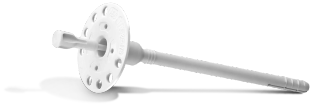

Substitutes

Expert advice

Services

Installation guide

Installation manual

Installation step by step

1

Drill a hole to the required diameter and depth for rebar size being used.

2

Clean drilled hole 3 times.

3

Insert the fixing into the drilled hole.

4

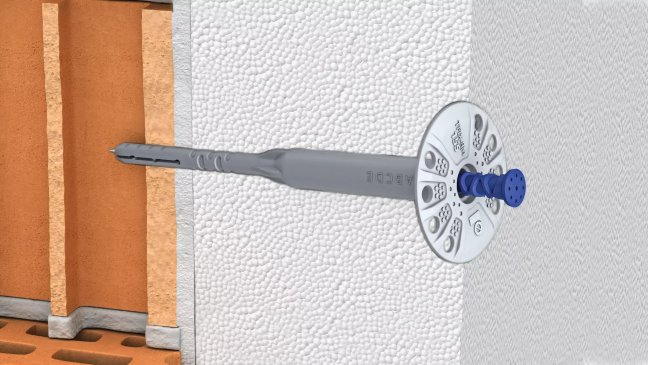

Drive the pin into the expansion sleeve until the pin, the pin plate and thermal insulation are aligned on one surface.

5

Correctly fastened R-TFIX-8M pin.

Installation data
Design data
Use categoryA, B, C, DE
Hole diameter in substrated0[mm]
888
Min. installation depth hnom[mm]
2545652)
Min. substrate thickness 1)hmin[mm]
100100100
Min. hole depth in substrateh0[mm]
3555752)
Min. edge distancecmin[mm]
100100100
Min. spacingsmin[mm]
100100100
1) Min. thickness of external wall panel of concrete hmin = 40 mm
2) Do not concern R-TFIX-8M-095 and R-TFIX-8M-115
SKUfixing_diameter_d_mmfixing_plate_diameter_D_mmfixing_length_small_l_mmfixture_recommended_thickness_tfix_A_B_C_D_mmfixture_recommended_thickness_tfix_E_mm860956040
8601158060
86013510080/60
860155120100/80
860175140120/100
860195160140/120
860215180160/140
860235200180/160
860255220200/180
860275240220/200
860295260240/220
s1_fixing_typeR-TFIX-8MR-TFIX-8M-095
s4_embedment_depth_hsubef_sub_mm25 3)/45 4)25 3)/45 4)
s22_characteristic_load
s23_tension_load
s4_concrete_c12_15_a_sup1_sup_fsubrk_sub_kn1,11,1
s4_concrete_c16_20__c50_60_a_sup1_sup_fsubrk_sub_kn1,21,2
s4_external_wall_panel_of_concrete_c16_20__c50_60_a_sup1__2_sup_fsubrk_sub_kn1-
s4_solid_clay_bricks_mz_min_12mpa_b_sup1_sup_fsubrk_sub_kn1,1-
s4_solid_sandlime_bricks_min_12mpa_b_sup1_sup_fsubrk_sub_kn1,21,2
s4_lightweight_aggregate_concrete_solid_blocks_vbl_min_4mpa_b_sup2_sup_fsubrk_sub_kn1,21,2
s4_perforated_sandlime_bricks_sendwix_8dfld_min_21mpa_c_sup2_sup_fsubrk_sub_kn-0,5
s4_perforated_sandlime_bricks_ksl_min_12mpa_c_sup1_sup_fsubrk_sub_kn1,1-
s4_vertically_perforated_clay_bricks_porotherm_min_15mpa_c_sup2_sup_fsubrk_sub_kn0,90,9
s4_teknoamerblok_pk17_8_min_12_5mpa_c_sup1_sup_fsubrk_sub_kn0,5-
s4_vertically_perforated_clay_bricks_hlz_min12mpa_c_sup2_sup_fsubrk_sub_kn0,75-
s4_lightweight_concrete_hollow_block__hbl_min_2mpa_c_sup2_sup_fsubrk_sub_kn-0,6
s4_lightweight_aggregate_concrete_hollow_blocks_lac_min_4mpa_d_sup2_sup_fsubrk_sub_kn-0,5
s4_autoclaved_aerated_concrete_aac5_min_5mpa_e_hsubef_sub__45mm_sup2_sup_fsubrk_sub_kn0,6-
s4_autoclaved_aerated_concrete_aac5_min_5mpa_e_hsubef_sub__65mm_sup2_sup_fsubrk_sub_kn1-
s4_autoclaved_aerated_concrete_aac4_min_4mpa_e_sup2_sup_fsubrk_sub_kn-0,55
s22_design_load
s23_tension_load
s4_concrete_c12_15_a_sup1_sup_fsubrd_sub_kn0,60,6
s4_concrete_c16_20__c50_60_a_sup1_sup_fsubrd_sub_kn0,60,6
s4_external_wall_panel_of_concrete_c16_20__c50_60_a_sup1__2_sup_fsubrd_sub_kn0,5-
s4_solid_clay_bricks_mz_min_12mpa_b_sup1_sup_fsubrd_sub_kn0,6-
s4_solid_sandlime_bricks_min_12mpa_b_sup1_sup_fsubrd_sub_kn0,60,6
s4_lightweight_aggregate_concrete_solid_blocks_vbl_min_4mpa_b_sup2_sup_fsubrd_sub_kn0,60,6
s4_perforated_sandlime_bricks_sendwix_8dfld_min_21mpa_c_sup2_sup_fsubrd_sub_kn-0,3
s4_perforated_sandlime_bricks_ksl_min_12mpa_c_sup1_sup_fsubrd_sub_kn0,6-
s4_vertically_perforated_clay_bricks_porotherm_min_15mpa_c_sup2_sup_fsubrd_sub_kn0,50,5
s4_teknoamerblok_pk17_8_min_12_5mpa_c_sup1_sup_fsubrd_sub_kn0,3-
s4_vertically_perforated_clay_bricks_hlz_min12mpa_c_sup2_sup_fsubrd_sub_kn0,4-
s4_lightweight_concrete_hollow_block__hbl_min_2mpa_c_sup2_sup_fsubrd_sub_kn-0,3
s4_lightweight_aggregate_concrete_hollow_blocks_lac_min_4mpa_d_sup2_sup_fsubrd_sub_kn-0,3
s4_autoclaved_aerated_concrete_aac5_min_5mpa_e_hsubef_sub__45mm_sup2_sup_fsubrd_sub_kn0,3-
s4_autoclaved_aerated_concrete_aac5_min_5mpa_e_hsubef_sub__65mm_sup2_sup_fsubrd_sub_kn0,5-
s4_autoclaved_aerated_concrete_aac4_min_4mpa_e_sup2_sup_fsubrd_sub_kn-0,3
s22_recommended_load
s23_tension_load
s4_concrete_c12_15_a_sup1_sup_fsubrec_sub_kn0,40,4
s4_concrete_c16_20__c50_60_a_sup1_sup_fsubrec_sub_kn0,40,4
s4_external_wall_panel_of_concrete_c16_20__c50_60_a_sup1__2_sup_fsubrec_sub_kn0,4-
s4_solid_clay_bricks_mz_min_12mpa_b_sup1_sup_fsubrec_sub_kn0,4-
s4_solid_sandlime_bricks_min_12mpa_b_sup1_sup_fsubrec_sub_kn0,40,4
s4_lightweight_aggregate_concrete_solid_blocks_vbl_min_4mpa_b_sup2_sup_fsubrec_sub_kn0,40,4
s4_perforated_sandlime_bricks_sendwix_8dfld_min_21mpa_c_sup2_sup_fsubrec_sub_kn-0,2
s4_perforated_sandlime_bricks_ksl_min_12mpa_c_sup1_sup_fsubrec_sub_kn0,4-
s4_vertically_perforated_clay_bricks_porotherm_min_15mpa_c_sup2_sup_fsubrec_sub_kn0,30,3
s4_teknoamerblok_pk17_8_min_12_5mpa_c_sup1_sup_fsubrec_sub_kn0,2-
s4_vertically_perforated_clay_bricks_hlz_min12mpa_c_sup2_sup_fsubrec_sub_kn0,3-
s4_lightweight_concrete_hollow_block__hbl_min_2mpa_c_sup2_sup_fsubrec_sub_kn-0,2
s4_lightweight_aggregate_concrete_hollow_blocks_lac_min_4mpa_d_sup2_sup_fsubrec_sub_kn-0,2
s4_autoclaved_aerated_concrete_aac5_min_5mpa_e_hsubef_sub__45mm_sup2_sup_fsubrd_sub_kn0,2-
s4_autoclaved_aerated_concrete_aac5_min_5mpa_e_hsubef_sub__65mm_sup2_sup_fsubrec_sub_kn0,4-
s4_autoclaved_aerated_concrete_aac4_min_4mpa_e_sup2_sup_fsubrec_sub_kn-0,2
s24_sup1_sup_hammer_drilling
s24_sup2_sup_rotary_drilling_only
s24_sup3_sup_use_category_a__b__c__d
s24_sup4_sup_use_category_e
s1_fixing_typeR-TFIX-8M
s4_diameter_of_the_anchor_plate_dsubf_sub_mm60
s4_plate_resistance__kn1,53
s4_plate_stiffness__kn_mm1
Fixing typeR-TFIX-8MR-TFIX-8M-095
Insulation thickness 70 - 90mmχ[W/K]
-0,002
Insulation thickness 100 - 260mmχ[W/K]
0,001-

Approvals and publications

Technical library

(11)

Technical assessments(3)

ETA-17/0592 (2022-08-17)

Plastic anchors for fixing of external thermal insulation composite systems with rendering

UKTA-22/6290_R-TFIX-8M (2022-11-11)

Plastic anchors for fixing of external thermal insulation composite systems with rendering

KOT-2021/1550 (2021-03-09)

Plastic anchors for fixing of external thermal insulation composite systems with rendering in concrete and masonry

Declarations(4)

DoP-17/0592-R-TFIX-8M (ETA-17/0592)

Plastic anchors for fixing of external thermal insulation composite systems with rendering

DoP-17/0592-R-TFIX-8M-095 (ETA-17/0592)

Plastic anchors for fixing of external thermal insulation composite systems with rendering

DoP-17/0592-R-TFIX-8M-115 (ETA-17/0592)

Plastic anchors for fixing of external thermal insulation composite systems with rendering

UKTA-DoP-22/6290-R-TFIX-8M (2023-10-02)

Plastic anchors for fixing of external thermal insulation composite systems with rendering

Certificates(4)

1488-CPR-0545/Z (ETA-17/0592)

Plastic anchors for fixing of external thermal insulation composite systems with rendering

020_UWB-1064/Z (KOT-2021/1550-1)

Plastic anchors for fixing of external thermal insulation composite systems with rendering in concrete and masonry

EPD-R-TFIX-8M (2025-10-31)

Type III Environmental Declaration Certificate

EPD-01-07/2026 (2026-07-27) - Hammer-in facade fixings

Hammer-in facade fixings

Catalogues and product cards

(5)

Product cards(1)

Product card

Catalogues(4)

Catalogue Offer (overview) - EN

Specification Design Guide

General Catalogue EN 2026/27

Leaflet R_TFIX_8M
