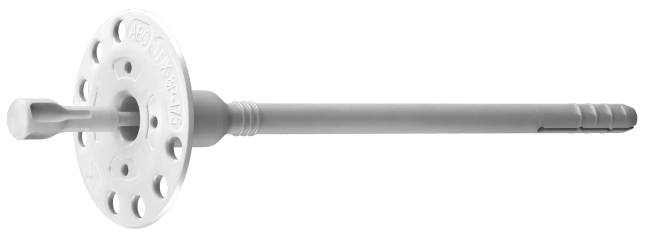

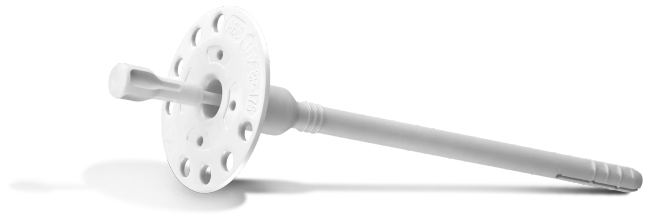

  2. Hammer-in facade fixing with plastic pin TFIX-8P 215 mm - cardboard box - 100 pcs.

Hammer-in facade fixing with plastic pin TFIX-8P 215 mm - cardboard box - 100 pcs.

Universal

TFIX-8P-215-2

5906675086521

Versatile hammer-in facade fixing with plastic nail recommended for ETICS

Define product parameters:

Length
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    100.00 pcs.2.87 kg

  • Bulk pack

    100.00 pcs.2.87 kg

  • Pallet

    4000.00 pcs.114.68 kg

Related products

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 150 x 210mm, PGM Approved - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Insulation retaining plate R-KWL 140 mm, polyamide - cardboard box - 200 pcs.

Insulation retaining plate for use in combination with facade fixings from TFIX and KI ranges

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 200 x 260mm, PGM Approved - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Insulation retaining plate R-KWL 90 mm, polyamide - cardboard box - 200 pcs.

Insulation retaining plate for use in combination with facade fixings from TFIX and KI ranges

Brickdrill SDS PLUS non-impact drill bits 8.0x260 m - plastic hanger - 1 pc.

Drill bits for non-impact drilling in ceramic materials

Aggressor SDS Plus drill bits 8x200x260 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

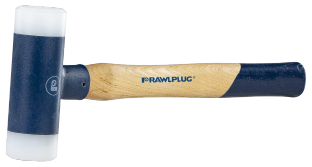

Dead blow hammer 0,6 kg - label - 1 pc.

Hammer with a special system that absorbs the impact energy

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 150 x 210mm, PGM Approved - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Insulation retaining plate R-KWL 140 mm, polyamide - cardboard box - 200 pcs.

Insulation retaining plate for use in combination with facade fixings from TFIX and KI ranges

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 200 x 260mm, PGM Approved - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Insulation retaining plate R-KWL 90 mm, polyamide - cardboard box - 200 pcs.

Insulation retaining plate for use in combination with facade fixings from TFIX and KI ranges

Brickdrill SDS PLUS non-impact drill bits 8.0x260 m - plastic hanger - 1 pc.

Drill bits for non-impact drilling in ceramic materials

Aggressor SDS Plus drill bits 8x200x260 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Dead blow hammer 0,6 kg - label - 1 pc.

Hammer with a special system that absorbs the impact energy

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

Features

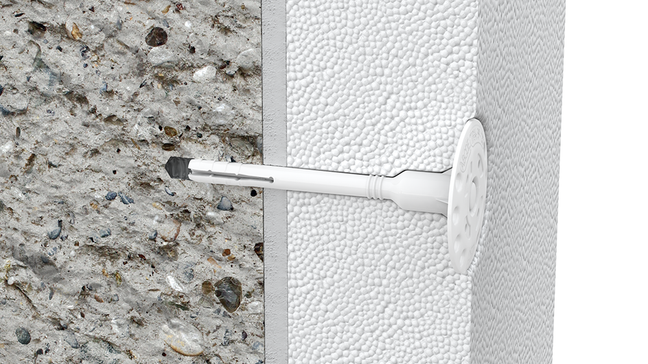

Versatile hammer-in facade fixing with plastic nail recommended for ETICS

  • Can be used with additional KWL insulation holding plate, available in 90, 110 and 140 mm flange sizes (recommended for soft insulation materials such as mineral wool).
  • Pre-assembled screw saves time and labour.
  • Installation in all base materials (categories A,B,C,D,E).
  • Expansion zone designed for low embedment depths, reducing the amount of drilling required.
  • The plastic nail reduces heat transmission (value 0.0 W/K).

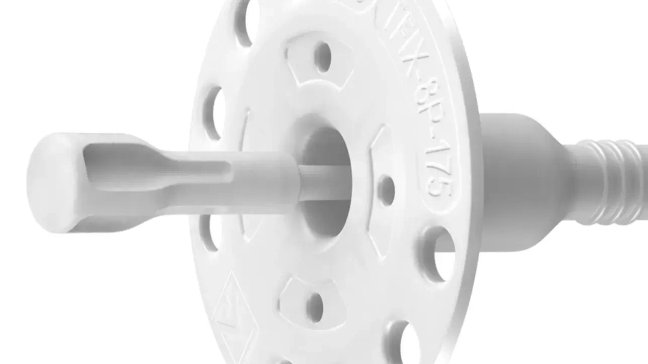

  • Unique nylon pin design reinforced with glass fibre allows fast and trouble-free installation with correct expansion of the plug.

Product video

Rawlplug TFIX-8P Facade Fixing with Plastic Pin

TFIX-8P: surface installation in EPS

Rawlplug Academy: jaki łącznik fasadowy wybrać

Krok po kroku: jak montować kołki fasadowe z trzpieniem wbijanym

Substrates

Concrete C12/15-C50/60 (Use category A)

Concrete C12/15-C50/60 (Use category A)

Solid brick (Use category B)

Solid brick (Use category B)

Solid sand-lime brick (Use category B)

Solid sand-lime brick (Use category B)

Hollow brick (Use category C)

Hollow brick (Use category C)

Vertically-perforated clay block (Use category C)

Vertically-perforated clay block (Use category C)

Hollow sand-lime brick (Use category C)

Hollow sand-lime brick (Use category C)

Lightweight concrete block (Use category C)

Lightweight concrete block (Use category C)

Hollow lightweight concrete block (Use category D)

Hollow lightweight concrete block (Use category D)

Lightweight concrete

Lightweight concrete

Aerated concrete block (Use category D)

Aerated concrete block (Use category D)

Autoclaved aerated concrete (Use Category E)

Autoclaved aerated concrete (Use Category E)

Approved surfaces

Applications

Facades - thermal insulation systems

Substitutes

R-TFIX-8M Universal Hammer-In Façade Fixing with Plastic Overmoulded Nail 8 x 215mm - cardboard box - 100 pcs.

Versatile hammer-in facade fixing with steel nail recommended for ETICS.

R-TFIX-8M Universal Hammer-In Façade Fixing with Plastic Overmoulded Nail 8 x 215mm - cardboard box - 100 pcs.

Versatile hammer-in facade fixing with steel nail recommended for ETICS.

Services

Technical Support 2

Technical Support 2

Rawlplug Academy

Rawlplug Academy

Designing

Designing

EasyFix

EasyFix

Installation guide

Installation manual

Installation step by step

1

Drill a hole of required diameter and depth.

2

Clean the hole.

3

Bottom side of the plate must be flush with the ETICS.

4

Lightly tap the plastic nail into the plastic sleeve until fixing is secure and flush with insulation material.

5

In soft insulation panels the fixing should be combined with insulation retaining plates KWL diameter 90, 110, 140 mm.

Installation data

Approvals and publications

Technical library and approvals

Choose document:

ETA-13/0845

1488-CPR-0559/Z

DoP-13/0845 TFIX-8P

UKTA-22/6340

UKTA-DoP-22/6340-TFIX-8P

Product card and catalogues

Choose product card:

Product card

Choose product catalog:

Specification Design Guide

General catalogue - PDF
