  1. Mainpage

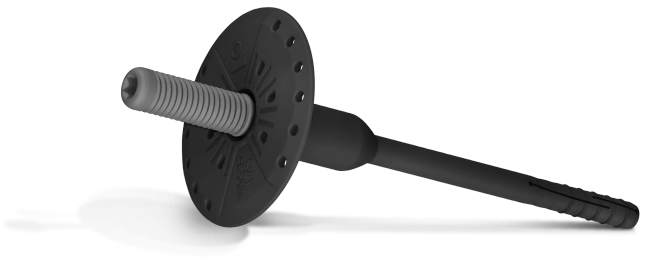

  2. Universal screw-in facade fixings with plastic overmoulded screw R-TFIX-8S-UV 175mm, black, UV resistance - cardboard box - 200 pcs.

Universal
New

R-TFIX-8S-175-UV

5906675559513

Certified facade fixings for mechanical fastening of insulation boards in ventilated facade systems.

Define product parameters:

Length
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    200.00 pcs.7.78 kg

  • Bulk pack

    200.00 pcs.7.78 kg

  • Pallet

    6400.00 pcs.248.80 kg

Related products

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 250 x 310mm, PGM Approved - plastic hanger - 1 pc.

Brickdrill SDS PLUS non-impact drill bits 8.0x310 m - plastic hanger - 1 pc.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

Aggressor SDS Plus drill bits 8x250x310 mm - plastic hanger - 1 pc.

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

R-TFIX-8S Setting Tool, TX40 For Surface Installation - cardboard box - 1 pc.

Insulation retaining plate R-KWL-UV 140 mm, polyamide, black, UV resistance - cardboard box - 200 pcs.

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 250 x 310mm, PGM Approved - plastic hanger - 1 pc.

Brickdrill SDS PLUS non-impact drill bits 8.0x310 m - plastic hanger - 1 pc.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

Aggressor SDS Plus drill bits 8x250x310 mm - plastic hanger - 1 pc.

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

R-TFIX-8S Setting Tool, TX40 For Surface Installation - cardboard box - 1 pc.

Insulation retaining plate R-KWL-UV 140 mm, polyamide, black, UV resistance - cardboard box - 200 pcs.

Features

Certified facade fixings for mechanical fastening of insulation boards in ventilated facade systems.

  • The sleeve is made of UV-resistant polypropylene.
  • The shortest embedment depth is 25 mm at the maximum strength parameters.
  • The black sleeve combined with the black R-KWL insulation retaining plate with a diameter of 140 mm ensures no visible insulation fixing points on ventilated facades.
  • Quick and easy installation in all substrates (categories A, B, C, D, E).
  • Unique design allows for high load-bearing capacities. This reduces the quantity of fixings required per square metre of insulation.
  • The long plastic overmoulding on the R-TFIX-8S screw minimises thermal bridging (value 0,001-0,002 W/K), contributing to energy-saving benefits.
  • Plate stiffness (value 0.5 kN/mm) ensures smooth elevation surface and stable insulation system.

Screw-in facade fixings R-TFIX8S-UV

Concrete C12/15-C50/60 (A)

Concrete C12/15-C50/60 (A)

Solid brick (B)

Solid brick (B)

Solid sand-lime brick (B)

Solid sand-lime brick (B)

Hollow brick (C)

Hollow brick (C)

Hollow sand-lime brick (C)

Hollow sand-lime brick (C)

Lightweight concrete block (C)

Lightweight concrete block (C)

Hollow lightweight concrete block (D)

Hollow lightweight concrete block (D)

Aerated concrete

Aerated concrete

Approved surfaces

Facades - thermal insulation systems

Length
Packaging and quantity
Index
EAN
Catalog price for pack. net

R-TFIX-8S Universal Screw-In Façade Fixing with Plastic Overmoulded Screw 8 x 175mm - cardboard box - 200 pcs.

Universal screw-in facade fixings without plastic overmoulded screw R-TFIX-8S-X 8x175 mm - cardboard box - 200 pcs.

R-TFIX-8S Universal Screw-In Façade Fixing with Plastic Overmoulded Screw 8 x 175mm - cardboard box - 200 pcs.

Universal screw-in facade fixings without plastic overmoulded screw R-TFIX-8S-X 8x175 mm - cardboard box - 200 pcs.

Installation manual

Installation step by step

1

Drill a hole to the required diameter and depth for rebar size being used.

2

Clean drilled hole 3 times.

3

Place the T40 mounting tip in the recess of the plastic part of the R-TFIX-8S-UV screw, insert the pin into the drilled hole.

4

When tightening, press the tip, keeping it precisely perpendicular to the elevation.

5

Tighten the plug screw until the appropriate embedding depth is reached (the plate should be on the surface with a thermal insulation layer).

6

Correctly installed R-TFIX-8S-UV

Installation data
