  2. Universal screw-in facade fixings with plastic overmoulded screw R-TFIX-8S 8x275 - cardboard box - 100 pcs.

Universal screw-in facade fixings with plastic overmoulded screw R-TFIX-8S 8x275 - cardboard box - 100 pcs.

Universal
Bestseller

R-TFIX-8S-275

5906675417561

Versatile screw-in facade fixing with high performance in all base materials recommended for ETICS

Define product parameters:

Length
Packaging and quantity

Related products

R-TFIX-CAP Polystyrene cap EPS 63x10 mm, white - cardboard box - 100 pcs.

Post-installed cap reduces heat transmission and results in a homogenous insulation surface

R-TFIX-CAP Mineral wool cap 63x10 mm - cardboard box - 100 pcs.

Post-installed cap reduces heat transmission and results in a homogenous insulation surface

Rebardrill SDS Plus drill bits 8x250x310 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Insulation retaining plate R-KWL 140 mm, polyamide - cardboard box - 200 pcs.

Insulation retaining plate for use in combination with facade fixings from TFIX and KI ranges

Insulation retaining plate R-KWL 90 mm, polyamide - cardboard box - 200 pcs.

Insulation retaining plate for use in combination with facade fixings from TFIX and KI ranges

R-TFIX-CAP Polystyrene cap EPS 63x10 mm, grey - cardboard box - 100 pcs.

Post-installed cap reduces heat transmission and results in a homogenous insulation surface

Aggressor SDS Plus drill bits 8x250x310 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Brickdrill SDS PLUS non-impact drill bits 8.0x310 m - plastic hanger - 1 pc.

Drill bits for non-impact drilling in ceramic materials

Insulation retaining plate R-KWX 110 mm with perforator - cardboard box - 100 pcs.

Joining retaining plate with perforator for countersunk installation in mineral wool insulation boards

Counterbore plastic cutter for EPS and mineral wool 63x10 mm - cardboard box - 1 pc.

Cutter accessory for counterbored installation of TFIX hammer-in facade insulation fixings

R-TFIX-8S Setting tool TX40 for surface installation, red - cardboard box - 1 pc.

TX40 Setting tool with integrated disc for surface installation of screw-in fixing R-TFIX-8S

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

R-TFIX-CAP Polystyrene cap EPS 63x10 mm, white - cardboard box - 100 pcs.

Post-installed cap reduces heat transmission and results in a homogenous insulation surface

R-TFIX-CAP Mineral wool cap 63x10 mm - cardboard box - 100 pcs.

Post-installed cap reduces heat transmission and results in a homogenous insulation surface

Rebardrill SDS Plus drill bits 8x250x310 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Insulation retaining plate R-KWL 140 mm, polyamide - cardboard box - 200 pcs.

Insulation retaining plate for use in combination with facade fixings from TFIX and KI ranges

Insulation retaining plate R-KWL 90 mm, polyamide - cardboard box - 200 pcs.

Insulation retaining plate for use in combination with facade fixings from TFIX and KI ranges

R-TFIX-CAP Polystyrene cap EPS 63x10 mm, grey - cardboard box - 100 pcs.

Post-installed cap reduces heat transmission and results in a homogenous insulation surface

Aggressor SDS Plus drill bits 8x250x310 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Brickdrill SDS PLUS non-impact drill bits 8.0x310 m - plastic hanger - 1 pc.

Drill bits for non-impact drilling in ceramic materials

Insulation retaining plate R-KWX 110 mm with perforator - cardboard box - 100 pcs.

Joining retaining plate with perforator for countersunk installation in mineral wool insulation boards

Counterbore plastic cutter for EPS and mineral wool 63x10 mm - cardboard box - 1 pc.

Cutter accessory for counterbored installation of TFIX hammer-in facade insulation fixings

R-TFIX-8S Setting tool TX40 for surface installation, red - cardboard box - 1 pc.

TX40 Setting tool with integrated disc for surface installation of screw-in fixing R-TFIX-8S

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

Features

Versatile screw-in facade fixing with high performance in all base materials recommended for ETICS

  • Unique design allows for high load-bearing capacities. This reduces the quantity of fixings required per square metre of insulation.
  • Pre-assembled screw saves time and labour.
  • Quick and easy installation in all substrates (categories A, B, C, D, E).
  • Unique sleeve compression zone for precision installations.
  • Plate stiffness (value 0.5 kN/mm) ensures smooth elevation surface and stable insulation system.
  • The long plastic overmoulding on the R-TFIX-8S screw minimises thermal bridging (value 0,001-0,002 W/K), contributing to energy-saving benefits.
  • The shortest embedment depth is 25 mm at the maximum strength parameters.

Product video

R-TFIX-8S: countersunk installation in EPS (R-TFIX TOOL GREEN)

R-TFIX-8S montaż powierzchniowy w wełnie mineralnej

R-TFIX-8S: montaż powierzchniowy w styropianie EPS

Facade fixing R-TFIX 8S and R-TFIX-8S-...-X of Rawlplug

Rawlplug Screw-in facade fixing countersunk installation in mineral wool R-TFIX-8S KWX

TFIX-8S Universal Screw-in Facade Fixing

Substrates

Concrete C12/15-C50/60 (Use category A)

Concrete C12/15-C50/60 (Use category A)

External wall panel of concrete C16/20 – C50/60 (Use category A)

External wall panel of concrete C16/20 – C50/60 (Use category A)

Solid brick (Use category B)

Solid brick (Use category B)

Solid sand-lime brick (Use category B)

Solid sand-lime brick (Use category B)

Hollow brick (Use category C)

Hollow brick (Use category C)

Vertically-perforated clay block (Use category C)

Vertically-perforated clay block (Use category C)

Hollow sand-lime brick (Use category C)

Hollow sand-lime brick (Use category C)

Hollow lightweight concrete block (Use category D)

Hollow lightweight concrete block (Use category D)

Autoclaved aerated concrete (Use Category E)

Autoclaved aerated concrete (Use Category E)

Lightweight concrete block (Use category C)

Lightweight concrete block (Use category C)

Approved surfaces

Applications

Facades - thermal insulation systems

Substitutes

Universal screw-in facade fixings with plastic overmoulded screw R-TFIX-8S-A2 8x275 - cardboard box - 100 pcs.

Versatile screw-in facade fixing with high performance in all base materials recommended for ETICS

Universal screw-in facade fixings without plastic overmoulded screw R-TFIX-8S-X 8x275 mm - cardboard box - 100 pcs.

The most effective screw-in facade fixing for countersunk installation with the possibility of surface mounting

Universal screw-in facade fixings with plastic overmoulded screw R-TFIX-8S-A2 8x275 - cardboard box - 100 pcs.

Versatile screw-in facade fixing with high performance in all base materials recommended for ETICS

Universal screw-in facade fixings without plastic overmoulded screw R-TFIX-8S-X 8x275 mm - cardboard box - 100 pcs.

The most effective screw-in facade fixing for countersunk installation with the possibility of surface mounting

Services

Design Consulting

Design Consulting

E-learning training

E-learning training

Learn more
Technical Support 2

Technical Support 2

Rawlplug Academy

Rawlplug Academy

Installation guide

Installation manual

Installation step by step

1

Drill a hole to the required diameter and depth for rebar size being used.

2

Clean drilled hole 3 times.

3

Place the T40 mounting tip in the recess of the plastic part of the R-TFIX-8S screw, insert the pin into the drilled hole.

4

When tightening, press the tip, keeping it precisely perpendicular to the elevation.

5

Tighten the plug screw until the appropriate embedding depth is reached (the plate should be on the surface with a thermal insulation layer).

6

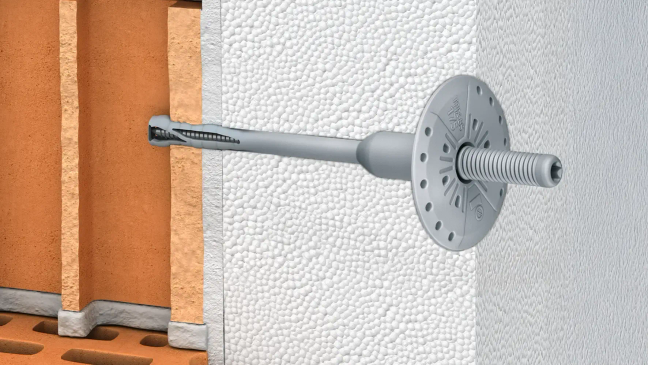

Correctly installed R-TFIX-8S.

Installation data
