  2. Universal screw-in facade fixings without plastic overmoulded screw R-TFIX-8S-X 8x335 mm - cardboard box - 100 pcs.

Universal
NewBestseller

R-TFIX-8S-335-X

5906675417776

The most effective screw-in facade fixing for countersunk installation with the possibility of surface mounting

Download model Perform the calculations

Define product parameters:

Length
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    100.00 pcs.7.17 kg

  • Bulk pack

    100.00 pcs.7.17 kg

  • Pallet

    3200.00 pcs.229.31 kg

Related products

Insulation retaining plate R-KWL 140 mm, polyamide - cardboard box - 200 pcs.

R-TFIX-CAP Polystyrene cap EPS 63x10 mm, white - cardboard box - 100 pcs.

Insulation retaining plate R-KWL 90 mm, polyamide - cardboard box - 200 pcs.

R-TFIX CAP For Mineral Wool, 63/10 Brown - cardboard box - 100 pcs.

Brickdrill SDS PLUS non-impact drill bits 8.0x460 m - plastic hanger - 1 pc.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

Counterbore cutter for EPS and mineral wool 63x10 mm - cardboard box - 1 pc.

Insulation retaining plate R-KWX 110 mm with perforator - cardboard box - 100 pcs.

R-TFIX CAP For EPS, 63/10mm grey - cardboard box - 100 pcs.

Counterbore plastic cutter for EPS and mineral wool 63x10 mm - cardboard box - 1 pc.

R-TFIX-CAP Polystyrene cap EPS 15 mm, grey - cardboard box - 100 pcs.

18 V RawlDRIVER 100Nm Cordless impact drill driver, Set with RawlCASE, 2 batteries 5.0Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

Insulation retaining plate R-KWL 140 mm, polyamide - cardboard box - 200 pcs.

R-TFIX-CAP Polystyrene cap EPS 63x10 mm, white - cardboard box - 100 pcs.

Insulation retaining plate R-KWL 90 mm, polyamide - cardboard box - 200 pcs.

R-TFIX CAP For Mineral Wool, 63/10 Brown - cardboard box - 100 pcs.

Brickdrill SDS PLUS non-impact drill bits 8.0x460 m - plastic hanger - 1 pc.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

Counterbore cutter for EPS and mineral wool 63x10 mm - cardboard box - 1 pc.

Insulation retaining plate R-KWX 110 mm with perforator - cardboard box - 100 pcs.

R-TFIX CAP For EPS, 63/10mm grey - cardboard box - 100 pcs.

Counterbore plastic cutter for EPS and mineral wool 63x10 mm - cardboard box - 1 pc.

R-TFIX-CAP Polystyrene cap EPS 15 mm, grey - cardboard box - 100 pcs.

18 V RawlDRIVER 100Nm Cordless impact drill driver, Set with RawlCASE, 2 batteries 5.0Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

Features

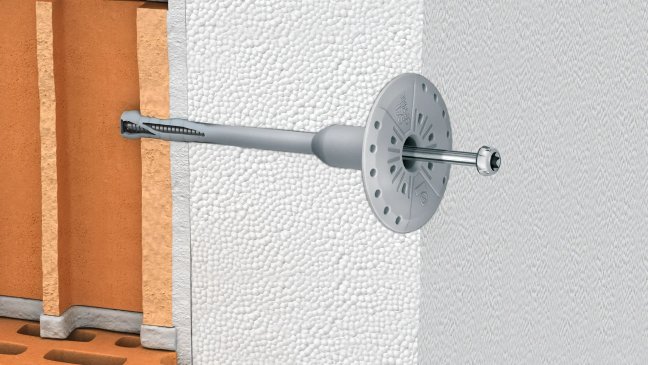

The most effective screw-in facade fixing for countersunk installation with the possibility of surface mounting

  • Unique design allows for high load-bearing capacities. This reduces the quantity of fixings required per square metre of insulation.
  • Pre-assembled screw saves time and labour.
  • Quick and easy installation in all substrates (categories A, B, C, D, E).
  • Unique sleeve compression zone for precision installations.
  • Plate stiffness (value 0.5 kN/mm) ensures smooth elevation surface and stable insulation system.
  • The shortest embedment depth is 25 mm at the maximum strength parameters.

R_TFIX_8S_X_monta_zag__bionywwe_niemineralnej

R_TFIX_8S_X_countersunkinstallationinEPS_R_TFIX_TOOL_CSMP_

R_TFIX_8S_X_surfaceinstallationinEPS_R_TFIX_TOOL_GREY_

rawlplug__universal_fa

rawlplug_screwin_fac03

rawlplug_screwin_fac01

Facade fixing R-TFIX 8S and R-TFIX-8S-...-X of Rawlplug

rawlplug_screw_in_fixi

Krok_po_kroku_jak_montowac_kolki_fasadowe_wkrecane

Rawlplug_Academy_jaki_lacznik_fasadowy_wybrac

Concrete C12/15-C50/60 (A)

Concrete C12/15-C50/60 (A)

External wall panel of concrete C16/20 – C50/60 (A)

External wall panel of concrete C16/20 – C50/60 (A)

Solid brick (B)

Solid brick (B)

Solid sand-lime brick (B)

Solid sand-lime brick (B)

Hollow brick (C)

Hollow brick (C)

Hollow sand-lime brick (C)

Hollow sand-lime brick (C)

Lightweight concrete block (C)

Lightweight concrete block (C)

Hollow lightweight concrete block (D)

Hollow lightweight concrete block (D)

Autoclaved aerated concrete (E)

Autoclaved aerated concrete (E)

Approved surfaces

Facades - thermal insulation systems

Length
Packaging and quantity
Index
EAN
Catalog price for pack. net

R-TFIX-8S Universal Screw-In Façade Fixing with Plastic Overmoulded Screw 8 x 335mm - cardboard box - 100 pcs.

R-TFIX-8S Universal Screw-In Façade Fixing with Plastic Overmoulded Screw 8 x 335mm - cardboard box - 100 pcs.

Installation manual

Installation step by step

1

Drill a hole to the required diameter and depth for rebar size being used.

2

Clean drilled hole 3 times.

3

Insert the R-TFIX-TOOL-BLACK into the head of the R-TFIX-8S-X screw with plate R-KWX.

4

When tightening, press the tip, keeping it precisely perpendicular to the elevation.

5

Tighten the plug screw until the appropriate embedment depth is reached (the plate should be on one surface with the thermal insulation layer).

6

After fixing the connector, close the hole with a mineral wool plug.

7

Properly installed R-TFIX-8SX with KCX Clamping Collar.

Installation data

Technical library

(9)

Technical assessments(3)

ETA-17/0161 (2022-07-29)

Download

UKTA-22/6348 (2022-11-11)

Download

KOT-2021/1550 (2021-03-09)

Download
Declarations(2)

DoP-17/0161 R-TFIX-8SX (ETA-17/0161)

Download

UKTA-DoP-22/6348-R-TFIX-8S (2023-10-02)

Download
Certificates(3)

1488-CPR-0544/Z (ETA-17/0161)

Download

020_UWB-1064/Z (KOT-2021/1550-1)

Download

EPD-R-TFIX-8S/8SX (2025-11-03)

Download
Documents(1)

KDWU_2021_1550_2_R_TFIX_8S_X_2026_03_17_PL

Download
