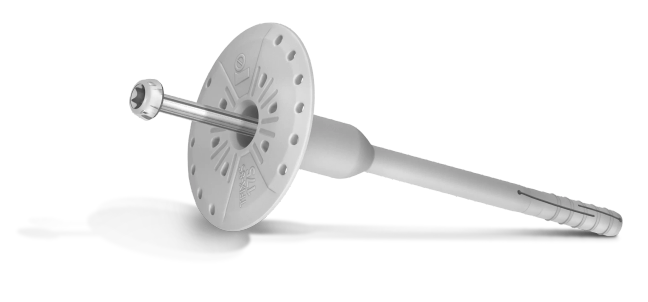

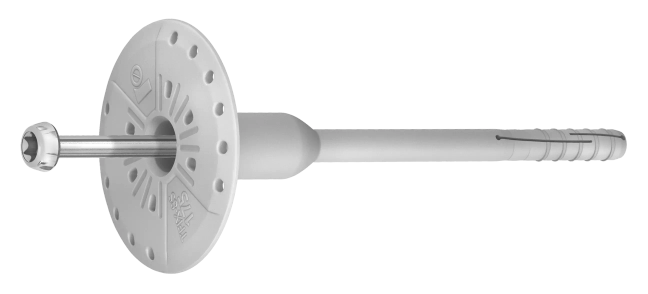

  2. Universal screw-in facade fixings without plastic overmoulded screw R-TFIX-8S-X 8x395 mm - cardboard box - 50 pcs.

Universal screw-in facade fixings without plastic overmoulded screw R-TFIX-8S-X 8x395 mm - cardboard box - 50 pcs.

Universal
NewBestseller

R-TFIX-8S-395-X

5906675417806

The most effective screw-in facade fixing for countersunk installation with the possibility of surface mounting

Define product parameters:

Length
Packaging and quantity

Related products

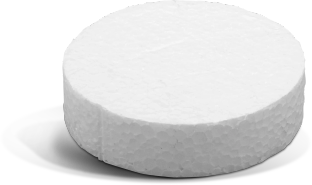

R-TFIX-CAP Polystyrene cap EPS 63x10 mm, white - cardboard box - 100 pcs.

Post-installed cap reduces heat transmission and results in a homogenous insulation surface

Insulation retaining plate R-KWL 140 mm, polyamide - cardboard box - 200 pcs.

Insulation retaining plate for use in combination with facade fixings from TFIX and KI ranges

R-TFIX-CAP Mineral wool cap 63x10 mm - cardboard box - 100 pcs.

Post-installed cap reduces heat transmission and results in a homogenous insulation surface

Insulation retaining plate R-KWL 90 mm, polyamide - cardboard box - 200 pcs.

Insulation retaining plate for use in combination with facade fixings from TFIX and KI ranges

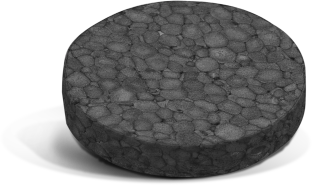

R-TFIX-CAP Polystyrene cap EPS 63x10 mm, grey - cardboard box - 100 pcs.

Post-installed cap reduces heat transmission and results in a homogenous insulation surface

Insulation retaining plate R-KWX 110 mm with perforator - cardboard box - 100 pcs.

Joining retaining plate with perforator for countersunk installation in mineral wool insulation boards

Rebardrill SDS Plus drill bits 8x400x460 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

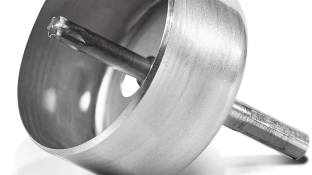

Counterbore plastic cutter for EPS and mineral wool 63x10 mm - cardboard box - 1 pc.

Cutter accessory for counterbored installation of TFIX hammer-in facade insulation fixings

R-TFIX-8S-X Setting tool TX40 for countersunk installation, metal - plastic box - 1 pc.

TX40 Setting tool with integrated disc and perforator for countersunk installation of screw-in fixing R-TFIX-8SX

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

18 V RawlDRIVER 100Nm Cordless impact drill driver, Set with RawlCASE, 2 batteries 5.0Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

Impact drill/driver 18V 100 Nm for drilling and screwdriving depending on the hardness of the material.

R-TFIX-8S-X Setting tool TX40 for surface installation, grey - cardboard box - 1 pc.

TX40 Setting tool with integrated disc for surface installation of screw-in fixing R-TFIX-8SX, setting the flange flush with the surface of the insulation

R-TFIX-CAP Polystyrene cap EPS 63x10 mm, white - cardboard box - 100 pcs.

Post-installed cap reduces heat transmission and results in a homogenous insulation surface

Insulation retaining plate R-KWL 140 mm, polyamide - cardboard box - 200 pcs.

Insulation retaining plate for use in combination with facade fixings from TFIX and KI ranges

R-TFIX-CAP Mineral wool cap 63x10 mm - cardboard box - 100 pcs.

Post-installed cap reduces heat transmission and results in a homogenous insulation surface

Insulation retaining plate R-KWL 90 mm, polyamide - cardboard box - 200 pcs.

Insulation retaining plate for use in combination with facade fixings from TFIX and KI ranges

R-TFIX-CAP Polystyrene cap EPS 63x10 mm, grey - cardboard box - 100 pcs.

Post-installed cap reduces heat transmission and results in a homogenous insulation surface

Insulation retaining plate R-KWX 110 mm with perforator - cardboard box - 100 pcs.

Joining retaining plate with perforator for countersunk installation in mineral wool insulation boards

Rebardrill SDS Plus drill bits 8x400x460 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Counterbore plastic cutter for EPS and mineral wool 63x10 mm - cardboard box - 1 pc.

Cutter accessory for counterbored installation of TFIX hammer-in facade insulation fixings

R-TFIX-8S-X Setting tool TX40 for countersunk installation, metal - plastic box - 1 pc.

TX40 Setting tool with integrated disc and perforator for countersunk installation of screw-in fixing R-TFIX-8SX

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

18 V RawlDRIVER 100Nm Cordless impact drill driver, Set with RawlCASE, 2 batteries 5.0Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

Impact drill/driver 18V 100 Nm for drilling and screwdriving depending on the hardness of the material.

R-TFIX-8S-X Setting tool TX40 for surface installation, grey - cardboard box - 1 pc.

TX40 Setting tool with integrated disc for surface installation of screw-in fixing R-TFIX-8SX, setting the flange flush with the surface of the insulation

Features

The most effective screw-in facade fixing for countersunk installation with the possibility of surface mounting

  • Unique design allows for high load-bearing capacities. This reduces the quantity of fixings required per square metre of insulation.
  • Pre-assembled screw saves time and labour.
  • Countersunk installation possible with use of R-TFIX-TOOL-CS, R-TFIX-CSMP or additional R-KWX-63 plate with post-installed R-TFIX-CAP63 insulation cap and system bit R-TFIX-TOOL-BLACK.
  • Quick and easy installation in all substrates (categories A, B, C, D, E).
  • Unique sleeve compression zone for precision installations.
  • Installation flush with the surface possible with use of R-TFIX-TOOL-GREY system bit and post-installed R-TFIX-CAP15 insulation cap.

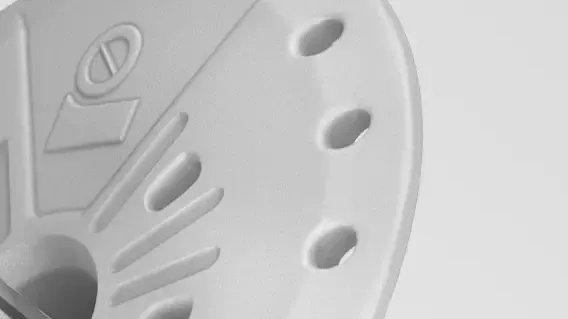

  • Plate stiffness (value 0.5 kN/mm) ensures smooth elevation surface and stable insulation system.
  • Installation with post-installed insulation cap R-TFIX-CAP63 in three versions: R-TFIX-CAP63-EPS-W, R-TFIX-CAP63-EPS-G, R-TFIX-CAP63-EPS-MW reduces heat transmission and results in a homogenous insulation surface
  • The shortest embedment depth is 25 mm at the maximum strength parameters.

Product video

R-TFIX-8S-X: montaż zagłębiony w wełnie mineralnej

R-TFIX-8S-X: countersunk installation in EPS (R-TFIX-TOOL-CSMP)

R-TFIX-8S-X: surface installation in EPS (R-TFIX-TOOL-GREY)

Rawlplug ® universal facade fixing R-TFIX-8S-X

Rawlplug Screw-in facade fixing installation R-TFIX-8S-...-X

Rawlplug screw-in facade fixing countersunk installation R-TFIX-8SX

Facade fixing R-TFIX 8S and R-TFIX-8S-...-X of Rawlplug

Rawlplug screw in fixing R TFIX 8S surface installation

Substrates

Concrete C12/15-C50/60 (Use category A)

Concrete C12/15-C50/60 (Use category A)

External wall panel of concrete C16/20 – C50/60 (Use category A)

External wall panel of concrete C16/20 – C50/60 (Use category A)

Solid brick (Use category B)

Solid brick (Use category B)

Solid sand-lime brick (Use category B)

Solid sand-lime brick (Use category B)

Hollow brick (Use category C)

Hollow brick (Use category C)

Vertically-perforated clay block (Use category C)

Vertically-perforated clay block (Use category C)

Hollow sand-lime brick (Use category C)

Hollow sand-lime brick (Use category C)

Lightweight concrete block (Use category C)

Lightweight concrete block (Use category C)

Hollow lightweight concrete block (Use category D)

Hollow lightweight concrete block (Use category D)

Autoclaved aerated concrete (Use Category E)

Autoclaved aerated concrete (Use Category E)

Approved surfaces

Applications

Facades - thermal insulation systems

Substitutes

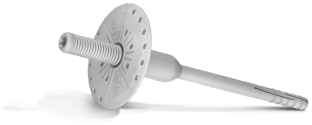

Universal screw-in facade fixings with plastic overmoulded screw R-TFIX-8S 8x395 - cardboard box - 50 pcs.

Versatile screw-in facade fixing with high performance in all base materials recommended for ETICS

Universal screw-in facade fixings with plastic overmoulded screw R-TFIX-8S-A2 8x395 - cardboard box - 50 pcs.

Versatile screw-in facade fixing with high performance in all base materials recommended for ETICS

Universal screw-in facade fixings with plastic overmoulded screw R-TFIX-8S 8x395 - cardboard box - 50 pcs.

Versatile screw-in facade fixing with high performance in all base materials recommended for ETICS

Universal screw-in facade fixings with plastic overmoulded screw R-TFIX-8S-A2 8x395 - cardboard box - 50 pcs.

Versatile screw-in facade fixing with high performance in all base materials recommended for ETICS

Services

Design Consulting

Design Consulting

E-learning training

E-learning training

Learn more
Technical Support 2

Technical Support 2

Rawlplug Academy

Rawlplug Academy

Installation guide

Installation manual

Installation step by step

1

Drill a hole to the required diameter and depth for rebar size being used.

2

Clean drilled hole 3 times.

3

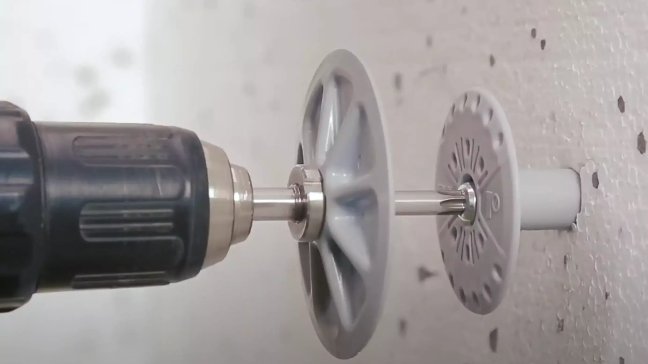

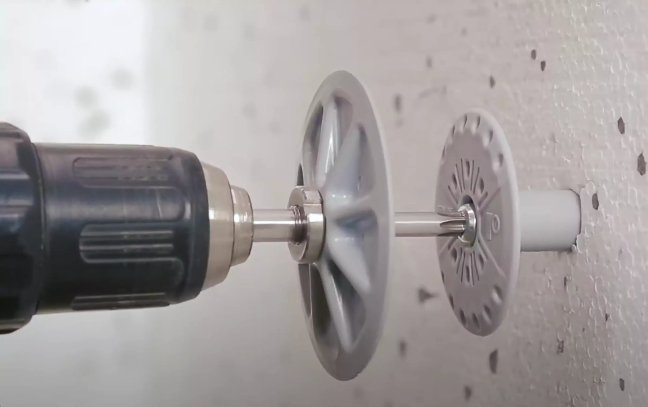

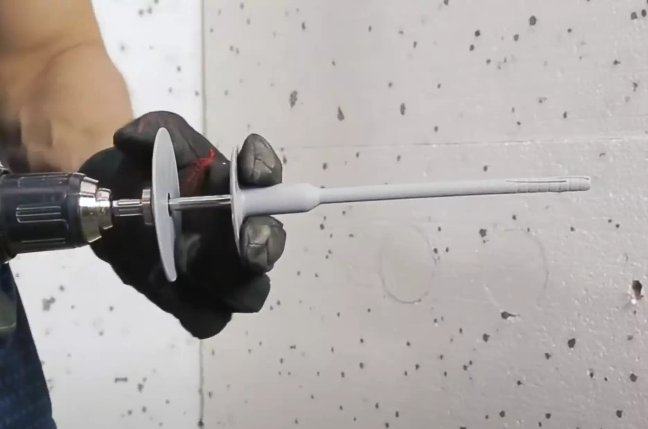

Insert the R-TFIX-TOOL-BLACK into the head of the R-TFIX-8S-X screw with plate R-KWX.

4

When tightening, press the tip, keeping it precisely perpendicular to the elevation.

5

Tighten the plug screw until the appropriate embedment depth is reached (the plate should be on one surface with the thermal insulation layer).

6

After fixing the connector, close the hole with a mineral wool plug.

7

Properly installed R-TFIX-8SX with KCX Clamping Collar.

Installation data

Approvals and publications

Technical library and approvals

Choose document:

ETA-17/0161

1488-CPR-0544/Z

DoP-17/0161 R-TFIX-8SX

KOT-2021/1550

020_UWB-1064/Z

UKTA-22/6348

UKTA-DoP-22/6348-R-TFIX-8S

Product card and catalogues

Choose product card:

Product cart

Choose product catalog:

Specification Design Guide

General catalogue - PDF

Leaflet R-TFIX-8S_SX
