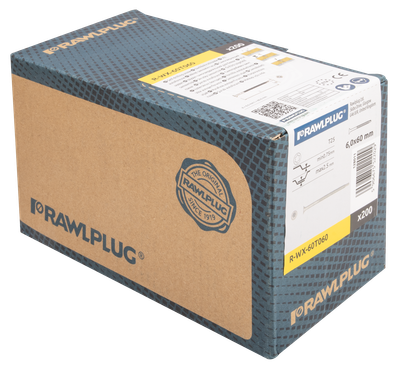

  2. R-WX-T Self-drilling screws for steel T25 6.0x60 mm zinc flak coating - cardboard box - 200 pcs.

Steel
New

R-WX-60T060

5906675522029

Screw for trapezoidal steel sheet – max thickness of 2x1.25 mm, TORX25 drive

Define product parameters:

Diameter
Length
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    200.00 pcs.1.47 kg

  • Bulk pack

    2400.00 pcs.18.05 kg

  • Pallet

    57600.00 pcs.433.20 kg

Related products

R-POK Round Steel Flange, 7.0 x 76mm With Aluminum-Zinc Coating - cardboard box - 100 pcs.

Round steel flange R-POK 40x6.5 mm with aluminum-zinc coating - cardboard box - 100 pcs.

Telescopic sleeve with round plate R-GOK-II 50x185 mm polypropylene - cardboard box - 100 pcs.

R-POW Oval Steel Flange, 7.0 x 40 x 80mm With Aluminum-Zinc Coating - cardboard box - 100 pcs.

Torx25 long bits, 200 mm - blister - 1 pc.

Telescopic sleeve with round plate R-GOK-II 50x165 mm polypropylene - cardboard box - 150 pcs.

Telescopic sleeve with round plate R-GOK-II 50x85 mm polypropylene - cardboard box - 300 pcs.

Torx25 long bits 100 mm - blister - 1 pc.

Torx25 long bits, 150 mm - blister - 1 pc.

Long bits Torx 25 T25, 250 mm - blister - 1 pc.

Telescopic sleeve with round plate R-GOK-II 50x325 mm polypropylene - cardboard box - 50 pcs.

Torsion Torx25 T25 long bits, 350 mm - blister - 1 pc.

R-POK Round Steel Flange, 7.0 x 76mm With Aluminum-Zinc Coating - cardboard box - 100 pcs.

Round steel flange R-POK 40x6.5 mm with aluminum-zinc coating - cardboard box - 100 pcs.

Telescopic sleeve with round plate R-GOK-II 50x185 mm polypropylene - cardboard box - 100 pcs.

R-POW Oval Steel Flange, 7.0 x 40 x 80mm With Aluminum-Zinc Coating - cardboard box - 100 pcs.

Torx25 long bits, 200 mm - blister - 1 pc.

Telescopic sleeve with round plate R-GOK-II 50x165 mm polypropylene - cardboard box - 150 pcs.

Telescopic sleeve with round plate R-GOK-II 50x85 mm polypropylene - cardboard box - 300 pcs.

Torx25 long bits 100 mm - blister - 1 pc.

Torx25 long bits, 150 mm - blister - 1 pc.

Long bits Torx 25 T25, 250 mm - blister - 1 pc.

Telescopic sleeve with round plate R-GOK-II 50x325 mm polypropylene - cardboard box - 50 pcs.

Torsion Torx25 T25 long bits, 350 mm - blister - 1 pc.

Features

Screw for trapezoidal steel sheet – max thickness of 2x1.25 mm, TORX25 drive

  • Pre-assembly with other components is possible before installation.
  • Hardened thread surface.
  • High quality anti-corrosion coating guarantees resistance of 15 Kesternich cycles.
  • Shape and type of the thread specially design to allow connecting to metal sheets.
  • Reduced drilling point prevents the holes in thin metal sheets from being recalibrated.
  • The drill point is designed to provide a fast and hassle-free installation. Sharp point of the drill prevents movement of the surface of the fixture.

Wkrety_dachowe_do_blachy_RWX60T

rawlplug_roofing_insul

Metal sheet & profiles

Metal sheet & profiles

Approved surfaces

Flat roofs

Diameter
Length
Packaging and quantity
Index
EAN
Catalog price for pack. net

R-WO-T Screws for steel and timber T25 4.8x60 mm zinc flak coating - cardboard box - 250 pcs.

R-WX-T Self-Drilling Screws for Steel, T25 4.8 x 60mm, Zinc Flake - cardboard box - 250 pcs.

Telescopic sleeve with round plate R-GOK 50x75 mm polypropylene - cardboard box - 300 pcs.

Telescopic sleeve with round plate R-GOK 50x95 mm polypropylene - cardboard box - 250 pcs.

Telescopic sleeve with round plate R-GOK 50x125 mm polypropylene - cardboard box - 200 pcs.

Telescopic sleeve with round plate R-GOK 50x165 mm polypropylene - cardboard box - 150 pcs.

Telescopic sleeve with round plate R-GOK 50x385 mm polypropylene - cardboard box - 50 pcs.

Torx25 long bits 100 mm - blister - 1 pc.

Torsion Torx25 T25 bits, 25 mm - blister - 3 pcs.

R-WO-T Screws for steel and timber T25 4.8x60 mm zinc flak coating - cardboard box - 250 pcs.

R-WX-T Self-Drilling Screws for Steel, T25 4.8 x 60mm, Zinc Flake - cardboard box - 250 pcs.

Telescopic sleeve with round plate R-GOK 50x75 mm polypropylene - cardboard box - 300 pcs.

Telescopic sleeve with round plate R-GOK 50x95 mm polypropylene - cardboard box - 250 pcs.

Telescopic sleeve with round plate R-GOK 50x125 mm polypropylene - cardboard box - 200 pcs.

Telescopic sleeve with round plate R-GOK 50x165 mm polypropylene - cardboard box - 150 pcs.

Telescopic sleeve with round plate R-GOK 50x385 mm polypropylene - cardboard box - 50 pcs.

Torx25 long bits 100 mm - blister - 1 pc.

Torsion Torx25 T25 bits, 25 mm - blister - 3 pcs.

Installation manual

Installation step by step

1

Place the plastic sleeve with the WX screw in the insulating material.

2

Using a screwdriver, screw in the connector with the WX screw until the required depth is obtained.

3

Properly mounted sleeve with WX screw.

Installation data

Technical library

(8)

Technical assessments(3)

ETA-23/0198

Download

UKTA-0836-22/6338

Download

ITB_KOT_2022_2206_2022_08_22_R_GOKII_R_POK_R_POW

Download
Declarations(3)

DoP-23/0198-R-GOK-II

Download

UKTA-DoP-22/6338-R-WX

Download

KDWU_R_WX_T

Download
Certificates(1)

1488-CPR-0697/Z

Download
Documents(1)

FM approval PR465265 (2026-02-23)

Download

Catalogues and product cards

(4)

Product cards(1)

Product card

Download
Catalogues(3)

Catalogue Offer (overview) - EN

Download

Specification Design Guide

Download

General Catalogue EN 2026/27 - PDF

Download
