  2. Hot dip galvanized throughbolt R-XPTIII-HD 10x65 mm - cardboard box - 50 pcs.

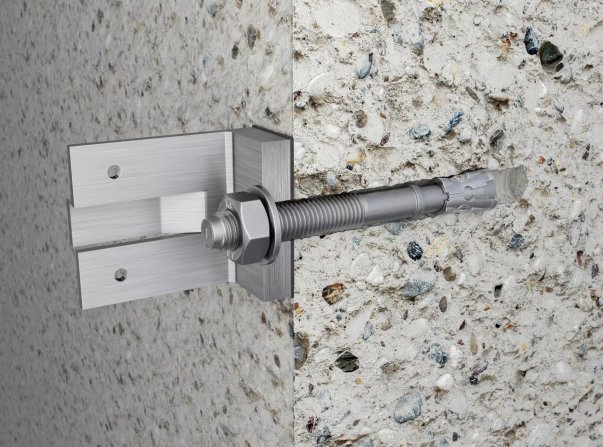

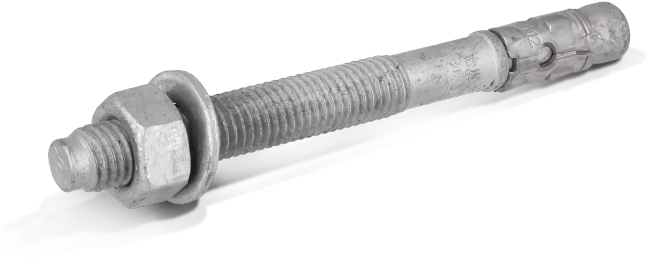

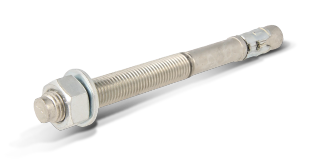

Hot dip galvanized throughbolt R-XPTIII-HD 10x65 mm - cardboard box - 50 pcs.

Solid walls
New

R-XPTIIIHD10065/5

5906675505978

Rawlplug

Hot Dip Galvanized throughbolt for non-cracked concrete

Define product parameters:

Diameter
Length
Coating
Packaging and quantity

Related products

Features

Hot Dip Galvanized throughbolt for non-cracked concrete

  • Two anchoring depths - standard and reduced
  • Expansion band made of A4 stainless steel
  • Design of R-XPTIII allows drilling and installing directly through the fixture and helps to reduce installation time
  • Increased corrosion resistance due to hot dip zinc protection layer with a thickness of 50 µm
  • High quality with cost effectiveness
  • Quick and comfortable assembly using an SDS punch

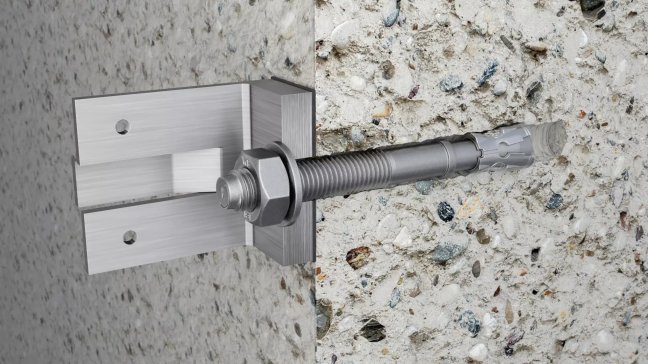

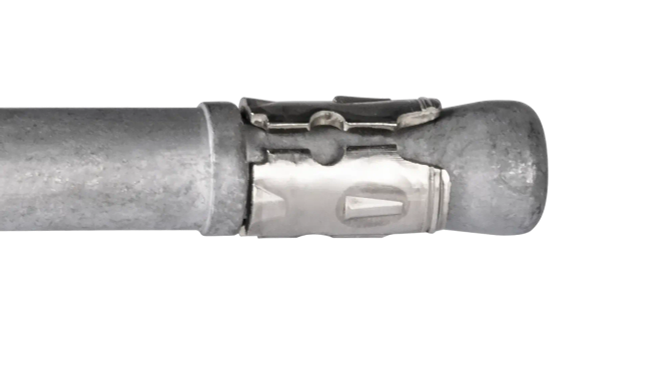

  • The new shape of the expansion band with an innovative ring at the end of the band ensures a perfect connection between the anchor and the ground
  • Application specification in accordance with EAD 330232-01-0601-v01 and included in ETA-23/0887
  • Possibility of using the anchor in outdoor conditions in accordance with EN ISO 9224

Substrates

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Unreinforced concrete

Unreinforced concrete

Reinforced concrete

Reinforced concrete

Approved surfaces

Applications

Barriers

Roads and bridges

Seats in public facilities

Steel structures

Temporary fixings

Poles and road signs

Substitutes

Services

Technical library

Technical library

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

EasyFix

EasyFix

Construction site tests

Construction site tests

Installation guide

Installation manual

Installation step by step

1

Drill the hole to the appropriate depth

2

Remove the drill bits and clean the hole thoroughly using a pump

3

Lightly tap the throughbolt through the fixture into hole with a hammer, until fixing depth is reached

4

Insert the anchor into the hole through the fastening element and tap it with a hammer to the appropriate depth

5

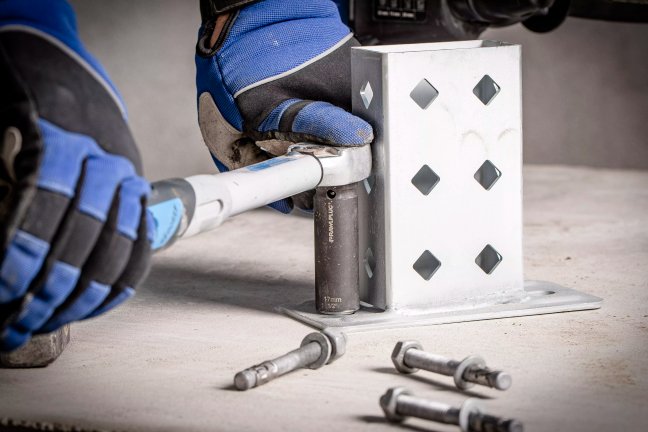

Tighten to the recommended torque

6

The anchor is correctly installed

Approvals and publications

Technical library and approvals

Choose document:

DoP 23-887-R-XPTIII_PL

ETA-23/0887

1488-CPR-1098/W

Product card and catalogues

Choose product card:

Product card

Choose product catalog:

Specification Design Guide

General catalogue - PDF

Leaflet R-XPTIII
