  2. Hammer-in facade fixing with metal pin TFIX-8M 95 mm - cardboard box - 200 pcs.

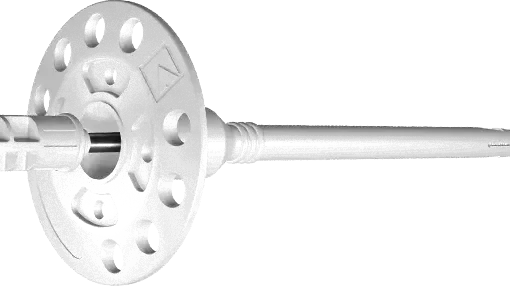

Hammer-in facade fixing with metal pin TFIX-8M 95 mm - cardboard box - 200 pcs.

Universal
Outlet

TFIX-8M-095

5906675188768

Rawlplug

Versatile hammer-in facade fixing with steel nail recommended for ETICS.

Define product parameters:

Length
Packaging and quantity
Weight and bulk packaging
  • Unit pack

    200.00 pcs.4.50 kg

  • Bulk pack

    200.00 pcs.4.50 kg

  • Pallet

    9600.00 pcs.215.95 kg

This product has been withdrawn from sale.

Features

Versatile hammer-in facade fixing with steel nail recommended for ETICS.

  • Quick and easy application.
  • Excellent plate stiffness (value 1.0 kN/mm) ensures smooth elevation surface and stable insulation system.
  • The long plastic overmoulding on the TFIX-8M nail minimises thermal bridging (value 0.002W/K), contributing to energy-saving benefits.
  • Unique nail design allows for high load-bearing capacities. This reduces the quantity of fixings required per square metre of insulation.
  • The shortest embedment depth is 25 mm at the maximum strength parameters.
  • Pre-assembled screw saves time and labour.
  • Can be used with additional KWL insulation holding plate, available in 90, 110 and 140 mm flange sizes (recommended for soft insulation materials such as mineral wool).

Substrates

Concrete C12/15-C50/60 (A)

Concrete C12/15-C50/60 (A)

External wall panel of concrete C16/20 – C50/60 (A)

External wall panel of concrete C16/20 – C50/60 (A)

Solid brick (B)

Solid brick (B)

Solid sand-lime brick (B)

Solid sand-lime brick (B)

Vertically-perforated clay block (C)

Vertically-perforated clay block (C)

Hollow sand-lime brick (C)

Hollow sand-lime brick (C)

Approved surfaces

Applications

Facades - thermal insulation systems

Ventilated facades

Full list of variations

Length
Packaging and quantity
Index
EAN
Catalog price for pack. net

Substitutes

Services

Installation guide

Installation data

Approvals and publications

Technical library

(6)

Technical assessments(1)

UKTA-22/6337 (2022-11-09)

Nailed-in plastic anchor for fixing of external thermal insulation composite systems with rendering in concrete and masonry

Declarations(1)

UKTA-DoP-22/6337-TFIX-8M (2023-10-02)

Nailed-in plastic anchor for fixing of external thermal insulation composite systems with rendering in concrete and masonry

Certificates(2)

1488-CPR-0244/Z

Certificate of Conformity of the Factory Production Control

EPD-01-07/2026 (2026-07-27) - Hammer-in facade fixings

Hammer-in facade fixings

Documents(2)

ETA-07/0336 (2025-08-13)

European Technical Assessment

DoP-07/0336-TFIX-8M (ETA-07/0336)

Declaration of Performance

Catalogues and product cards

(5)

Product cards(2)

Product cart

Product card

Catalogues(3)

Catalogue Offer (overview) - EN

Specification Design Guide

General Catalogue EN 2026/27
