  2. Universal screw-in facade integrated insulation cap and cutter 8x395 mm - cardboard box - 50 pcs.

Universal
Outlet

TFIX-8ST-395

5906675087801

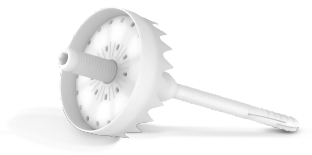

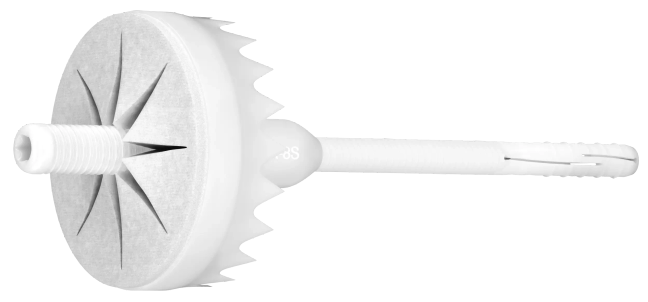

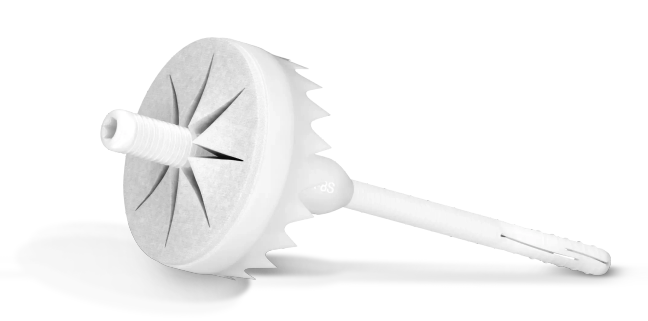

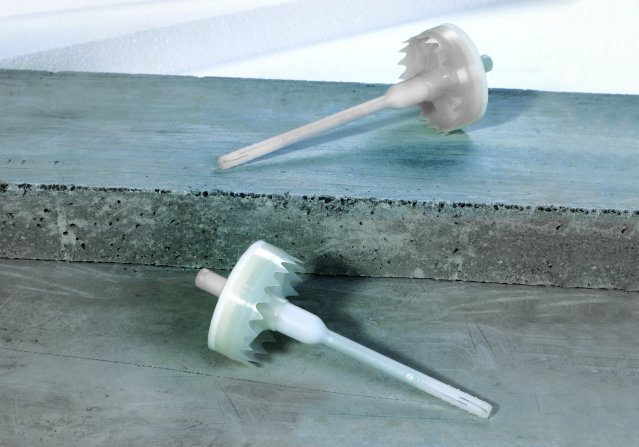

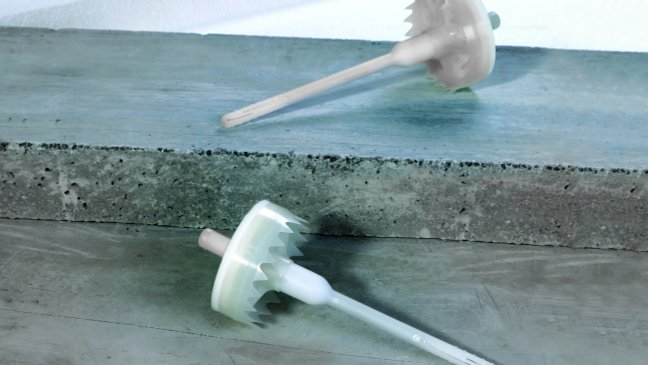

The first thermal insulation combination screw fixing that can be countersunk together with the integrated insulation cap.

Define product parameters:

Length
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    50.00 pcs.4.79 kg

  • Bulk pack

    50.00 pcs.4.79 kg

Related products

Brickdrill SDS PLUS non-impact drill bits 8.0x460 m - plastic hanger - 1 pc.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

Rawlplug SDS Plus Drill Bit 8.0 x 400 x 460mm, 2 Cutter, PGM Approved - plastic hanger - 1 pc.

Installation tool for TFIX-8ST - paper hanger - 1 pcs.

Brickdrill SDS PLUS non-impact drill bits 8.0x460 m - plastic hanger - 1 pc.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

Rawlplug SDS Plus Drill Bit 8.0 x 400 x 460mm, 2 Cutter, PGM Approved - plastic hanger - 1 pc.

Installation tool for TFIX-8ST - paper hanger - 1 pcs.

Features

The first thermal insulation combination screw fixing that can be countersunk together with the integrated insulation cap.

  • The long plastic overmoulding on the TFIX-8ST screw minimises thermal bridging (value 0.001-0,002W/K), contributing to energy-saving benefits.
  • Unique design allows for high load-bearing capacities. This reduces the quantity of fixings required per square metre of insulation.
  • Unique sleeve compression zone for precision installations.

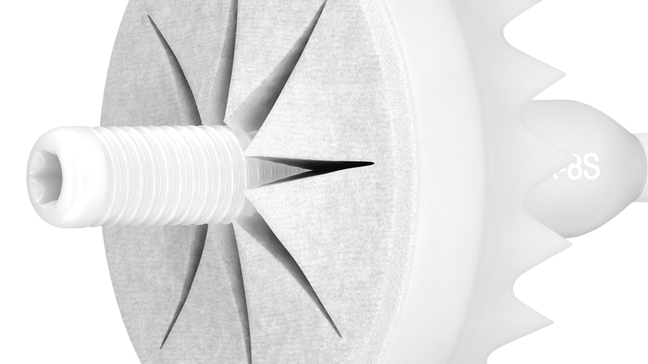

  • Integrated insulation cap (with unique surface reinforcement) equalizes thermal conductivity over the fixing point, whilst also leveling out drying times of render.
  • Accurate countersunk setting automatically sets the fixing flush with the insulation layer.
  • Plate stiffness (value 0.5 kN/mm) ensures smooth elevation surface and stable insulation system.
  • Pre-assembled screw saves time and labour.
  • The shortest embedment depth is 25 mm at the maximum strength parameters.
  • Simple countersunk installation in all substrates (A,B,C,D,E).

rawlplug_tfix8st_insta

tfix_8st_animation

tfix_8st_installation

rawlplug_tfix8st_unive

Rawlplug_Academy_jaki_lacznik_fasadowy_wybrac

Concrete C12/15-C50/60 (A)

Concrete C12/15-C50/60 (A)

Solid brick (B)

Solid brick (B)

Solid sand-lime brick (B)

Solid sand-lime brick (B)

Vertically-perforated clay block (C)

Vertically-perforated clay block (C)

Hollow sand-lime brick (C)

Hollow sand-lime brick (C)

Hollow lightweight concrete block (D)

Hollow lightweight concrete block (D)

Aerated concrete block (D)

Aerated concrete block (D)

Hollow brick (C)

Hollow brick (C)

Lightweight concrete block (C)

Lightweight concrete block (C)

Lightweight concrete

Lightweight concrete

Approved surfaces

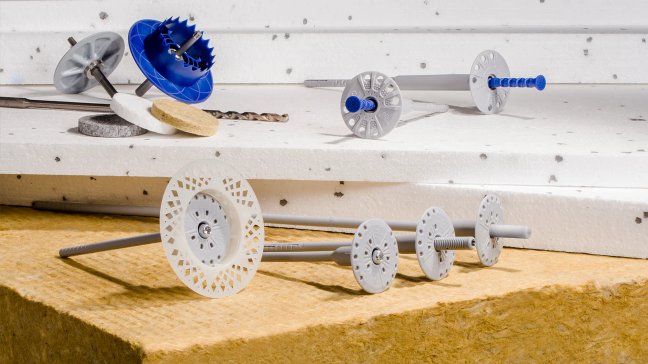

Facades - thermal insulation systems

Length
Packaging and quantity
Index
EAN
Catalog price for pack. net

Installation manual

Installation step by step

1

Drill a Hole of the appropriate diameter and depth.

2

Clean drilled hole 3 times.

3

Insert the fixing into the drilled hole.

4

Lightly tap the plastic sleeve through the insulation material into hole with a hammer, until fixing depth is reached.

5

When tightening, press the tip, keeping it precisely perpendicular to the elevation.

6

Tighten the plug screw until the appropriate embedment depth is reached (the plate should be on one surface with the thermal insulation layer).

7

Correctly fastened pin.
