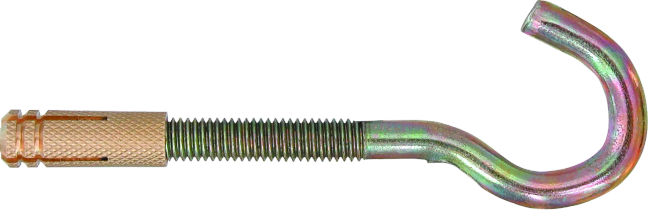

Brass expansion sleeve M5 with ceiling hook - cardboard box - 100 pcs.

Solid walls

TMS-05

5906675032504

Koelner

Brass anchor for medium loads suitable for all screws and studs with a metric thread

Define product parameters:

Packaging and quantity

Related products

Features

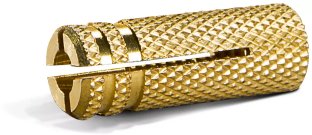

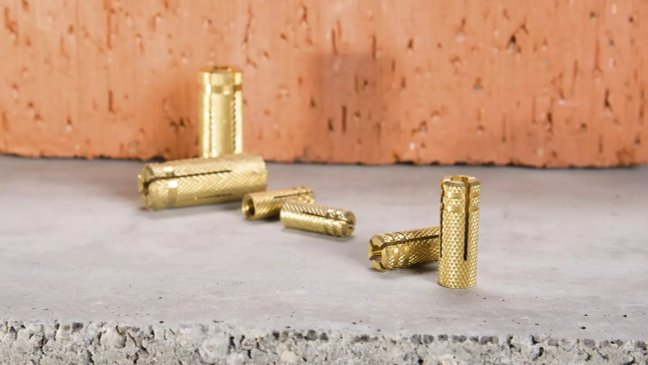

Brass anchor for medium loads suitable for all screws and studs with a metric thread

  • Fixing allows the attached item to be reusable
  • Special surface structure prevents from rotating in the hole
  • Low installation depth reduces amount of drilling
  • The internal thread allows for the use of standard metric screws or threaded rods, and for surface flush removal and reuse of the fixing point. This provides great flexibility.
  • Suitable for pre-positioned and push-through installation.

Substrates

Non-cracked concrete

Non-cracked concrete

Approved surfaces

Applications

Bathroom accessories

Cabinets, brackets and wall brackets

Curtain rods

Electrical Installations

Handrails

Substitutes

Services

Design Consulting

Design Consulting

E-learning training

E-learning training

Learn more
Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

Technical Support 2

Technical Support 2

Installation guide

Installation manual

Installation step by step

1

Drill the hole and clean it up.

2

Blow out dust at least 4 times with a hand pump.

3

Włożyć kotwę do otworu i dobić ją młotkiem aż do zrównania z podłożem

4

Przyłożyć element mocowany, wprowadzić śrubę lub pręt gwintowany i dokręcić z wymaganym momentem obrotowym
