R-TFIX-CAP63-MW
5906675390338

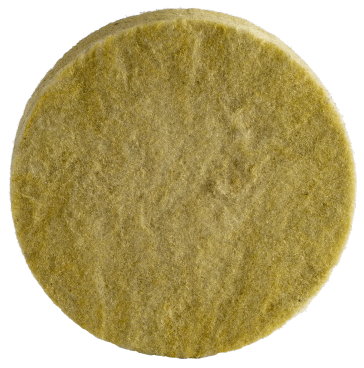

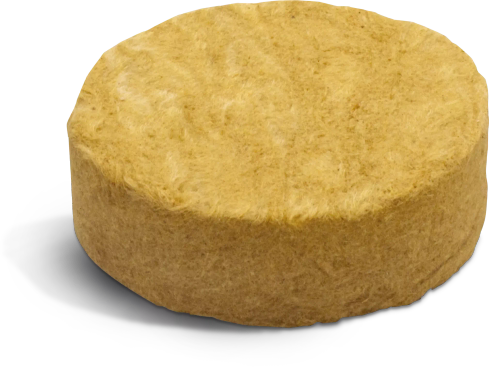

Post-installed cap reduces heat transmission and results in a homogenous insulation surface
Define product parameters:
Catalog price for bx:
PLN107.27
net | VAT 23
Contact with us and check out our terms of cooperation
Catalog price for bx:
PLN107.27
net | VAT 23
Contact with us and check out our terms of cooperation
Post-installed cap reduces heat transmission and results in a homogenous insulation surface

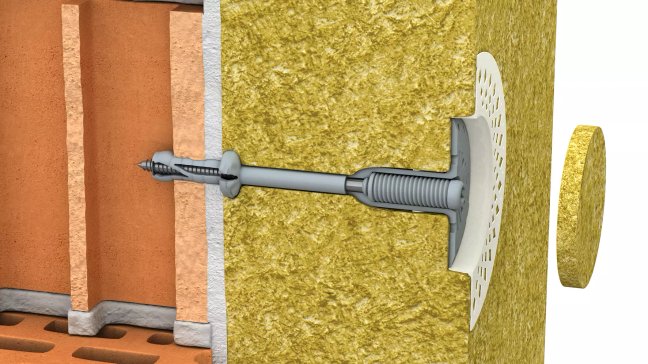

R-TFIX-8S-X: montaż zagłębiony w wełnie mineralnej
R-TFIX-8S-X: countersunk installation in EPS (R-TFIX-TOOL-CSMP)
R-TFIX-8S-X: surface installation in EPS (R-TFIX-TOOL-GREY)
Approved surfaces
Design Consulting
Rawlplug Academy
Technical Support 2
E-learning training
Drill a hole to the required diameter and depth for rebar size being used.
Clean drilled hole 3 times.
Insert the R-TFIX-TOOL-BLACK into the head of the R-TFIX-8S-X screw with plate R-KWX.
When tightening, press the tip, keeping it precisely perpendicular to the elevation.
Tighten the plug screw until the appropriate embedment depth is reached (the plate should be on one surface with the thermal insulation layer).

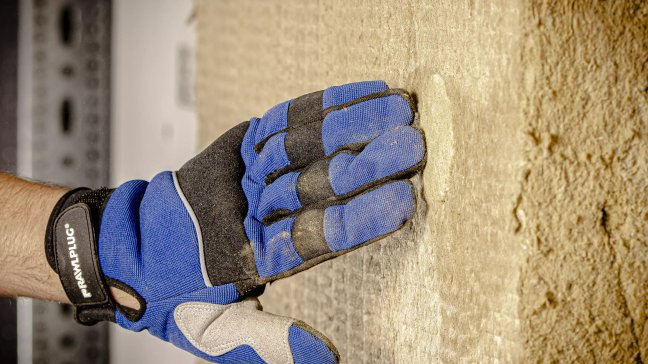

After fixing the connector, close the hole with a mineral wool plug.
Correctly fastened pin.
Drill a hole to the required diameter and depth for rebar size being used.
Clean drilled hole 3 times.
Insert R-TFIX-TOOL-GREEN into recess in head moulding of R-TFIX-8S screw with plate R-KWX.
When tightening, press the tip, keeping it precisely perpendicular to the elevation.
Tighten the plug screw until the appropriate embedding depth is reached (the plate should be on the surface with a thermal insulation layer).
After fixing the connector, close the hole with a mineral wool plug.
Properly installed R-TFIX-8SX with KCX Clamping Collar.
