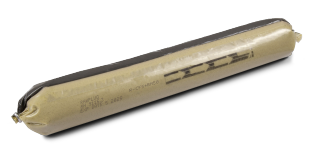

Hybrid bonded anchor in foil 300ml - cardboard box - 14 pcs.
Solid walls
R-CFS+KERII-300
5906675527291
Define product parameters:
Bonded anchors version
Packaging
Packaging and quantity
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation
Related products
Features
Bonded anchor based on hybrid resin in 600ml foil loads
- Approved for use in non-cracked concrete (EAD 330499-02-0601), working life up to 100 years
- Suitable for use in dry and wet substrates including flooded holes (use category I1 & I2).
- For faster curing winter version of the resin can be used
- No need for hole cleaning when using Dustlessdrill bit
- Special nozzle with longer mixer for more comfortable and precise application
- Suitable for multiple use. Partly used product can be reused after fitting new nozzle
- Very high load capacity
- Unique soft foil pack for less waste
- Effortless extrusion due to the patented self-opening system with manual or battery dispenser guns
- The available fire testing report presents the anchor's performance in fire conditions, facilitating the project approval process by investors and building supervision.
Product video
R-KER II bonded anchor – installation and application – how to use the product – Rawlplug tutorial
Rawlplug Deep Anchorage and post-installed rebar accessories system
Jak zamontować konstrukcję stalową?
Substrates
Approved surfaces
Applications
Services
Warranty
Customer service
BIM
Designing POS Displays
Installation guide
Installation manual
Installation step by step
1
Drill a hole to the required diameter and depth for rebar size being used.
2
Clean drilled hole 4 times.
3
Remove drill cuttings from the hole using the hand pump four times.
4
Clean drilled hole 4 times.
5
Place the foil pack in the squeezer.
6
When starting dosing from a new package, discard some of the resin until the mixture is uniform in color
7
Fill with resin 70% of the depth of the hole, starting from the bottom of the hole.
8
Immediately after dispensing the resin, insert the rod into the hole with a twisting motion.
9
Remove the unnecessary amount of resin that flowed from the hole and wait for the appropriate time for the resin to cure.
10
The mount is ready to use.
11
Immediately after dispensing the resin, insert the rod into the hole with a twisting motion and allow the resin to set properly.
12
Leave the anchor undisturbed unitl the curing time elapses.
13
Chemical anchor with the rod is correctly installed.
14
Screw the rod into the sleeve with internal thread placed in the hole.
15
Place the bar in the hole and allow the setting time to elapse.
16
Properly installed sleeve with internal thread in the concrete base.
