R-KER-II-300
5906675293738

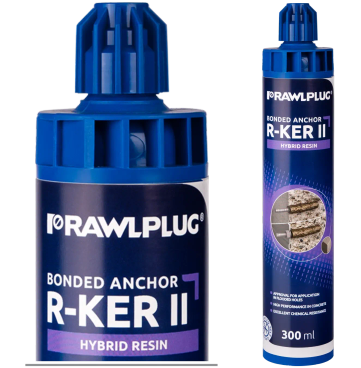

Hybrid bonded anchor for high loads based on styrene-free vinylester resin for concrete substrates
Define product parameters:
Contact with us and check out our terms of cooperation
Contact with us and check out our terms of cooperation
Hybrid bonded anchor for high loads based on styrene-free vinylester resin for concrete substrates
R-KER II bonded anchor – installation and application – how to use the product – Rawlplug tutorial
Rawlplug Deep Anchorage and post-installed rebar accessories system
Jak zamontować konstrukcję stalową?
Approved surfaces
Warranty
Customer service
BIM
Designing POS Displays
Drill a hole to the required diameter and depth for rebar size being used.
Remove drill cuttings from the hole using the hand pump four times.

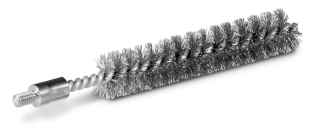

Remove drill cuttings in the hole using the brush four times.
Wydmuchać pył co najmniej 4 razy przy pomocy ręcznej pompki.
Insert cartridge into the gun and attach the nozzle.
Dispense to waste until even colour is obtained (min. 10 cm).
Insert the mixing nozzle to the far end of the hole and inject resin, slowly withdrawing the nozzle as the hole is filled to 70% of its depth.
Attach the fixture.
The mount is ready to use.
Immediately after dispensing the resin, place the rod in the hole and allow the resin to set properly.
Leave the anchor undisturbed unitl the curing time elapses.
Chemical anchor with the rod is correctly installed.
Screw the rod into the sleeve with internal thread placed in the hole.
Place the bar in the hole and allow the setting time to elapse.
Properly installed sleeve with internal thread in the concrete base.
