  2. Nylon frame fixing with collar hex head - stainless steel FF1 10x100 mm - cardboard box - 25 pcs.

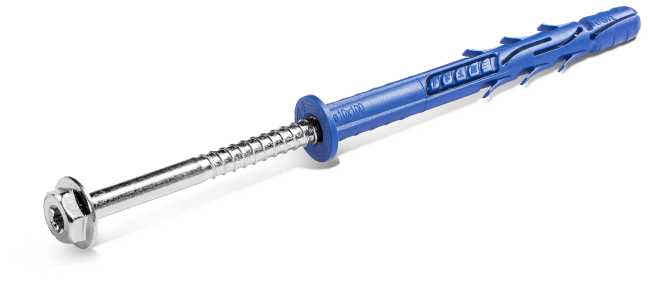

Nylon frame fixing with collar hex head - stainless steel FF1 10x100 mm - cardboard box - 25 pcs.

Universal

R-FF1-N-10K100-A4

5906675079127

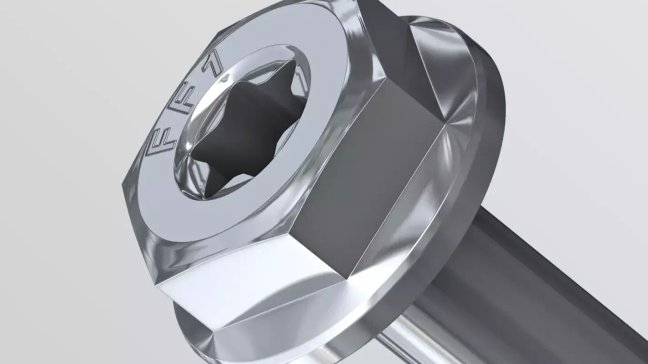

Universal frame fixing with collar and stainless steel screw  for many applications

Define product parameters:

Diameter
Length
Corrosion protection
Packaging and quantity

Related products

Pump for blowing drill cuttings - plastic bag - 1 pc.

Manual blow pump for cleaning dust from drilled holes

Rebardrill SDS Plus drill bits 10x150x210 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Magnetic holder 1/4" 60 mm - blister - 1 pc.

Holder for 1/4" bits with a powerful internal magnet

Rebardrill SDS PLus drill bits 10x100x160 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Aggressor SDS Plus drill bits 10x150x210 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

SDS plus RawlHAMMER 850 W 2.5J 26 mm Rotary hammer drill - plastic case - 1 pc.

SDS plus Rotary hammer 850W 2,5J 26 mm RAWLCASE

Magnetic impact adapter 58 mm - plastic box - 1 pc.

Impact adapter designed for use with impact bits, for screwing screws and other fastening applications

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

18V Impact driver with 210 Nm torque equipped with universal handle - inner 1/4" and external 1/2" - allows you to work with bits and caps.

Brickdrill SDS PLUS non-impact drill bits 10x260 mm - plastic hanger - 1 pc.

Drill bits for non-impact drilling in ceramic materials

Aggressor SDS Plus drill bits 10x100x160 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

Impact bits Torx T40, 25 mm - plastic box - 20 pcs.

Impact bits

Features

Universal frame fixing with collar and stainless steel screw  for many applications

  • The stainless steel screw for best anti-corrosion protection and external applications
  • Collared plug for fixing of hard materials (eg. steel)
  • Specially-formulated nylon allows best performance installation for use in all base material categories according to ETAG 020 (A, B, C, D)
  • Internal plug geometry designed to fit the screw head
  • Plug design ensures multi-axis expansion

Product video

Rawlplug FF1 Universal Nylon Frame Fixing

Substrates

Cracked concrete ≥ C12/15 (Use category A)

Cracked concrete ≥ C12/15 (Use category A)

Concrete ≥ C12/15 (Use category A)

Concrete ≥ C12/15 (Use category A)

Solid brick (Use category B)

Solid brick (Use category B)

Solid sand-lime brick (Use category B)

Solid sand-lime brick (Use category B)

Hollow sand-lime brick (Use category C)

Hollow sand-lime brick (Use category C)

Hollow lightweight concrete block (Use category D)

Hollow lightweight concrete block (Use category D)

Aerated concrete block (Use category D)

Aerated concrete block (Use category D)

Hollow brick (Use category C)

Hollow brick (Use category C)

Approved surfaces

Applications

Cabinets, brackets and wall brackets

Doors and windows

Electrical Installations

Gates

Handrails

Satellite dishes

Ventilated facades

Substitutes

Services

Design Consulting

Design Consulting

Technical Support

Technical Support

Design tools

Design tools

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

Installation guide

Installation manual

Installation step by step

1

Drill a hole of appropriate diameter and depth (drawing 1 - base material A, B, C, D)

2

Use a punch tool for making the hole.

3

Blow out the dust at least 4 times with the hand pump.

4

With a hammer, lightly tap the plug through the fixture into hole until fixing depth is reached.

5

Tighten the screw.

6

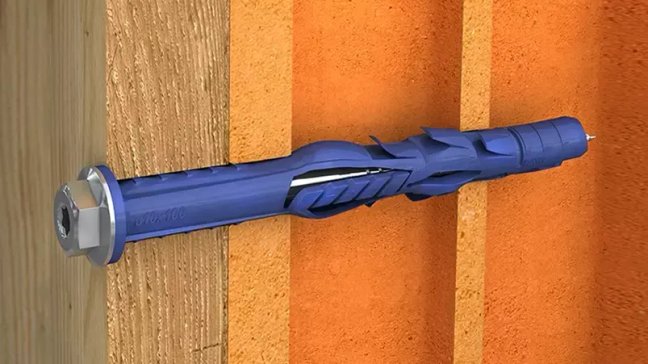

Correctly fixed pin with the longest expansion zone.

Installation data

Approvals and publications

Technical library and approvals

Choose document:

ETA-12/0398

1488-CPR-0527/Z

DoP-12/0398 R-FF1

UKTA-0836-22/6344

UKTA-DoP-22/6344-R-FF1
