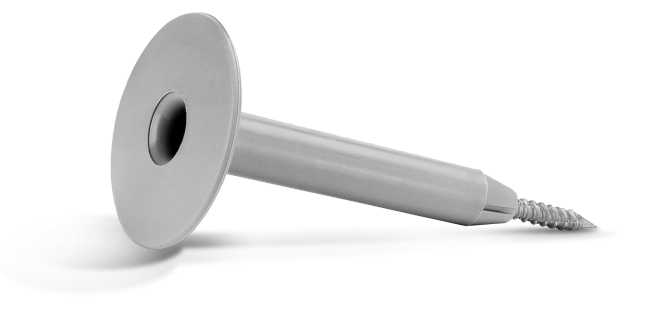

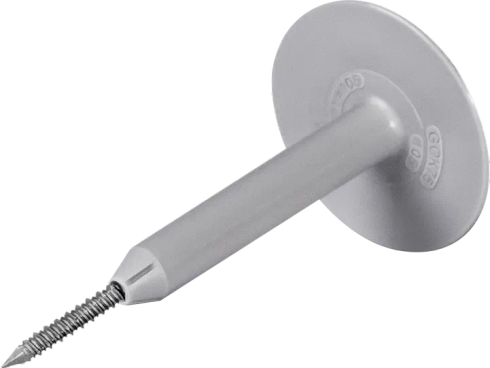

Telescopic sleeve with round plate R-GOK 50x165 mm PP + WBT-61T090 - cardboard box - 150 pcs.

Solid walls
Outlet

R-GOK165WBT61T090

5906675494159

Telescopic sleeve with screw for flat roof insulation fixings

Define product parameters:

Length
Screw length
Packaging and quantity

Related products

Round steel washer R-POK 40x6.5 mm with aluminum-zinc coating - cardboard box - 100 pcs.

Steel washer with special form for roofing applications, for use with all types of roofing screws.

Round steel washer R-POK 76x6.5 mm with aluminum-zinc coating - cardboard box - 100 pcs.

Steel washer with special form for roofing applications, for use with all types of roofing screws.

Oval steel washer R-POW 80x40 mm 7.0 mm with aluminum-zinc coating - cardboard box - 100 pcs.

Steel washer with special form for roofing applications, for use with all types of roofing screws.

Rebardrill SDS Plus drill bits 5x150x210 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Rebardrill SDS Plus drill bits 5x100x160 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Rebardrill SDS Plus drill bits 5x50x110 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

Cone drill bit for concrete 5x100x160 mm, for adapter - plastic box - 1 pc.

Special tapered drill bits for flat roof fixings

Rebardrill SDS Plus drill bits 5x300x360 mm - plastic hanger - 1 pc.

High-quality SDS plus drill bits for drilling in reinforced concrete

18 V RawlDRIVER 70Nm Cordless drill driver, Set with RawlCASE, 2 batteries 5.0Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

Drill/driver 18V 70 Nm for screwdriving depending on the hardness of the material.

RoofSystem SDS Plus adapter 500 mm - plastic box - 1 pc.

Roofsystem SDS Plus Adapter

Round steel washer R-POK 40x2.5 mm with aluminum-zinc coating - cardboard box - 100 pcs.

Steel washer with special form for roofing applications, for use with all types of roofing screws.

Cone drill bit for concrete 5x50x110 mm - plastic box - 1 pc.

Special tapered drill bits for flat roof fixings

Features

Telescopic sleeve with screw for flat roof insulation fixings

  • High impact - resistant material used ensures constant mechanical properties over the lifetime of a roof. Also, retains its properties over a wide temperature range.
  • The lenticular shape of the plate ensures a firm pressure on the membrane and no possibility of dragging and deforming the plate during assembly
  • The cone’s optimal shape facilitates speed and ease of installation through the thermal insulation.
  • Internal sleeve design allows pre-assembly with any Rawlplug roofing screw, shortening installation.

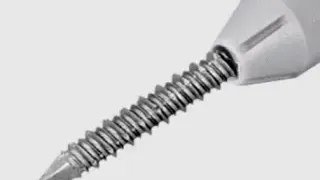

  • Hardened screw's thread surface. High quality anti-corrosion coating guarantees resistance of 15 Kesternich cycles.
  • The shape and type of screw's thread is designed specifically for connecting to concrete and wood. The drill point is designed to provide a fast and hassle-free installation. Sharp point of the drill prevents movement of the surface of the fixture.
  • The reduced diameter makes it easier to pierce the membrane and install in dense materials such as PIR / PUR and mineral wool
  • Pre-assembled sleeve with a screw shortens the assembly time, additionally it has a security in the form of a locking O-ring, which prevents the screw from slipping out.

Product video

Rawlplug Roofing Insulation Fixings R-GOK

Substrates

Concrete

Concrete

Concrete slab

Concrete slab

Timber

Timber

Approved surfaces

Applications

Flat roofs

Substitutes

Services

Design Consulting

Design Consulting

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

Technical Support 2

Technical Support 2

Traditional training

Traditional training

Installation guide

Installation manual

Installation step by step

1

Drill the hole of required diameter and depth.

2

Place the plastic sleeve with the R-WBT screw in the insulating material.

3

Using drilling machine, drive the R-WBT screw into substrate until fixing depth is reached.

4

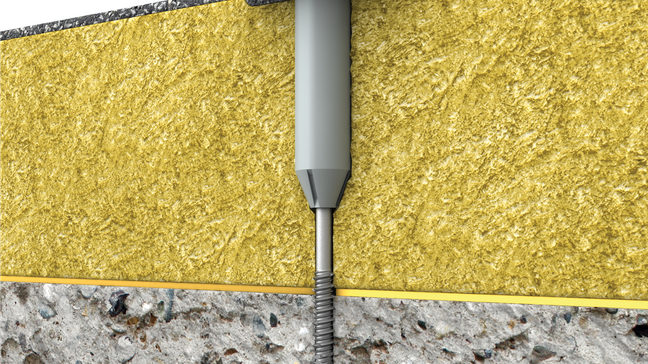

Properly mounted sleeve with R-WX screw.

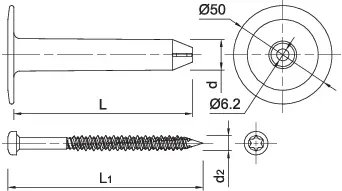

Installation data

Approvals and publications

Technical library and approvals

Choose document:

ETA-09/0346

1488-CPR-0560/Z

DoP-09/0346 GOK

DoP-09/0346 WBT

KDWU-2017-0158-GOK

KDWU-2017-0158-R-WBT_OLD

UKTA-0836-22/6338

UKTA-DoP-22/6338-R-GOK

UKTA-DoP-22/6338-R-WBT

Product card and catalogues

Choose product card:

Product cart

Choose product catalog:

Specification Design Guide

General catalogue - PDF
