  2. Zinc plated internally threaded M6 concrete screw anchor R-LX-I-ZP 6x35 mm - cardboard box - 100 pcs.

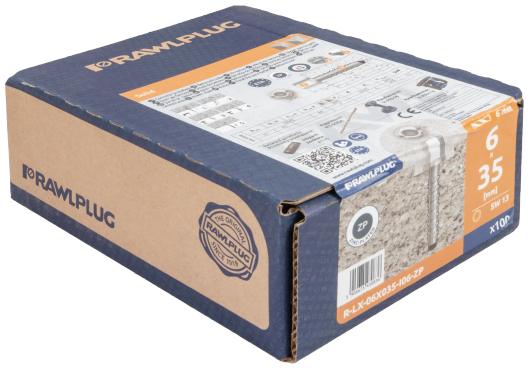

Zinc plated internally threaded M6 concrete screw anchor R-LX-I-ZP 6x35 mm - cardboard box - 100 pcs.

Solid walls
OutletNew

R-LX-06X035-I06-ZP

5906675430836

Zinc Plated Concrete Screw Anchor with internally threaded head

Define product parameters:

Diameter
Length
Coating
Thread
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    100.00 pcs.2.33 kg

  • Bulk pack

    100.00 pcs.2.33 kg

  • Pallet

    38400.00 pcs.894.72 kg

Related products

Pump for blowing drill cuttings - plastic bag - 1 pc.

Manual blow pump for cleaning dust from drilled holes

SDS plus RawlHAMMER 850 W 2.5J 26 mm Rotary hammer drill - plastic case - 1 pc.

SDS plus Rotary hammer 850W 2,5J 26 mm RAWLCASE

Aggressor SDS Plus drill bits 6x50x110 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

RT-IS Impact Socket CR-MO -13 x 18mm - plastic hanger - 1 pc.

Extended impact socket

13mm HEX Holder 1/4" Impact Socket Cr-Mo 65mm L - plastic box - 3 pcs.

Driven impact sockets

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

18V Impact driver with 210 Nm torque equipped with universal handle - inner 1/4" and external 1/2" - allows you to work with bits and caps.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Protective gloves with special cushions to reduce vibration when working with power tools

Pump for blowing drill cuttings - plastic bag - 1 pc.

Manual blow pump for cleaning dust from drilled holes

SDS plus RawlHAMMER 850 W 2.5J 26 mm Rotary hammer drill - plastic case - 1 pc.

SDS plus Rotary hammer 850W 2,5J 26 mm RAWLCASE

Aggressor SDS Plus drill bits 6x50x110 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

RT-IS Impact Socket CR-MO -13 x 18mm - plastic hanger - 1 pc.

Extended impact socket

13mm HEX Holder 1/4" Impact Socket Cr-Mo 65mm L - plastic box - 3 pcs.

Driven impact sockets

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

18V Impact driver with 210 Nm torque equipped with universal handle - inner 1/4" and external 1/2" - allows you to work with bits and caps.

R-PGL Protective gloves for power tools 10" blue - paper hanger - 1 pc.

Protective gloves with special cushions to reduce vibration when working with power tools

Features

Zinc Plated Concrete Screw Anchor with internally threaded head

  • Non-expansion functioning ensures low risk of damage to base material and makes R-LX ideal for installation near edges and adjacent anchors.
  • Suitable for standard and reduced embedment depth.
  • Time-efficient installation through streamlined procedure - simply drill and drive.
  • Unique design with patented threadform ensures high performance for relatively small hole diameter.
  • High performance in cracked and non-cracked concrete confirmed by ETA.
  • Excellent product for temporary fixing.
  • Completely removable.
  • The internal thread allows for the use of standard metric screws or threaded rods, and for surface flush removal and reuse of the fixing point. This provides great flexibility.

Product video

Kotwa mechaniczna wkręcana do betonu Rawlplug R-LX - tutorial i zasada działania

Mechanical concrete screw anchor – Rawlplug's instruction

Substrates

Cracked concrete C20/25-C50/60

Cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Unreinforced concrete

Unreinforced concrete

Reinforced concrete

Reinforced concrete

Hollow-core slab C30/37-C50/60

Hollow-core slab C30/37-C50/60

High-density natural stone

High-density natural stone

Cracked concrete C20/25-C50/60

Cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Non-cracked concrete C20/25-C50/60

Unreinforced concrete

Unreinforced concrete

Reinforced concrete

Reinforced concrete

Approved surfaces

Applications

Balustrades

Concrete structures

Formwork

Gates

Scaffolding

Seats in public facilities

Storage racks

Temporary fixings

Full list of variations

Coating
Diameter
Length
Diameter
Length
Coating
Thread
Type of package
Pieces. per pack.
Index
EAN
6 mm55 mmZP - galvanizedM8-10

Cardboard box

100R-LX-06X055-I8/10Z5906675468990

Contact with us and check out our terms of cooperation

6 mm35 mmZP - galvanizedM8-10

Cardboard box

100R-LX-06X035-I8/10Z5906675468983

Contact with us and check out our terms of cooperation

6 mm55 mmZP - galvanizedM8

Cardboard box

100R-LX-06X055-I08-ZP5906675416083

Contact with us and check out our terms of cooperation

6 mm35 mmZP - galvanizedM8

Cardboard box

100R-LX-06X035-I08-ZP5906675416069

Contact with us and check out our terms of cooperation

6 mm35 mmZP - galvanizedM10

Cardboard box

100R-LX-06X035-I10-ZP5906675416076

Contact with us and check out our terms of cooperation

6 mm55 mmZP - galvanizedM10

Cardboard box

100R-LX-06X055-I10-ZP5906675416090

Contact with us and check out our terms of cooperation

8 mm50 mmZP - galvanizedM12

Cardboard box

100R-LX-08X050-I12-ZP5906675460741

Contact with us and check out our terms of cooperation

6 mm35 mmZP - galvanizedM6

Cardboard box

100R-LX-06X035-I06-ZP5906675430836

Contact with us and check out our terms of cooperation

6 mm35 mmZP - galvanizedM6

Plastic bag

10R-S3-LXI06-0635/105906675468211

Contact with us and check out our terms of cooperation

5 mm25 mmZP - galvanizedM6

Cardboard box

100R-LX-05X025-I06-ZP5906675460734

Contact with us and check out our terms of cooperation

Substitutes

Zinc plated internally threaded M6 concrete screw anchor R-HLX-I-ZP 6x35 mm - cardboard box - 100 pcs.

Hardened induction concrete screw with internal threaded head

Zinc plated internally threaded M8 concrete screw anchor R-HLX-I-ZP 6x35 mm - cardboard box - 100 pcs.

Hardened induction concrete screw with internal threaded head

Zinc plated internally threaded M6 concrete screw anchor R-HLX-I-ZP 6x35 mm - cardboard box - 100 pcs.

Hardened induction concrete screw with internal threaded head

Zinc plated internally threaded M8 concrete screw anchor R-HLX-I-ZP 6x35 mm - cardboard box - 100 pcs.

Hardened induction concrete screw with internal threaded head

Services

Design Consulting

Design Consulting

Training at the Rawlplug Academy center

Training at the Rawlplug Academy center

EasyFix

EasyFix

Technical library

Technical library

Installation guide

Installation manual

Installation step by step

1

Drill a hole to the required diameter and depth for rebar size being used.

2

Blow out the dust at least 4 times with the hand pump.

3

Tighten the anchor into the ground to the required torque.

4

Install the fixture.

5

The anchor is properly fixed in the concrete base.

Installation data

Approvals and publications

Technical library

(4)

Documents(4)

ETA 17/0783

Download

DoP-17/0783 R-LX

Download

ETA-17/0806

Download

UKTA-22/6346

Download

Catalogues and product cards

(1)

Product cards(1)

Product card
