  1. Mainpage

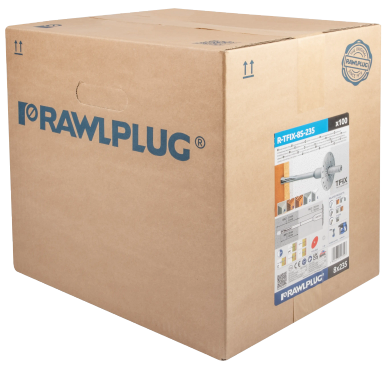

  2. R-TFIX-8S Universal Screw-In Façade Fixing with Plastic Overmoulded Screw 8 x 235mm - cardboard box - 100 pcs.

Universal
Bestseller

R-TFIX-8S-235

5906675417547

Versatile screw-in facade fixing with high performance in all base materials recommended for ETICS.

Download model Perform the calculations

Define product parameters:

Length
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    100.00 pcs.5.04 kg

  • Bulk pack

    100.00 pcs.5.04 kg

  • Pallet

    4000.00 pcs.201.48 kg

Related products

Insulation retaining plate R-KWL 140 mm, polyamide - cardboard box - 200 pcs.

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 250 x 310mm, PGM Approved - plastic hanger - 1 pc.

R-TFIX-CAP Polystyrene cap EPS 63x10 mm, white - cardboard box - 100 pcs.

Insulation retaining plate R-KWL 90 mm, polyamide - cardboard box - 200 pcs.

Brickdrill SDS PLUS non-impact drill bits 8.0x310 m - plastic hanger - 1 pc.

R-TFIX CAP For Mineral Wool, 63/10 Brown - cardboard box - 100 pcs.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

Aggressor SDS Plus drill bits 8x250x310 mm - plastic hanger - 1 pc.

Counterbore cutter for EPS and mineral wool 63x10 mm - cardboard box - 1 pc.

Insulation retaining plate R-KWX 110 mm with perforator - cardboard box - 100 pcs.

R-TFIX CAP For EPS, 63/10mm grey - cardboard box - 100 pcs.

R-TFIX-8S Setting Tool, TX40 For Surface Installation - cardboard box - 1 pc.

Insulation retaining plate R-KWL 140 mm, polyamide - cardboard box - 200 pcs.

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 250 x 310mm, PGM Approved - plastic hanger - 1 pc.

R-TFIX-CAP Polystyrene cap EPS 63x10 mm, white - cardboard box - 100 pcs.

Insulation retaining plate R-KWL 90 mm, polyamide - cardboard box - 200 pcs.

Brickdrill SDS PLUS non-impact drill bits 8.0x310 m - plastic hanger - 1 pc.

R-TFIX CAP For Mineral Wool, 63/10 Brown - cardboard box - 100 pcs.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

Aggressor SDS Plus drill bits 8x250x310 mm - plastic hanger - 1 pc.

Counterbore cutter for EPS and mineral wool 63x10 mm - cardboard box - 1 pc.

Insulation retaining plate R-KWX 110 mm with perforator - cardboard box - 100 pcs.

R-TFIX CAP For EPS, 63/10mm grey - cardboard box - 100 pcs.

R-TFIX-8S Setting Tool, TX40 For Surface Installation - cardboard box - 1 pc.

Features

Versatile screw-in facade fixing with high performance in all base materials recommended for ETICS.

  • Unique design allows for high load-bearing capacities. This reduces the quantity of fixings required per square metre of insulation.
  • Pre-assembled screw saves time and labour.
  • Quick and easy installation in all substrates (categories A, B, C, D, E).
  • Unique sleeve compression zone for precision installations.
  • Plate stiffness (value 0.5 kN/mm) ensures smooth elevation surface and stable insulation system.
  • The long plastic overmoulding on the R-TFIX-8S screw minimises thermal bridging (value 0,001-0,002 W/K), contributing to energy-saving benefits.
  • The shortest embedment depth is 25 mm at the maximum strength parameters.

R-TFIX-8S: countersunk installation in EPS (R-TFIX TOOL GREEN)

R_TFIX_8S_monta_powierzchniowywwe_niemineralnej

R_TFIX_8S_monta_powierzchniowywstyropianieEPS

Facade fixing R-TFIX 8S and R-TFIX-8S-...-X of Rawlplug

rawlplug_screwin_fac02

tfix8s_universal_screw

Krok_po_kroku_jak_montowac_kolki_fasadowe_wkrecane

Rawlplug_Academy_jaki_lacznik_fasadowy_wybrac

Concrete C12/15-C50/60 (A)

Concrete C12/15-C50/60 (A)

External wall panel of concrete C16/20 – C50/60 (A)

External wall panel of concrete C16/20 – C50/60 (A)

Solid brick (B)

Solid brick (B)

Solid sand-lime brick (B)

Solid sand-lime brick (B)

Hollow brick (C)

Hollow brick (C)

Hollow sand-lime brick (C)

Hollow sand-lime brick (C)

Lightweight concrete block (C)

Lightweight concrete block (C)

Hollow lightweight concrete block (D)

Hollow lightweight concrete block (D)

Autoclaved aerated concrete (E)

Autoclaved aerated concrete (E)

Approved surfaces

Facades - thermal insulation systems

Thermal isolation

Length
Packaging and quantity
Index
EAN
Catalog price for pack. net

Universal screw-in facade fixings without plastic overmoulded screw R-TFIX-8S-X 8x235 mm - cardboard box - 100 pcs.

Universal screw-in facade fixings without plastic overmoulded screw R-TFIX-8S-X 8x235 mm - cardboard box - 100 pcs.

Rawlplug on historic walls of the Żup Krakowski Museum in Wieliczka!

See more

Seminar for architects in Estonia - theme: facades

See more

Rawlplug on historic walls of the Żup Krakowski Museum in Wieliczka!

See more

Seminar for architects in Estonia - theme: facades

See more

Installation manual

Installation step by step

1

Drill a hole to the required diameter and depth for rebar size being used.

2

Clean drilled hole 3 times.

3

Place the T40 mounting tip in the recess of the plastic part of the R-TFIX-8S screw, insert the pin into the drilled hole.

4

When tightening, press the tip, keeping it precisely perpendicular to the elevation.

5

Tighten the plug screw until the appropriate embedding depth is reached (the plate should be on the surface with a thermal insulation layer).

6

Correctly installed R-TFIX-8S.

Installation data

Technical library

(9)

Technical assessments(3)

ETA-17/0161 (2022-07-29)

Download

KOT-2021/1550 (2021-03-09)

Download

UKTA-22/6348 (2022-11-11)

Download
Declarations(2)

DoP-17/0161 R-TFIX-8S (ETA-17/0161)

Download

UKTA-DoP-22/6348-R-TFIX-8S (2023-10-02)

Download
Certificates(3)

1488-CPR-0544/Z (ETA-17/0161)

Download

020_UWB-1064/Z (KOT-2021/1550-1)

Download

EPD-R-TFIX-8S/8SX (2025-11-03)

Download
Documents(1)

KDWU_2021_1550_2_R_TFIX_8S_2026_03_17_PL

Download

Catalogues and product cards

(5)

Product cards(1)

Product card

Download
Catalogues(4)

Catalogue Offer (overview) - EN

Download

Specification Design Guide

Download

General Catalogue EN 2026/27

Download

Leaflet R-TFIX-8S_SX

Download
