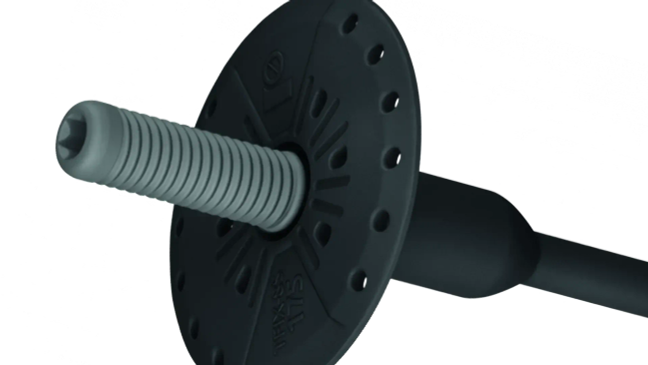

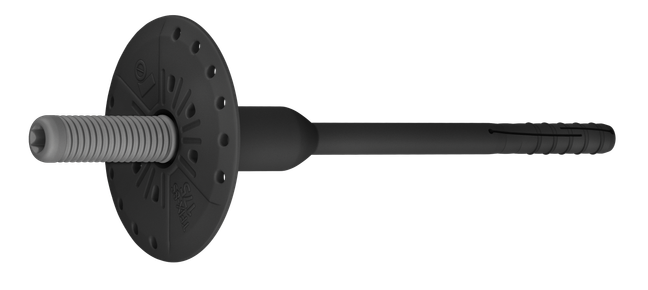

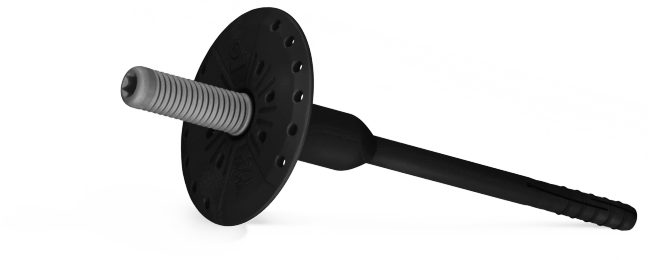

  2. Universal screw-in facade fixings with plastic overmoulded screw R-TFIX-8S-UV 255mm, black, UV resistance - cardboard box - 100 pcs.

Universal screw-in facade fixings with plastic overmoulded screw R-TFIX-8S-UV 255mm, black, UV resistance - cardboard box - 100 pcs.

Universal
New

R-TFIX-8S-255-UV

5906675559551

Certified facade fixings for mechanical fastening of insulation boards in ventilated facade systems.

Define product parameters:

Length
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    100.00 pcs.

  • Bulk pack

    100.00 pcs.

  • Pallet

    4000.00 pcs.

Related products

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 250 x 310mm, PGM Approved - plastic hanger - 1 pcs.

High-quality SDS plus drill bits for drilling in reinforced concrete

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

18V Impact driver with 210 Nm torque equipped with universal handle - inner 1/4" and external 1/2" - allows you to work with bits and caps.

Aggressor SDS Plus drill bits 8x250x310 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Brickdrill SDS PLUS non-impact drill bits 8.0x310 m - plastic hanger - 1 pc.

Drill bits for non-impact drilling in ceramic materials

R-TFIX-8S Setting Tool, TX40 For Surface Installation - cardboard box - 1 pcs.

TX40 Setting tool with integrated disc for surface installation of screw-in fixing R-TFIX-8S

Insulation retaining plate R-KWL-UV 140 mm, polyamide, black, UV resistance - cardboard box - 200 pcs.

Insulation retaining plate for use in combination with facade fixings from R-TFIX-8S-UV.

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 250 x 310mm, PGM Approved - plastic hanger - 1 pcs.

High-quality SDS plus drill bits for drilling in reinforced concrete

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

18V SDS plus Cordless hammer drill "RawlHammer"

18 V RawlWRENCH 210 Nm Impact driver, Set with RawlCASE, 2 batteries 5.0 Ah and 6.5A RawlCHARGER - plastic case - 1 pc.

18V Impact driver with 210 Nm torque equipped with universal handle - inner 1/4" and external 1/2" - allows you to work with bits and caps.

Aggressor SDS Plus drill bits 8x250x310 mm - plastic hanger - 1 pc.

Drill bits SDS plus for fast drilling in concrete

Brickdrill SDS PLUS non-impact drill bits 8.0x310 m - plastic hanger - 1 pc.

Drill bits for non-impact drilling in ceramic materials

R-TFIX-8S Setting Tool, TX40 For Surface Installation - cardboard box - 1 pcs.

TX40 Setting tool with integrated disc for surface installation of screw-in fixing R-TFIX-8S

Insulation retaining plate R-KWL-UV 140 mm, polyamide, black, UV resistance - cardboard box - 200 pcs.

Insulation retaining plate for use in combination with facade fixings from R-TFIX-8S-UV.

Features

Certified facade fixings for mechanical fastening of insulation boards in ventilated facade systems.

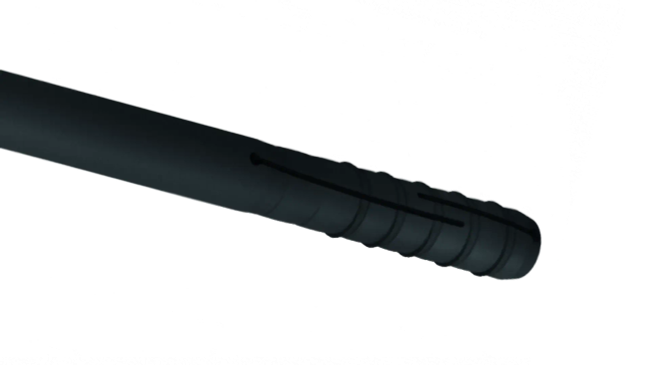

  • The sleeve is made of UV-resistant polypropylene, so it does not degrade under the influence of sunlight and atmospheric conditions.
  • The high shear and bending load-bearing capacity, ensuring the transfer of loads from thermal insulation boards, was confirmed in the National Technical Assessment. This allows you to professionally design the appropriate number of connectors per m² in ventilated facade systems.

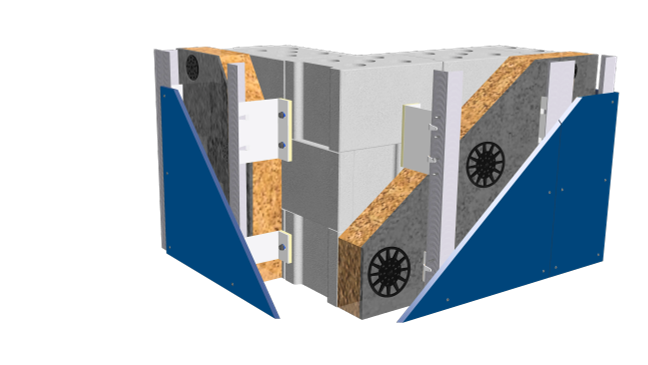

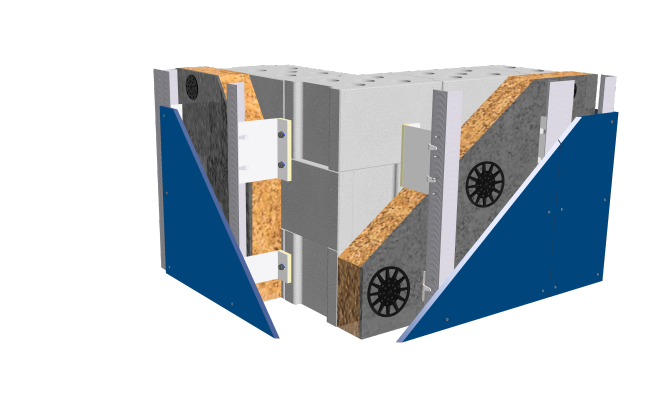

  • The black sleeve combined with the black R-KWL insulation retaining plate with a diameter of 140 mm ensures no visible insulation fixing points on ventilated facades.
  • Quick and easy installation in all substrates (categories A, B, C, D, E).
  • The long plastic overmoulding on the R-TFIX-8S screw minimises thermal bridging (value 0,001-0,002 W/K), contributing to energy-saving benefits.
  • Plate stiffness (value 0.5 kN/mm) ensures smooth elevation surface and stable insulation system.
  • Unique design allows for high load-bearing capacities. This reduces the quantity of fixings required per square metre of insulation.
  • The shortest embedment depth is 25 mm at the maximum strength parameters.

Product video

Screw-in facade fixings R-TFIX8S-UV

Substrates

Concrete C12/15-C50/60 (Use category A)

Concrete C12/15-C50/60 (Use category A)

External wall panel of concrete C16/20 – C50/60 (Use category A)

External wall panel of concrete C16/20 – C50/60 (Use category A)

Solid brick (Use category B)

Solid brick (Use category B)

Solid sand-lime brick (Use category B)

Solid sand-lime brick (Use category B)

Hollow brick (Use category C)

Hollow brick (Use category C)

Vertically-perforated clay block (Use category C)

Vertically-perforated clay block (Use category C)

Hollow sand-lime brick (Use category C)

Hollow sand-lime brick (Use category C)

Hollow lightweight concrete block (Use category D)

Hollow lightweight concrete block (Use category D)

Autoclaved aerated concrete (Use Category E)

Autoclaved aerated concrete (Use Category E)

Lightweight concrete block (Use category C)

Lightweight concrete block (Use category C)

Approved surfaces

Applications

Facades - thermal insulation systems

Substitutes

R-TFIX-8S Universal Screw-In Façade Fixing with Plastic Overmoulded Screw 8 x 255mm - cardboard box - 100 pcs.

Versatile screw-in facade fixing with high performance in all base materials recommended for ETICS

Universal screw-in facade fixings with plastic overmoulded screw R-TFIX-8S-A2 8x255 - cardboard box - 100 pcs.

Versatile screw-in facade fixing with high performance in all base materials recommended for ETICS

Universal screw-in facade fixings without plastic overmoulded screw R-TFIX-8S-X 8x255 mm - cardboard box - 100 pcs.

The most effective screw-in facade fixing for countersunk installation with the possibility of surface mounting

R-TFIX-8S Universal Screw-In Façade Fixing with Plastic Overmoulded Screw 8 x 255mm - cardboard box - 100 pcs.

Versatile screw-in facade fixing with high performance in all base materials recommended for ETICS

Universal screw-in facade fixings with plastic overmoulded screw R-TFIX-8S-A2 8x255 - cardboard box - 100 pcs.

Versatile screw-in facade fixing with high performance in all base materials recommended for ETICS

Universal screw-in facade fixings without plastic overmoulded screw R-TFIX-8S-X 8x255 mm - cardboard box - 100 pcs.

The most effective screw-in facade fixing for countersunk installation with the possibility of surface mounting

Services

Design Consulting

Design Consulting

E-learning training

E-learning training

Learn more
Technical Support 2

Technical Support 2

Rawlplug Academy

Rawlplug Academy

Installation guide

Installation manual

Installation step by step

1

Drill a hole to the required diameter and depth for rebar size being used.

2

Clean drilled hole 3 times.

3

Place the T40 mounting tip in the recess of the plastic part of the R-TFIX-8S-UV screw, insert the pin into the drilled hole.

4

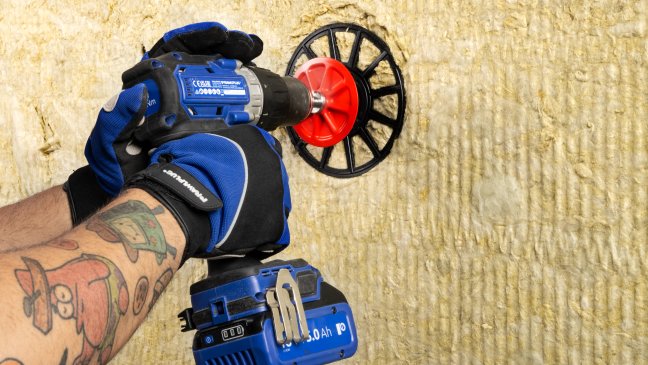

When tightening, press the tip, keeping it precisely perpendicular to the elevation.

5

Tighten the plug screw until the appropriate embedding depth is reached (the plate should be on the surface with a thermal insulation layer).

6

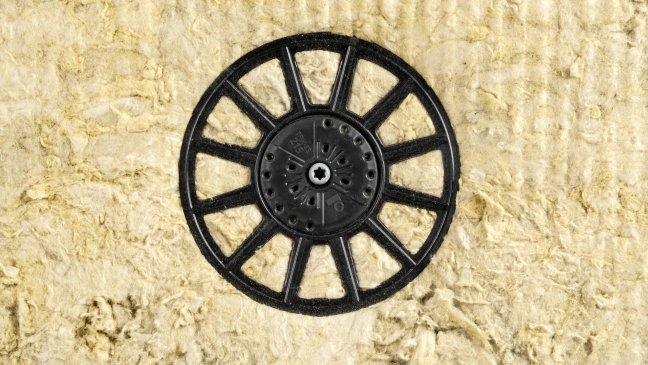

Correctly installed R-TFIX-8S-UV
