  2. Universal screw-in facade integrated cutter 8.0x435 mm - cardboard box - 50 pcs.

Universal
Outlet

TFIX-8ST-435-ECO

5906675118802

Rawlplug

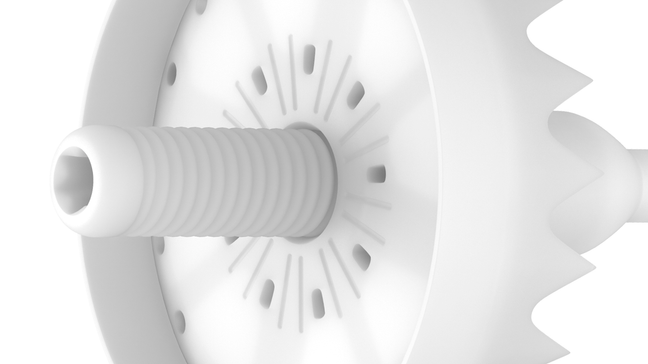

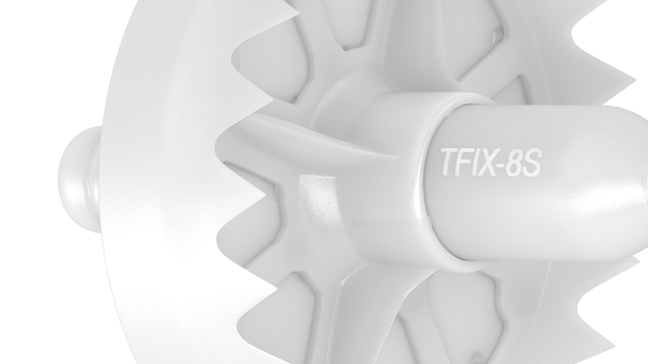

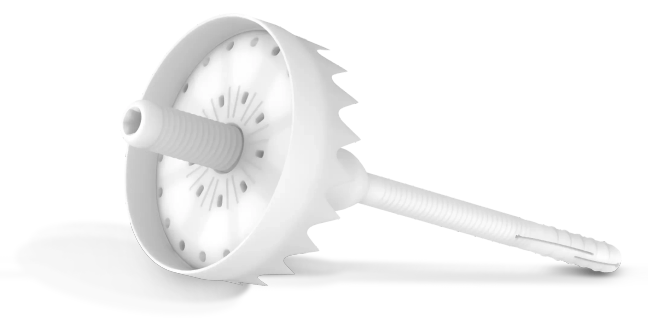

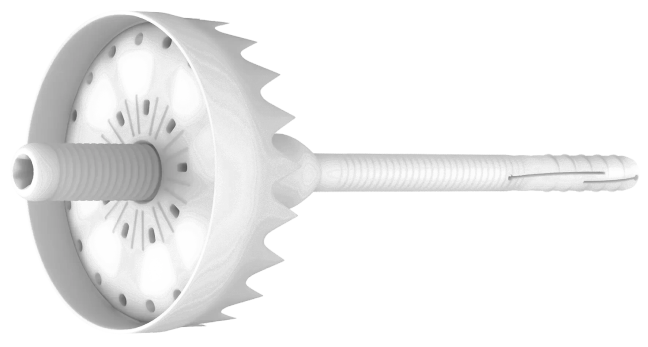

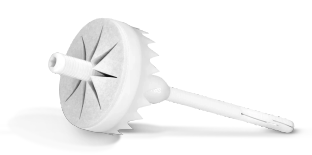

Thermal insulation combination screw fixing that can be countersunk together with the integrated perforator for installation with insulation cap

Define product parameters:

Length
Packaging and quantity
Weight and bulk packaging

  • Unit pack

    50.00 pcs.5.22 kg

  • Bulk pack

    50.00 pcs.5.22 kg

  • Pallet

    1200.00 pcs.125.38 kg

Related products

Insulation retaining plate R-KWL 140 mm, polyamide - cardboard box - 200 pcs.

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 200 x 260mm, PGM Approved - plastic hanger - 1 pc.

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 150 x 210mm, PGM Approved - plastic hanger - 1 pc.

R-TFIX-CAP Polystyrene cap EPS 63x10 mm, white - cardboard box - 100 pcs.

Brickdrill SDS PLUS non-impact drill bits 8.0x260 m - plastic hanger - 1 pc.

Insulation retaining plate R-KWL 90 mm, polyamide - cardboard box - 200 pcs.

Aggressor SDS Plus drill bits 8x150x210 mm - plastic hanger - 1 pc.

R-TFIX CAP For Mineral Wool, 63/10 Brown - cardboard box - 100 pcs.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

Aggressor SDS Plus drill bits 8x200x260 mm - plastic hanger - 1 pc.

Counterbore cutter for EPS and mineral wool 63x10 mm - cardboard box - 1 pc.

Insulation retaining plate R-KWX 110 mm with perforator - cardboard box - 100 pcs.

Insulation retaining plate R-KWL 140 mm, polyamide - cardboard box - 200 pcs.

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 200 x 260mm, PGM Approved - plastic hanger - 1 pc.

Rawlplug SDS Plus Rebar Drill Bit 8.0 x 150 x 210mm, PGM Approved - plastic hanger - 1 pc.

R-TFIX-CAP Polystyrene cap EPS 63x10 mm, white - cardboard box - 100 pcs.

Brickdrill SDS PLUS non-impact drill bits 8.0x260 m - plastic hanger - 1 pc.

Insulation retaining plate R-KWL 90 mm, polyamide - cardboard box - 200 pcs.

Aggressor SDS Plus drill bits 8x150x210 mm - plastic hanger - 1 pc.

R-TFIX CAP For Mineral Wool, 63/10 Brown - cardboard box - 100 pcs.

18 V RawlHAMMER 2.0J 20mm Cordless rotary hammer drill, Set with RawlCASE, 2 batteries 5.0Ah and 6.5 A RawlCHARGER - plastic case - 1 pc.

Aggressor SDS Plus drill bits 8x200x260 mm - plastic hanger - 1 pc.

Counterbore cutter for EPS and mineral wool 63x10 mm - cardboard box - 1 pc.

Insulation retaining plate R-KWX 110 mm with perforator - cardboard box - 100 pcs.

Features

Thermal insulation combination screw fixing that can be countersunk together with the integrated perforator for installation with insulation cap

  • Unique design allows for high load-bearing capacities. This reduces the quantity of fixings required per square metre of insulation.
  • The long plastic overmoulding on the TFIX-8S screw minimises thermal bridging (value 0.002W/K), contributing to energy-saving benefits.
  • Unique sleeve compression zone for precision installations.
  • Countersunk installation (with post-installed insulation cap) reduces heat transmission and results in a homogenous insulation surface.
  • Accurate countersunk setting automatically sets the fixing flush with the insulation layer.
  • Plate stiffness (value 0.5 kN/mm) ensures smooth elevation surface and stable insulation system.
  • Pre-assembled screw saves time and labour.
  • The shortest embedment depth is 25 mm at the maximum strength parameters.
  • Simple countersunk installation in all substrates (A,B,C,D,E).

Concrete C12/15-C50/60 (A)

Concrete C12/15-C50/60 (A)

Solid brick (B)

Solid brick (B)

Solid sand-lime brick (B)

Solid sand-lime brick (B)

Vertically-perforated clay block (C)

Vertically-perforated clay block (C)

Hollow sand-lime brick (C)

Hollow sand-lime brick (C)

Hollow lightweight concrete block (D)

Hollow lightweight concrete block (D)

Aerated concrete block (D)

Aerated concrete block (D)

Hollow brick (C)

Hollow brick (C)

Lightweight concrete block (C)

Lightweight concrete block (C)

Lightweight concrete

Lightweight concrete

Approved surfaces

Facades - thermal insulation systems

Length
Packaging and quantity
Index
EAN
Catalog price for pack. net

Installation manual

Installation step by step

1

Hammer into the ground with a hammer.

2

Apply steady axial pressure, ensuring the disc of the setting tool is kept perpendicular to the fixing axis.

3

Steadily drive in the screw with high revs until fixing is secure (when disc touches insulation surface).

4

After fixing the connector, close the hole with the plug.

5

Correctly fastened pin.

Installation data
